EX-TREME 330 3-D ARF

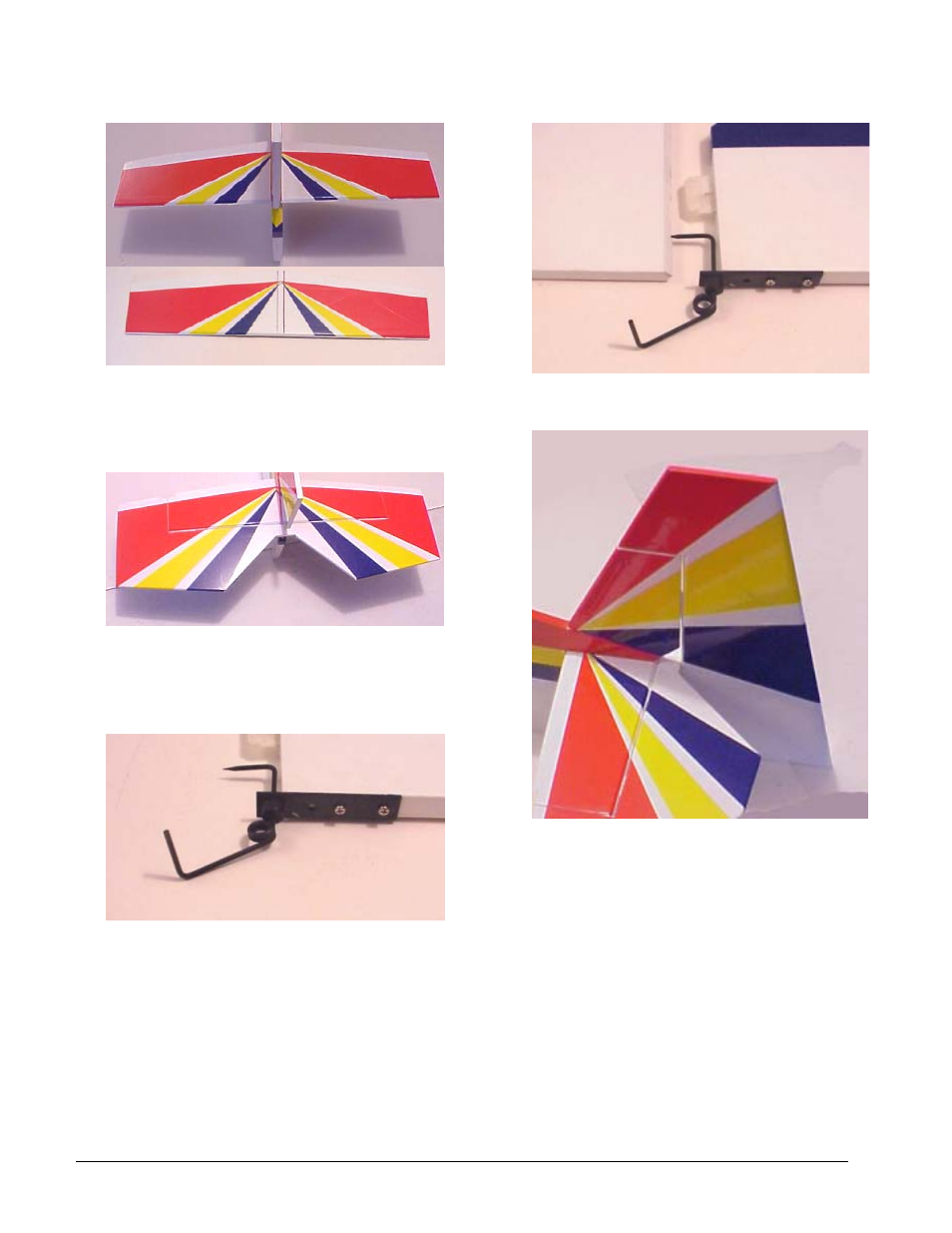

4. Test fit the horizontal stab in the rear of the fuse.
Center it the same way you did the wing using a
ruler and make sure it square to the wing, then
mark and trim the covering from the joint. Glue
in place with 30 minute z poxy.
5. Test fit the elevator on the stab with 4 CA hinges,
then glue in place with 1 or 2 drops of thin Zap
on each side of each hinge. Clean any CA runs
with
acetone.
6. Install the tail wheel bracket on the bottom of the
fuse with two 2mm x10mm screws. Align the
wire with the back of the fuse.
7. Recess the bottom of the tail wheel bracket to
accept the steering arm for the wheel.
8. Install the rudder on the fuse with 30 minute
zpoxy on the tail wheel bracket, then 2 CA
hinges and pink zap.
