EX-TREME 330 3-D ARF
tube.

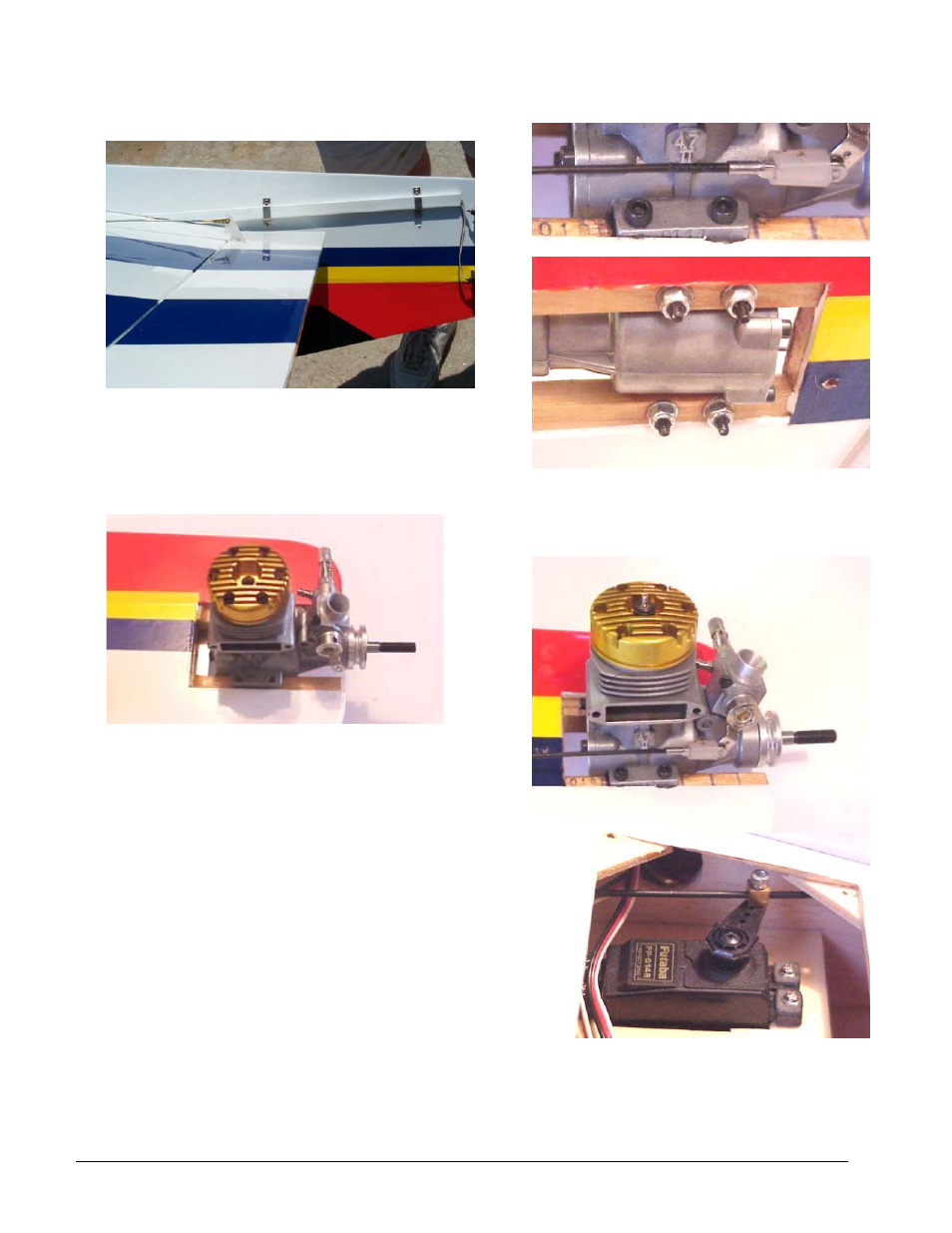

25. Attach the tube to the side of the fuselage with
the two brackets and 4 sheet metal screws. You
can now run you wires from the rear servos
through the tube into the wing.
26. Trial fit your engine on the right side of the fuse.
You can open the rails up slightly if needed.
Slide the engine forward so you have at least ¼”
clearance from the front of the prop hub to the
front of the fuse. Mark the location, remove your
motor, then drill for the 3mm engine mounting
bolts.
27. Mount your engine to the fuse with 3mm x
20mm bolts, washers, and lock nuts. There is no
need to add any washers under the motor as the
right thrust is built into the motor mounts.
28. Prepare and install a servo wheel on the throttle
servo as was done with the control surfaces.
Make sure your servo is at low position and the
travel matches up with the travel of the
© 2002 Carl Goldberg Products, Inc.
Page - 8
