9
30% Ultimate ARF

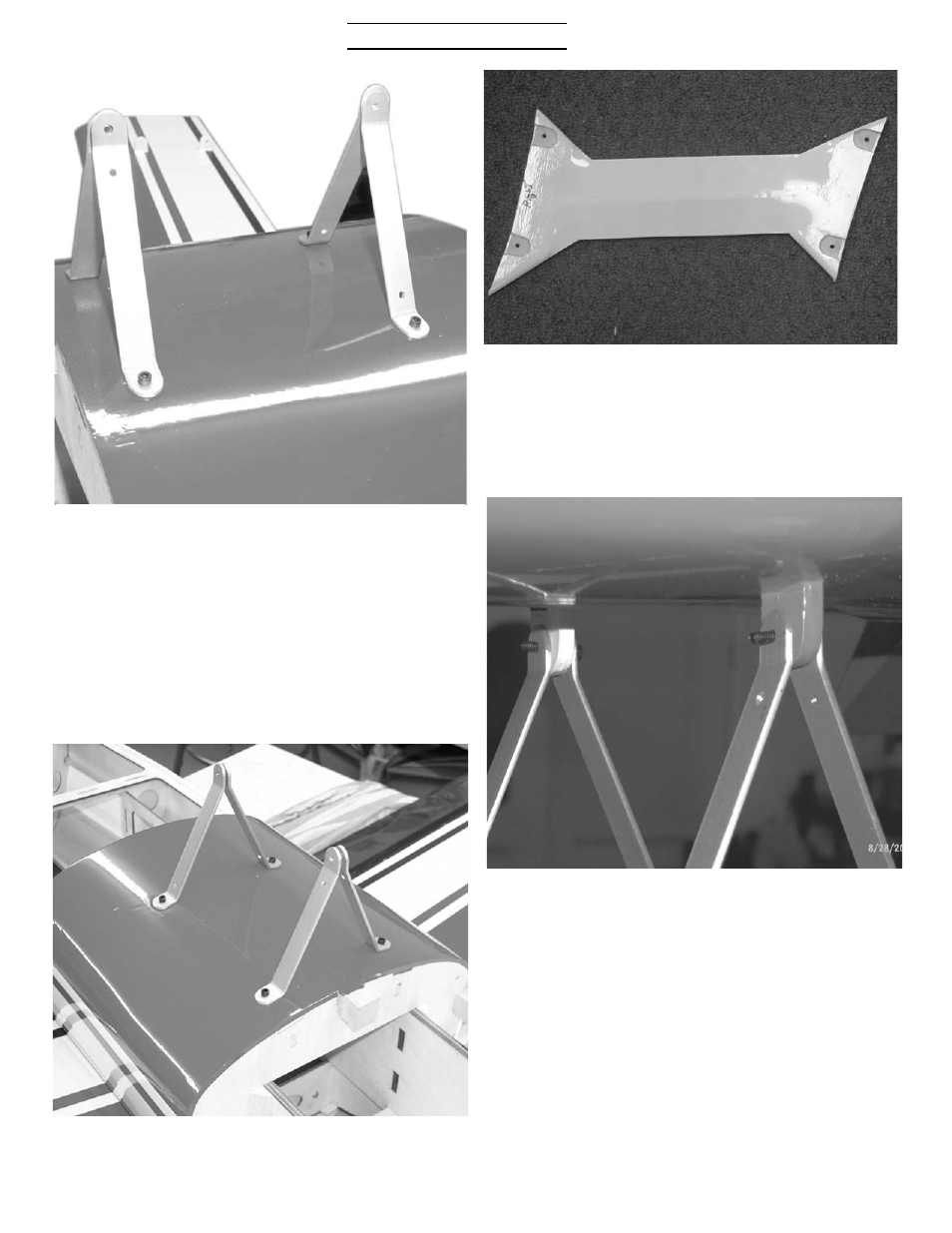

Take a straight pin and stick through
the blind nut inside the fuselage to
locate the holes for the struts.
Using the four 6-32x3/4” socket
head cap screws, mount the struts to
the top of the fuselage, short ones in
front longer ones in rear. Do not
tighten the screws down tight at this
time. Leave them loose until the top
wing is mounted.
Locate the two I-Struts and the eight
6-32x3/4” socket head cap screws.
The I-Struts are identified left and
right, top and bottom with small
stickers.
Fit the tabs on the top wing between
the brackets front and rear and
install a 6-32x3/4” socket head cap
screw through the holes. Do not
install nuts now.
