21
30% Ultimate ARF

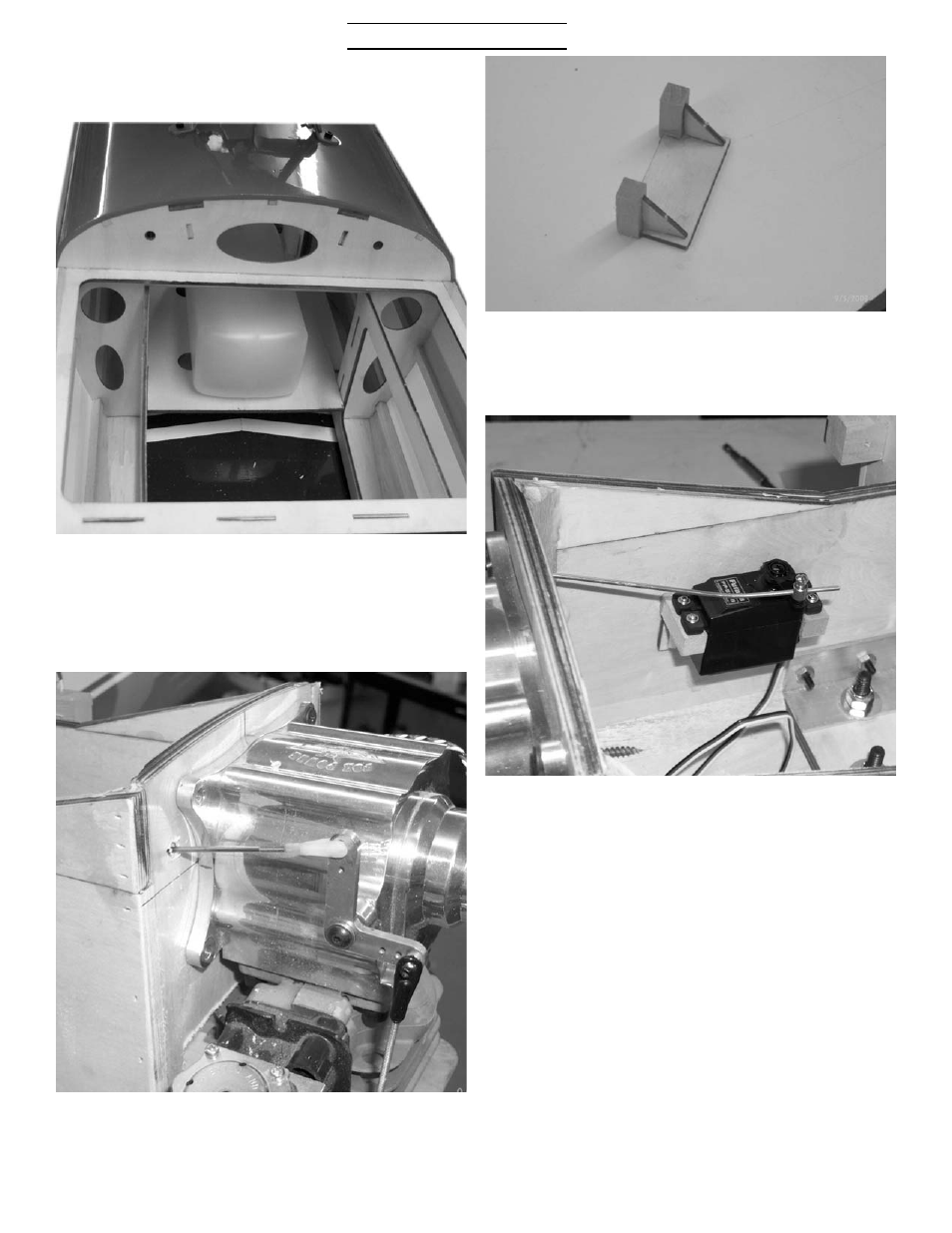

Place the tank between the holes
and use the two 14” tie wraps to
secure the tank to the mount.
Servo mounting
Locate the laser cut throttle servo
mount and the two 3/8” x1” bass
wood blocks. Epoxy the blocks to the
plate with the triangles underneath.
Epoxy the servo mount to the motor
box side in the proper position to line
up with your throttle arm. Put the E-Z
connector on the output arm of the
servo and connect the 2-56 push rod.
Locate the 2-56x10” throttle
pushrod and nylon snap link. Drill a
hole in the firewall in line with your
throttle arm and connect pushrod.
