30% Ultimate ARF

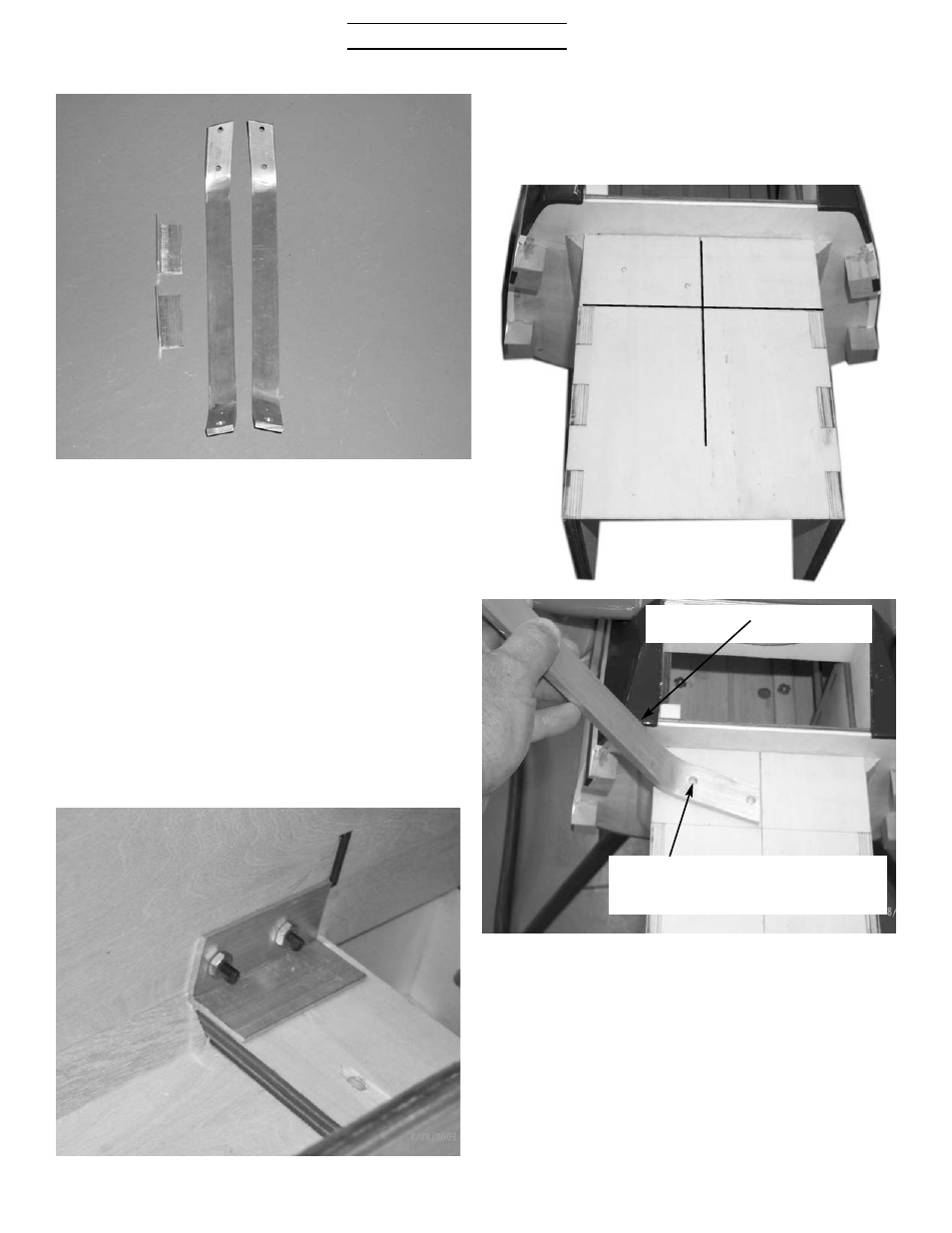

Locate the two landing gear legs
and the two 1”aluminum angles.
Using four 6-32x3/4” socket head
cap screws, four #6 washers, and
four 6-32 nuts, mount the aluminum
angles flush against the landing
gear plate and the motor box sides.
Drill two 9/64” holes on each side
through the motor box sides and cen-
tered up on the aluminum bracket. It
may be necessary to remove glue
build up in the corner and file the
sharp edge off the corner of the alu-
minum bracket to make it fit flush.
Landing Gear Turn the plane upside down and draw
a line down the center of the motor
box and along the front edge of the
gear plate
gear 1/8” off bulkhead on
corner
hole centered over aluminum
bracket
