9. SPARE PARTS
CAUTION!
Risk of injury and/or damage by the use of incorrect
parts!
Incorrect accessories and unsuitable spare parts may cause
injuries and damage the device and the surrounding area.
• Use only original accessories and original spare parts
from Bürkert.
9.1. Ordering spare parts
Replacement part sets
Order spare-part sets by quoting:
• Order the coil set by quoting the identification number of
the device.
• For wearing part sets see Chapter 9.2.2.Wearing-parts set.
• For housing spare parts see Chapter 9.2.1.Spare parts:
Housing.
english 21

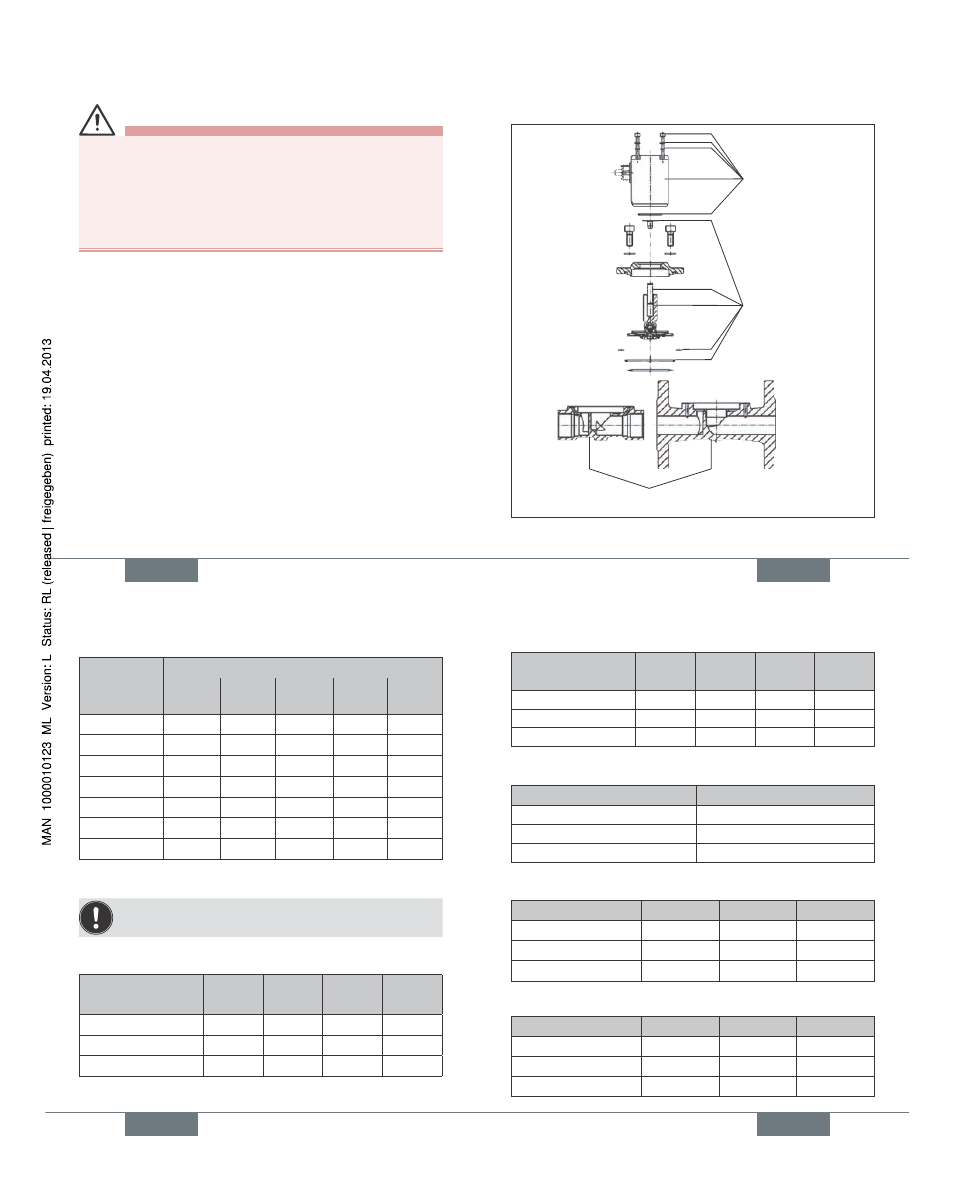

9.2. Overview of replacement spare
sets
Coil set
Wearing-parts set
Housing
Fig. 2: Overview of replacement spare sets
english
22
9.2.1. Spare parts: Housing
Orifice/
Port
connection
Material / Type of connection
MS
G
MS
NPT
VA
G
VA
NPT
GG
Flange
DN12, 1/2“ 605796 612061 607982 612060 -
DN20, 3/4“ 621546 621547 623912 623913 -
DN25, 1“ 621548 621549 623916 623917 615902
DN32, 1 1/4“ 613365 614195 - - 614214
DN40, 1 1/2“ 613364 614223 - - 614236
DN50, 2“ 614245 614246 - - 614259
DN65, 2 1/2“ 614268 614269 - - -
9.2.2. Wearing-parts set
The number of parts in the wearing part set may vary
depending on the nominal size.
Housing material: MS, GG; Frequency 50 Hz, 60 Hz*
Seal material DN12 DN20 DN25 DN32
DN40
NBR 624347 624350 624353 015187
FKM 624348 624351 624354 015188
EPDM 624349 624352 624355 015189
* DN12, DN20, DN25
english 23
Housing material: MS, GG; Frequency UC
Seal material DN12 DN20 DN25 DN32
DN40
NBR 015160 015169 015178 015190
FKM 015161 015170 015179 015191
EPDM 015162 015171 015180 015192
Housing material: MS, GG; Frequency DC, UC
Seal material DN50/65
NBR 015193
FKM 015194
EPDM 015195
Housing material: VA; Frequency 50 Hz, 60 Hz
Seal material DN12 DN20 DN25
NBR 015163 015172 015181
FKM 015164 015173 015182
EPDM 015165 015174 015183
Housing material: VA; Frequency UC
Seal material DN12 DN20 DN25
NBR 015166 015175 015184
FKM 015167 015176 015185
EPDM 015168 015177 015186
english
Type 0290
