YX-1024 Matrix Switching System—User Manual
3

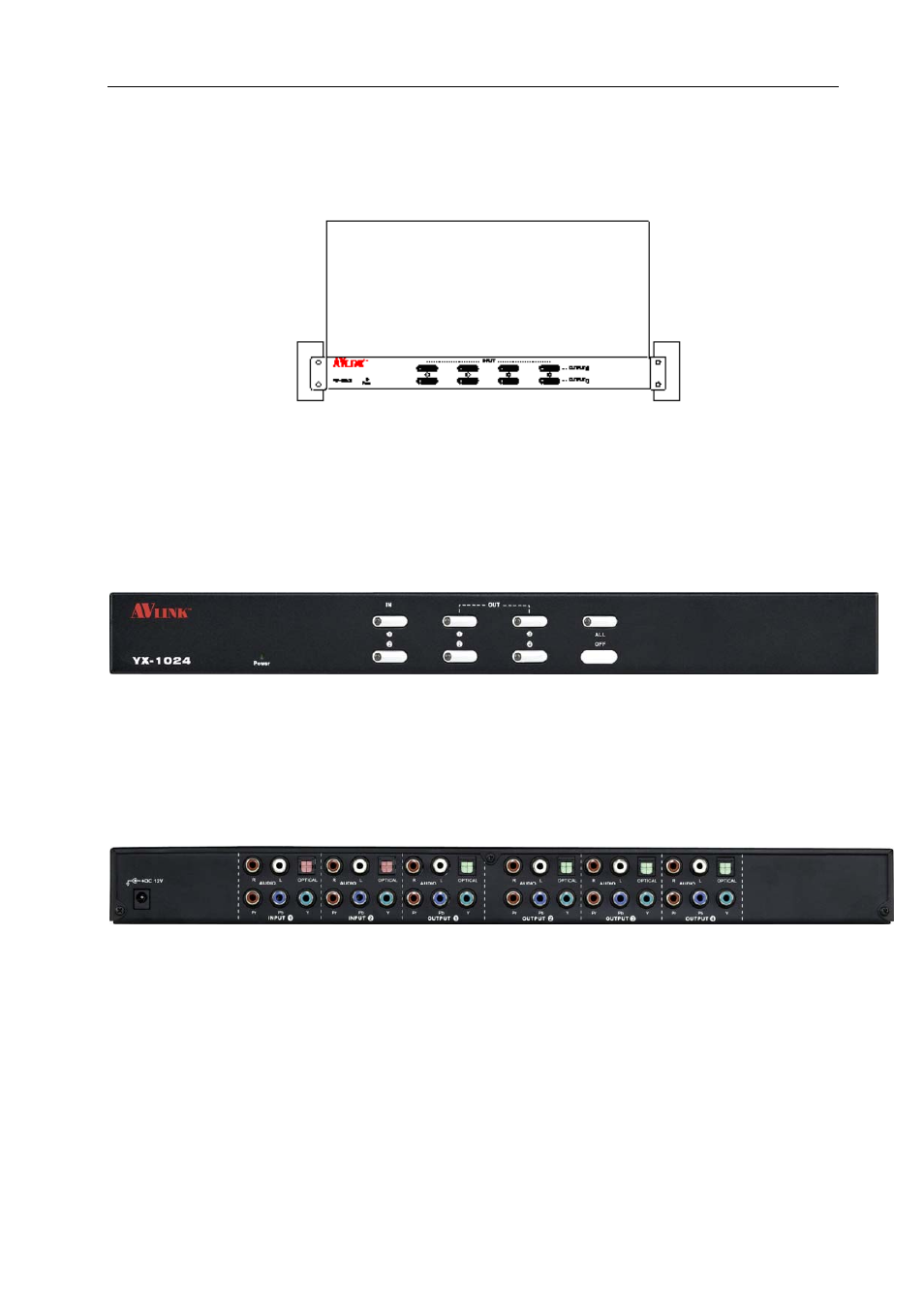

2.0 YX Matrix Host Installation
The YX-1024 Matrix Host has a black metallic housing. It can be placed on a sturdy desk
or installed on a 19-in rack. See Figure 2-1 below:
Figure 2-1 Installing the YX-1024 Matrix Host on a Standard Rack
3.0 YX Matrix System Front/Rear Panels
3.0.1 YX-1024 Front Panels
1. Power LED
2. Push-button Switches (Manual type)
3. Port LEDs
3.0.2 YX-1024 Rear Panels
1. Power Jack
2. Video Input
3. Stereo Unbalanced Audio Input
4. Digital Optical Audio Input
5. Video Output 2
6. Stereo Unbalanced Audio Output
7. Digital Optical Audio Output
8. Video Output
9. Stereo Unbalanced Audio Output
10. Digital Optical Audio Output
