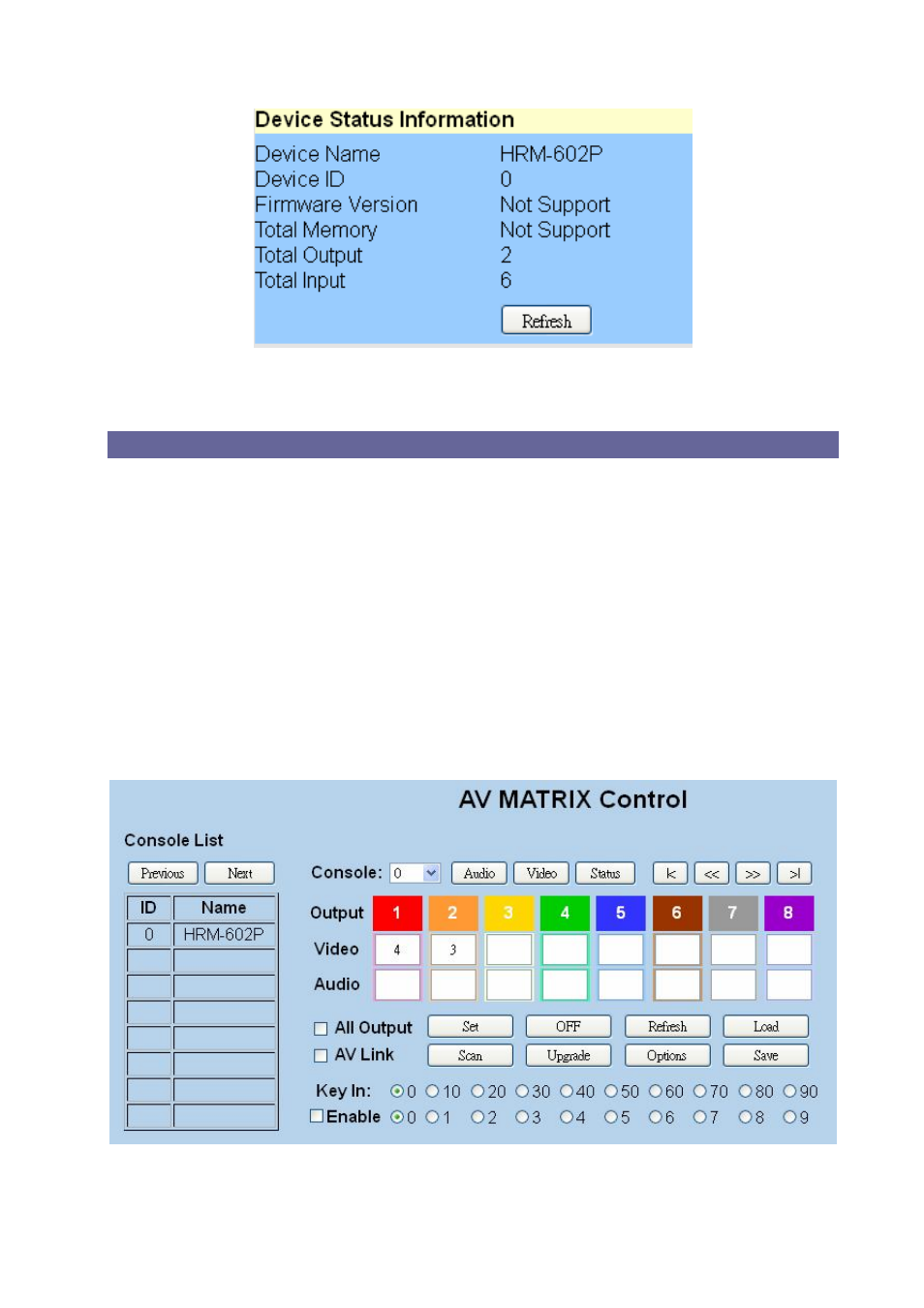

Figure 7-12 Device Status Information
7.3.2 LAN Main Operation
Refer to the main configuration window, for the basic operation is described as below:
In PIP mode 0, only output 1 is available.
Switch channel In PIP mode 1~6:
- Output 1 is Main channel of the HRM-602P.
- Output 2 is Slave channel of the HRM-602P.
Example: Now there is an HRM-602P Switcher having all the input/output ports properly
connected to the equipment. If you want to set channel 4 input to output 1; channel 3
inputs to output 2.
Figure 7-13 AV Matrix Control
