6.3 IR EXT Connection
The HRM-602P Switcher provides you an IR receiver for more convenient to react to the
controller. If it is difficult for you to aim at IR receiver on the front panel due to the location
of Switcher, please connect it to the IR EXT port located on the rear panel for optional
position.

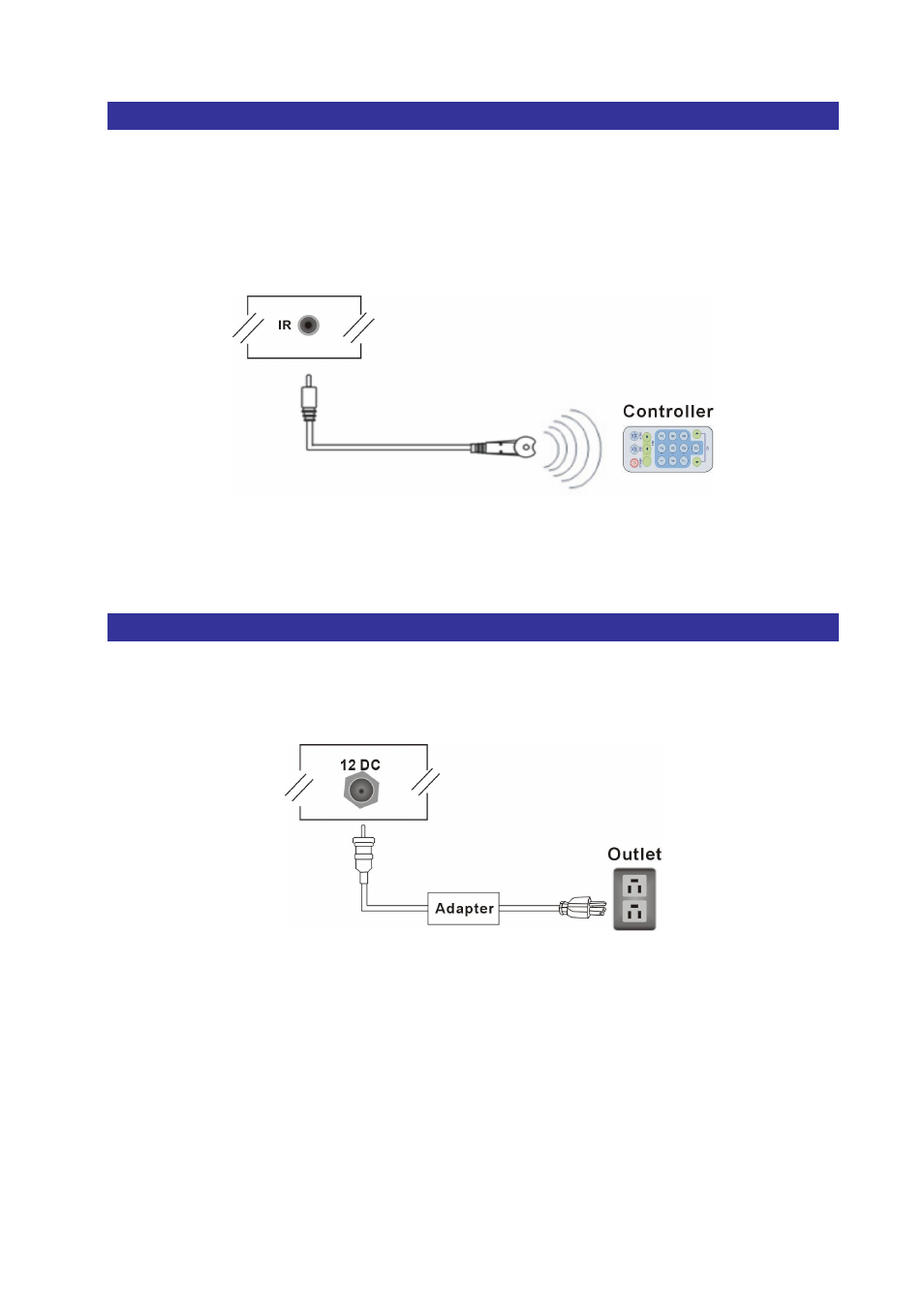

Figure 6-6 IR Extended Aiming
6.4 Power Connection
Use the included power cord to connect from the power port on the rear panel of the
HRM-602P Switcher to the outlet.
Figure 6-7 Power Connection
