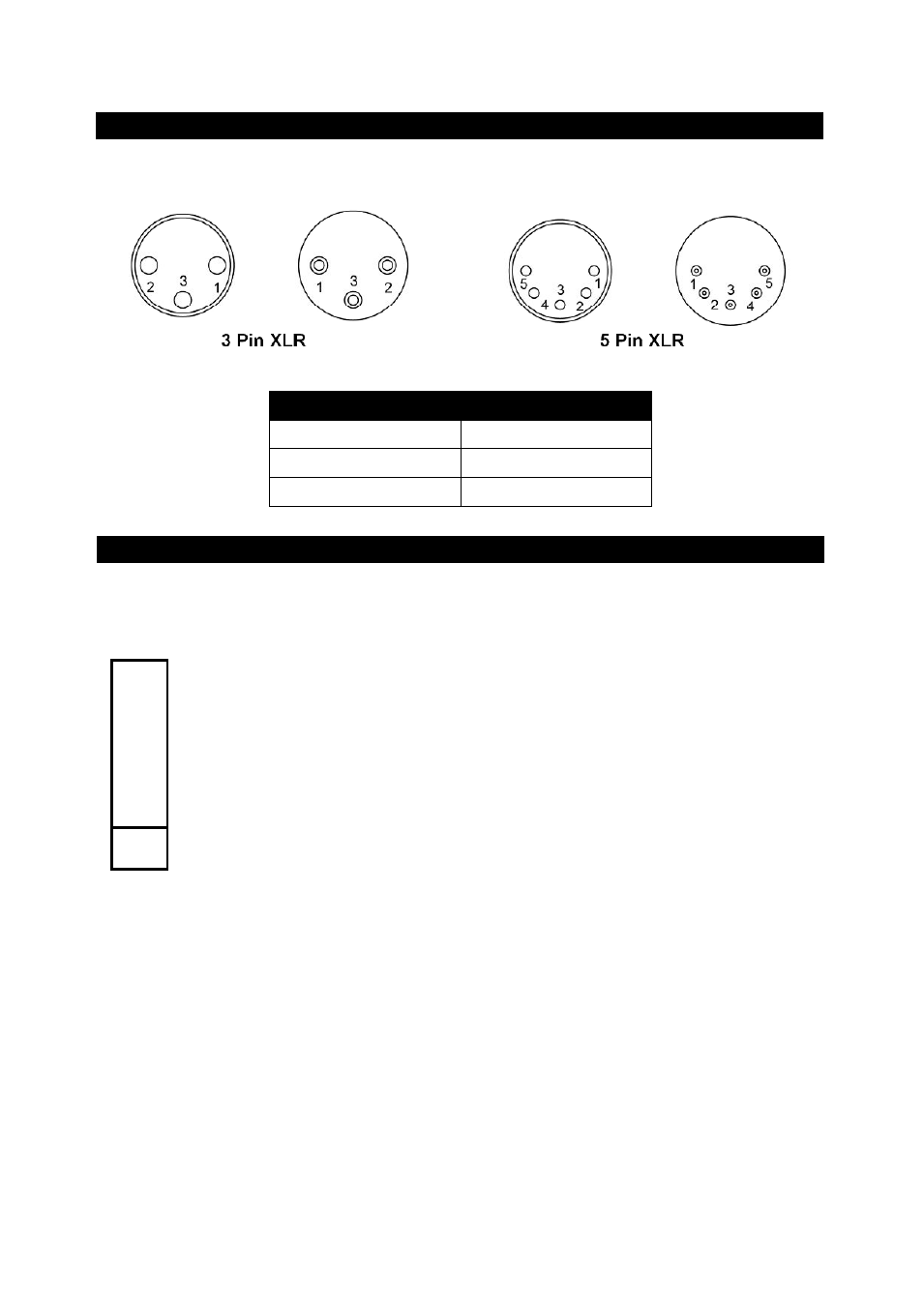

DMX Connector Pin Assignment
The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below indicate pin
assignment information
Pin Function
1 Ground
2 Data-
3 Data+
Antari X-510PRO / X-515PRO on-board DMX settings
Channel A
Volume output
6-255 (5%-100%)
0-5 (OFF)
The X-510PRO and X-515PRO Fog Machines have on-board DMX control. These models use 1
channel to control volume output operation. This channel has a value range of 0 to 255. Timer
functions such as duration and interval can be programmed using the DMX controller or the DMX
control software used by the lighting and effects operator.
If Channel A has a value from 0 to 5, the unit is OFF.
Between the values 6 to 255 the volume of fog output is regulated. With 6 being the minimum volume
of fog produced and 254 approaching the maximum. The volume output rises as the DMX value is
increased.
