PROCEDURE FOR ADDING A COMMUNICATIONS BOARD TO
ECS TEMPERATURE CONTROLLER
Parts Needed:
a. Control Box Assembly ECS, P/N: 69012-[ ]
b. Temperature Indicating Controller, P/N: 64008
c. Communications Board, P/N: 64009-[ ]
Procedure:
1. Turn off power to Control Box Assembly ECS (P/N 69012-[ ])
2. Slide out Temperature Indicating Controller (P/N: 64008) from Control Box Assembly
by gently pushing the indicated latching ears to the side (See Figure 1)

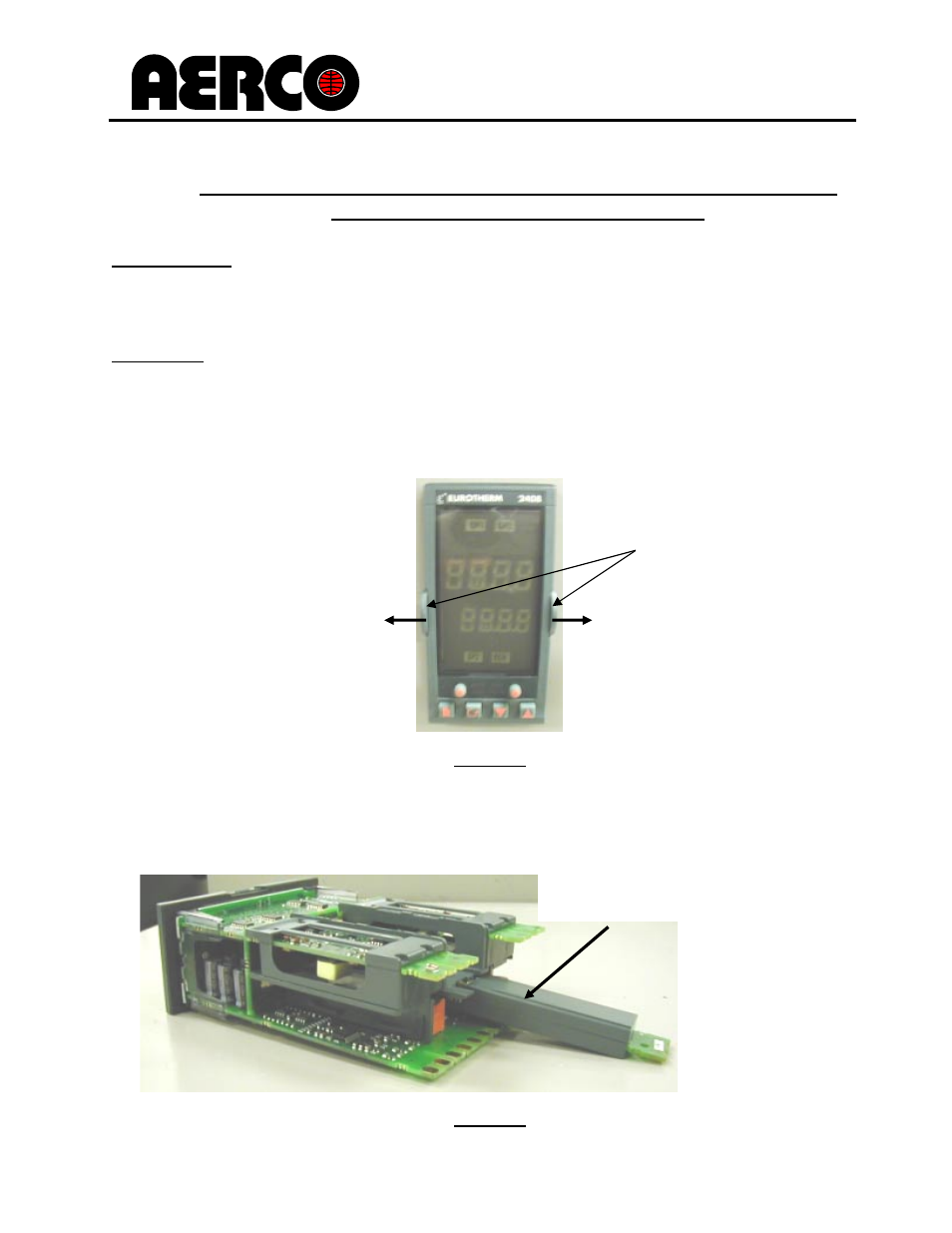

Figure 1
3. Slide Communications Board (P/N 64009-[ ]) into Temperature Indicating Controller
slot (COMMS 1). See Figure 2. Make sure to push Communications Board all the
way in to ensure it is firmly seated in its slot.
Figure 2
COMMUNICATIONS
BOARD
LATCHING
EARS (2)
