Airbag System Components
Additional Information About Your Airbags
Dr
iv
er
and
P
asseng
er
Saf
e
ty
25
(1)
(2)
(3)
(4)
(5)
(8)
(7)
(10)
(11)
(9)
(6)
(4)
(8)
(10)
(5)
(14)
(13)
(14)
(13)
(12)

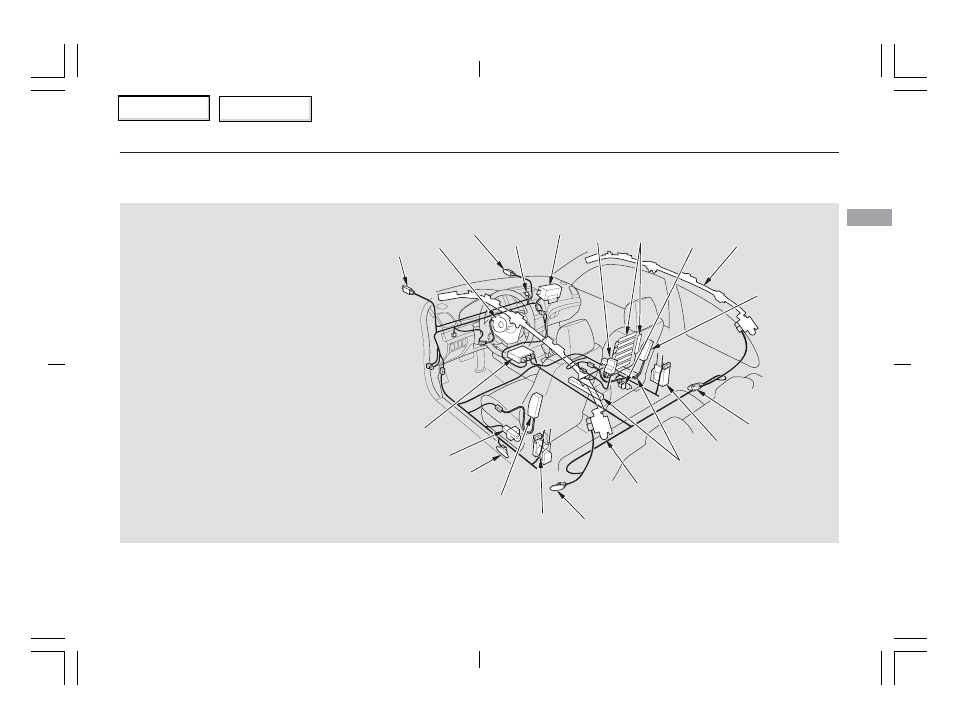

(1) Driver’s Airbag
(2) Front Passenger’s Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors (First)
(11) Occupant Position Detection System (OPDS) Sensors
(12) Front Passenger’s Weight Sensors/OPDS Sensors Control Unit
(13) Side Impact Sensors (Second)
(14) Side Curtain Airbags
