10
97-1502-13 Rev. C

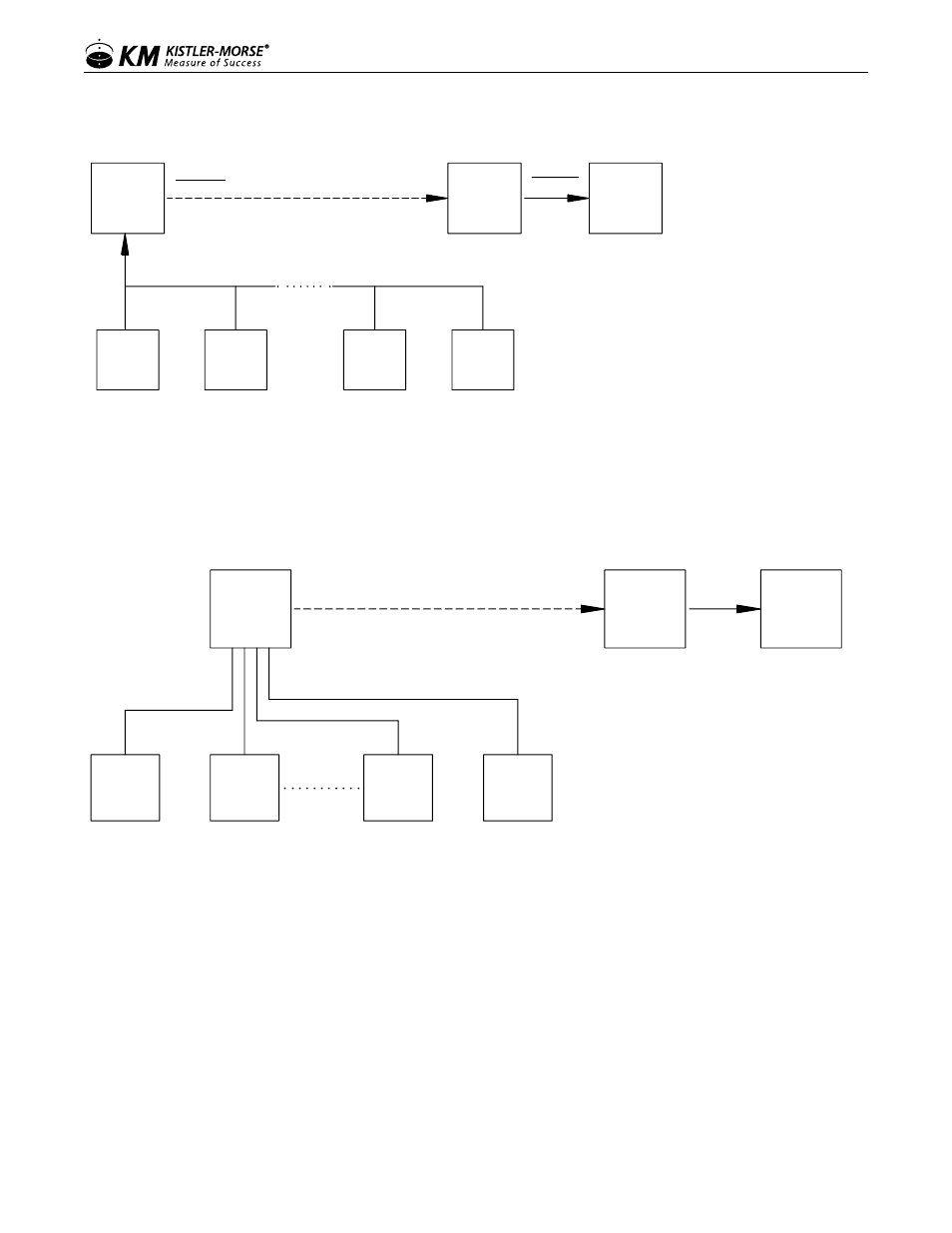

Figure 7. Point-to-Point (Multi Device)
InvisiLink
Remote
InvisiLink
Base
ORB
or
PLC
Device
1
Device
2
Device
N-1
Device
N
N= Number of Devices
= 10 for RS422
= 32 for RS485
RS485
RS422
Note 1
Note 2
RS485
RS422
Figure 8. 4-20 mA Point-to-Point
InvisiLink
InvisiLink
ORB
4-20mA
Base
N = Max of 16 Devices
ORB
or
PLC
Device
1
Device
2
Device
N-1
Device
N
RS422 RS422
4-20mA
CHANGING POINT-TO-POINT TO MULTI-POINT
1. Determine the multipoint base, should be the device connected to the PCL or ORB, change
Dip Switches 5 and 6 to the OFF position.
2. All other units will be considered multipoint remote units; change Dip Switch 5 to OFF and
Dip Switch 6 to ON.
3. Serial cable should be wired, and power has also been wired and turned on.
4. Ensure the Power Indicator LED light is solid red and that Serial Data In/Out LEDs are flashing.
See Figure 5.
