HI HLPRC03 SERIES LOAD POINT ASSEMBLY
Page 4
Installing a Mount
Assembly Step 1. Read the Operation and Installation Manual
first to familiarize yourself with the installa-
tion process.
Step 2. Unpack the mount.
Step 3. The load sensor is separaely crated. Set it
aside in a safe location to be installed after
all the welding has been completed.
Step 4. Place the mount on the foundation plates.
Step 5. Level each mount top plate. Note that all
load points should be within +/- 0.5
o
of each
other. Use shim stock and place it under the
bottom plate to adjust the height for each
mount.
Step 6. When the assemblies are within tolerance of
each other. Position the preassembled
mount on to a foundation plate, and either
weld or bolt the unit into place.

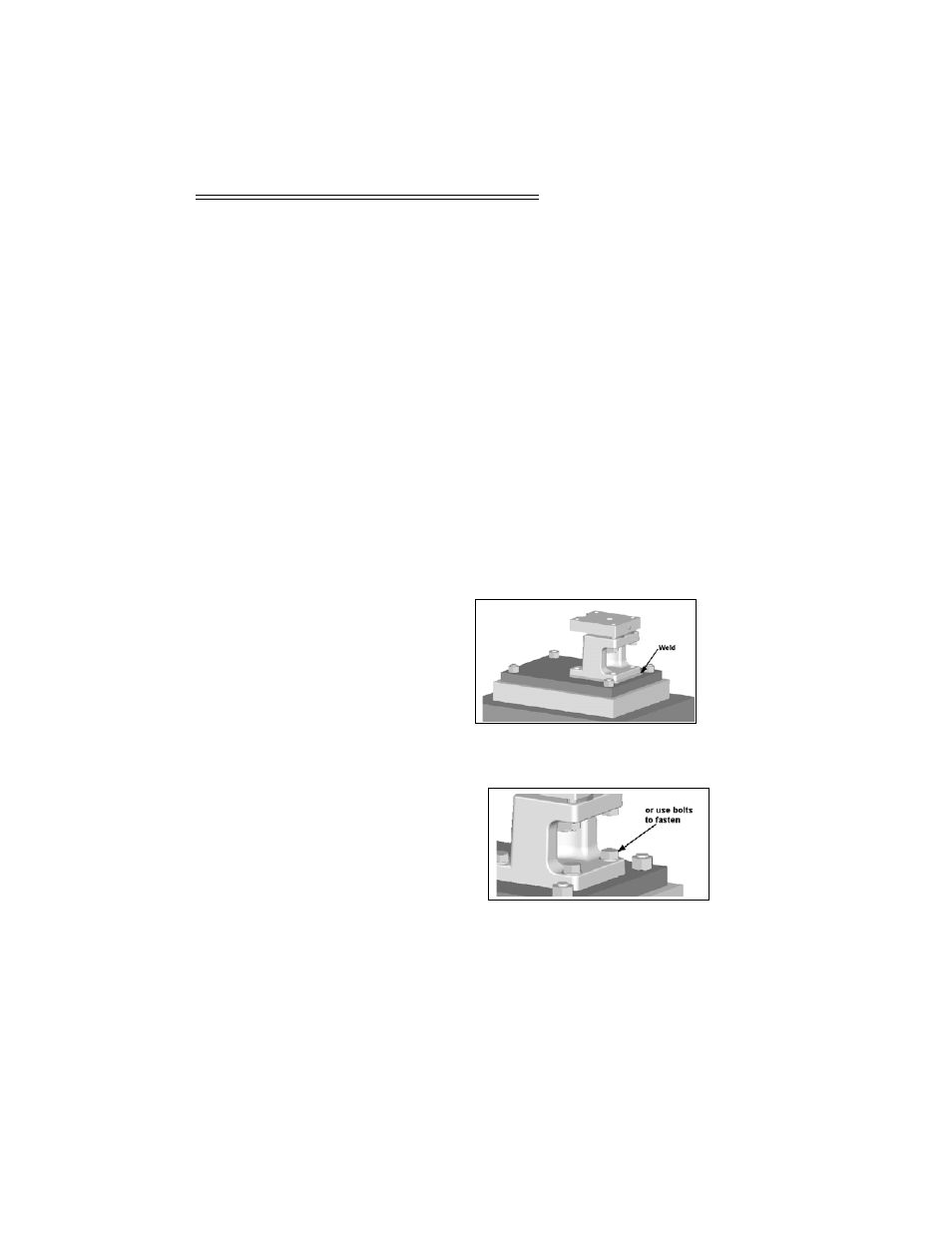

FIG. 3: WELDING ON MOUNTING PLATE
FIG. 4: BOLTING ONTO MOUNTING PLATE
