Step 4

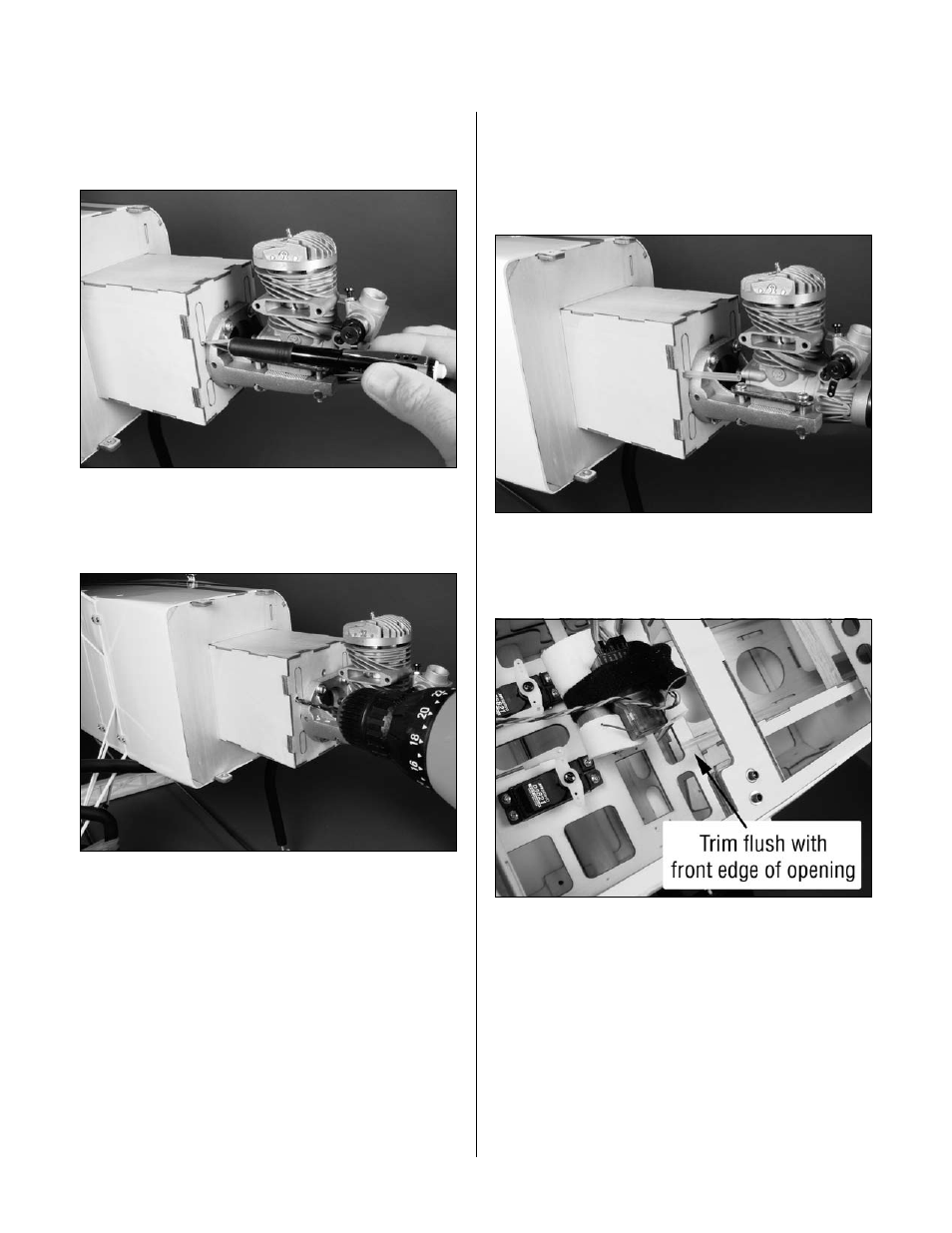

Use a pencil to mark the location of the throttle pushrod
tube on the firewall.
Step 5
Use a drill and 11/64-inch (4.5mm) drill bit to drill the
hole for the throttle pushrod tube.
Step 6
Roughen the outside of the 11
3
/
4
-inch (300mm) throttle
pushrod tube using sandpaper. Slide the tube into the
hole, leaving around 1-inch (25mm) of the tube forward
of the firewall.
Step 7
Use side cutters to trim the pushrod tube at the rear of the
fuel tank tray as shown.
Section 6: 2-Stroke Engine Installation
