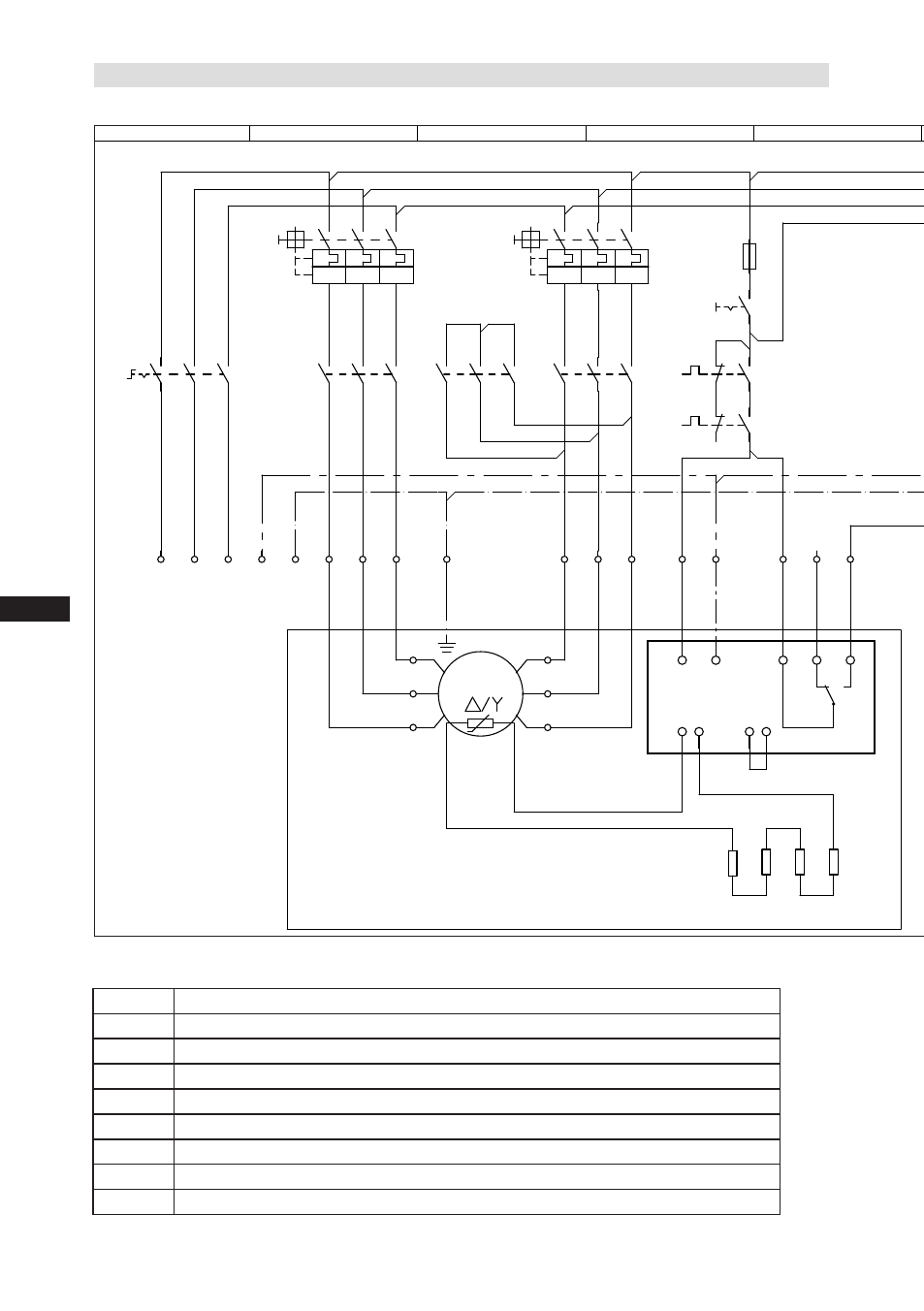

5.5 Circuit diagram for star-delta start 230 V ∆ / 400 V Y
Fig. 22
BP1 Oil differential pressure monitor
BP2 High pressure safety monitor
BT2.X Thermal protection thermostat
BP3 Safety chain (high/low pressure monitoring)
BT3 Release switch (thermostat)
EB1 Oil sump heater
EC1 Compressor motor
FC1.1 Motor protection switch (mains contactor)
FC1.2 Motor protection switch ( Δ-contactor)
Compressor terminal box
