5 | electrical connection – GEA Bock HG88e User Manual
Page 21
D
GB
F
E
I
Ru
21
96260-11.2014-DGbFEIRu

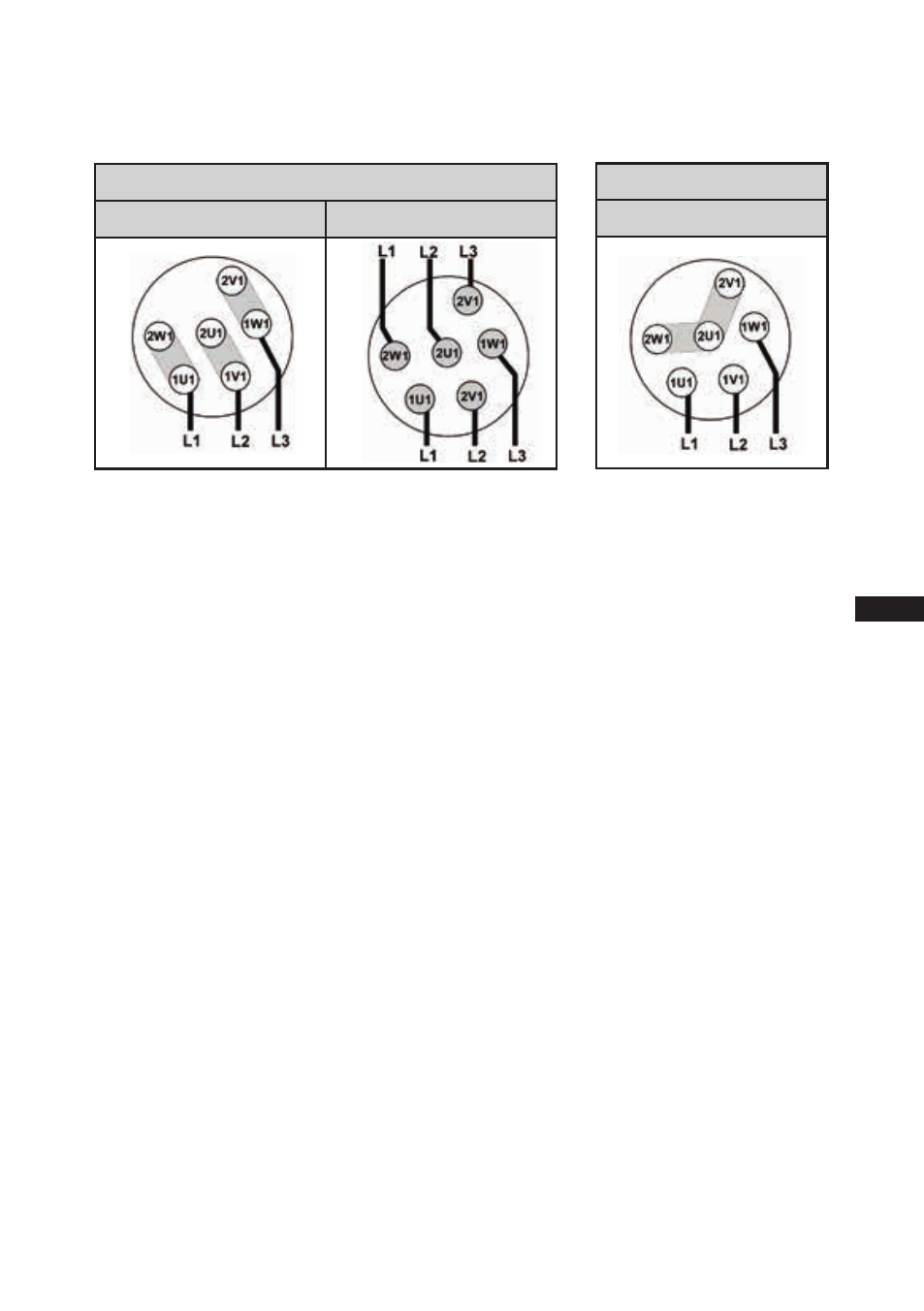

In the factory the motor is wired for direct starting at high voltage.
The brides are to be removed for star delta starting at low voltage.
230 V
Δ
Direct start
Star-delta-start
400 V Y
Direct start only
5| Electrical connection
Star-delta start-up is only possible for
∆ (230 V) power supply. Example:
