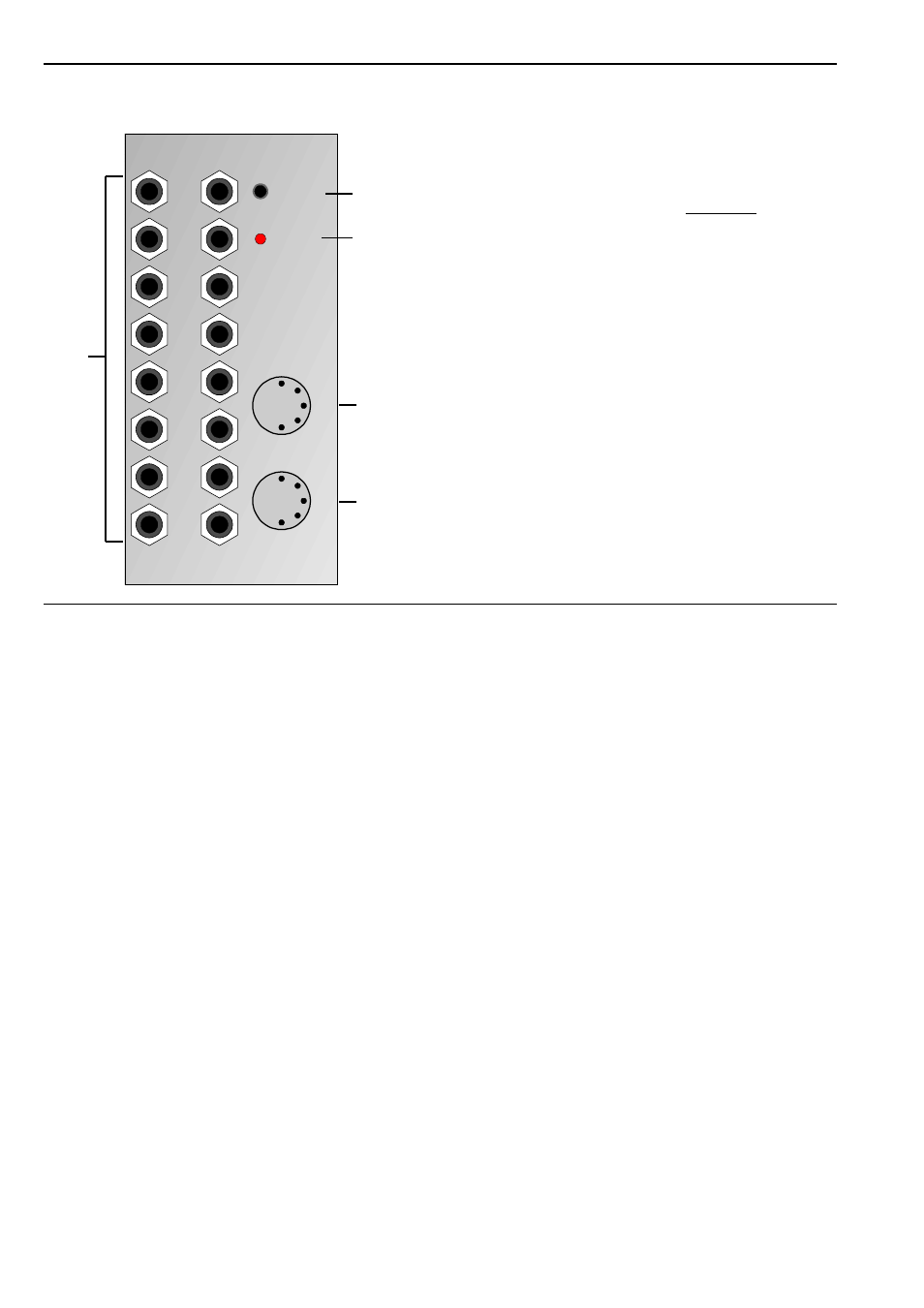

2. Overview Controls and indicators
1 Snapshot : Momentary switch (sends a snapshot
of all the momentary CV settings)
2 Control: LED display
(- DIP switch: 8 pin switch on the A-192 pc board to
select a preset, not shown )
In- / Outputs:
! Sockets : 16 CV inputs (range 0...+5V)
" MIDI In : MIDI input
§ MIDI Out : MIDI output
1
2
"
§
!
CV-to-MIDI Interface
A-192 CVM16
DOEPFER
1 9
Snapshot
Control
10
11
12
13
14
15
16
2
3
4
5
6
7
8
MIDI
Out
MIDI
In
