5. In / Outputs
! Audio In
Socket ! is the phaser’s audio input.
" CV
The control voltage for modulating the speed of phase
shifting is input at socket ". You can set the level of
this CV with control 3.
§ Audio Out
Output § has the mix of phase-shifted and original
signals determined by the position of control 5.
6. User examples
Standard set-up

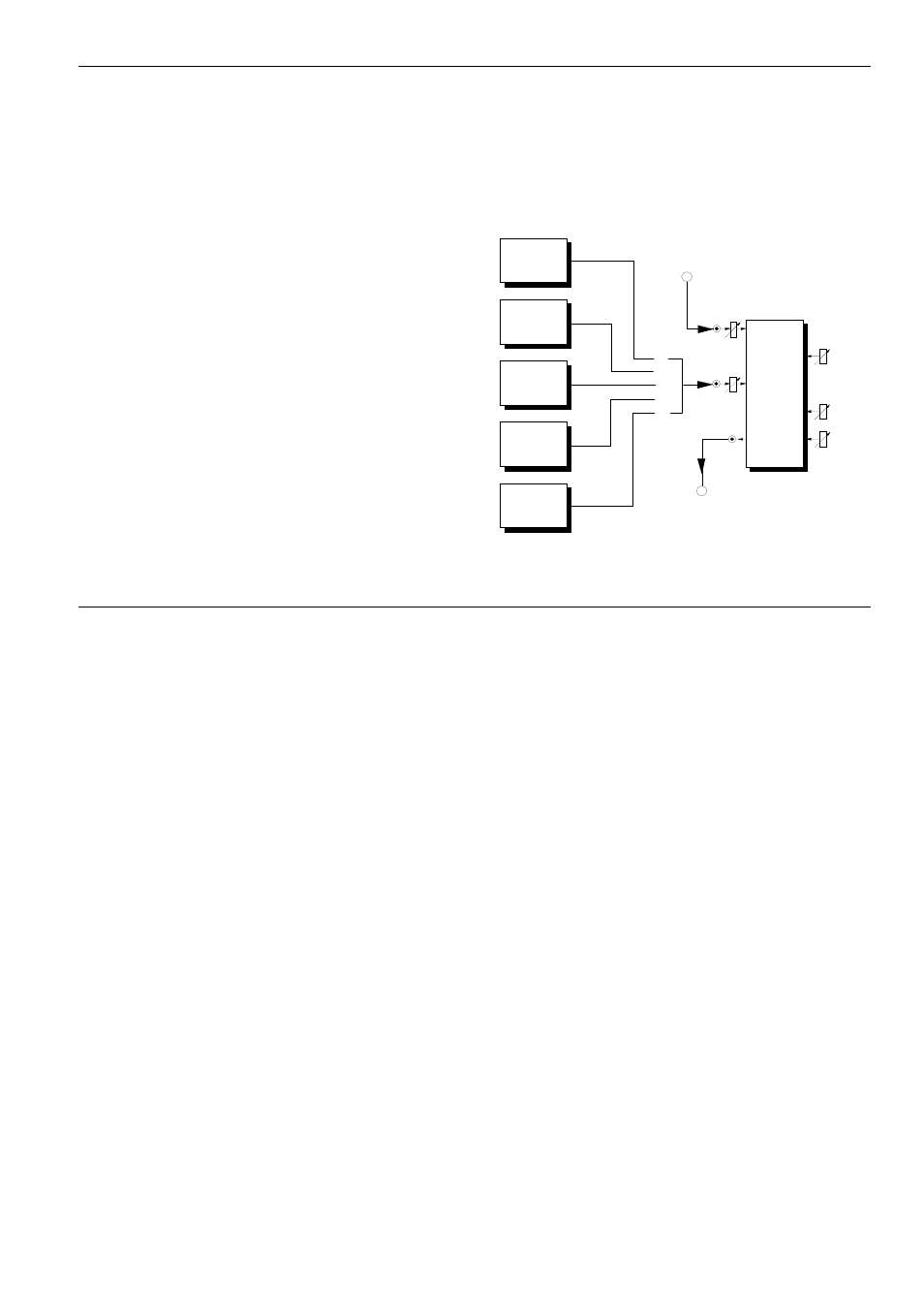

Fig. 3 shows a typical patch, with various alternative
sources of slow-changing modulators affecting the
speed of the phase sweep.
Fig. 3: Typical phaser application
LFO
ADSR
Random
S&H
A-190
CV 2
Audio
In
Mix
CV
Level
Audio
Out
CV 2
A-125
VCP
CV
Shift
Resonance
alternativ
Audio In
Audio Out
1
2
3
4
5
