A-105 / A-122

System A - 100

doepfer

4

At close to maximum resonance, the filter starts to
self-oscillate, and behaves like a sine wave oscilla-
tor.
Thanks to this effect, you can use the filter as an
independent tone source.

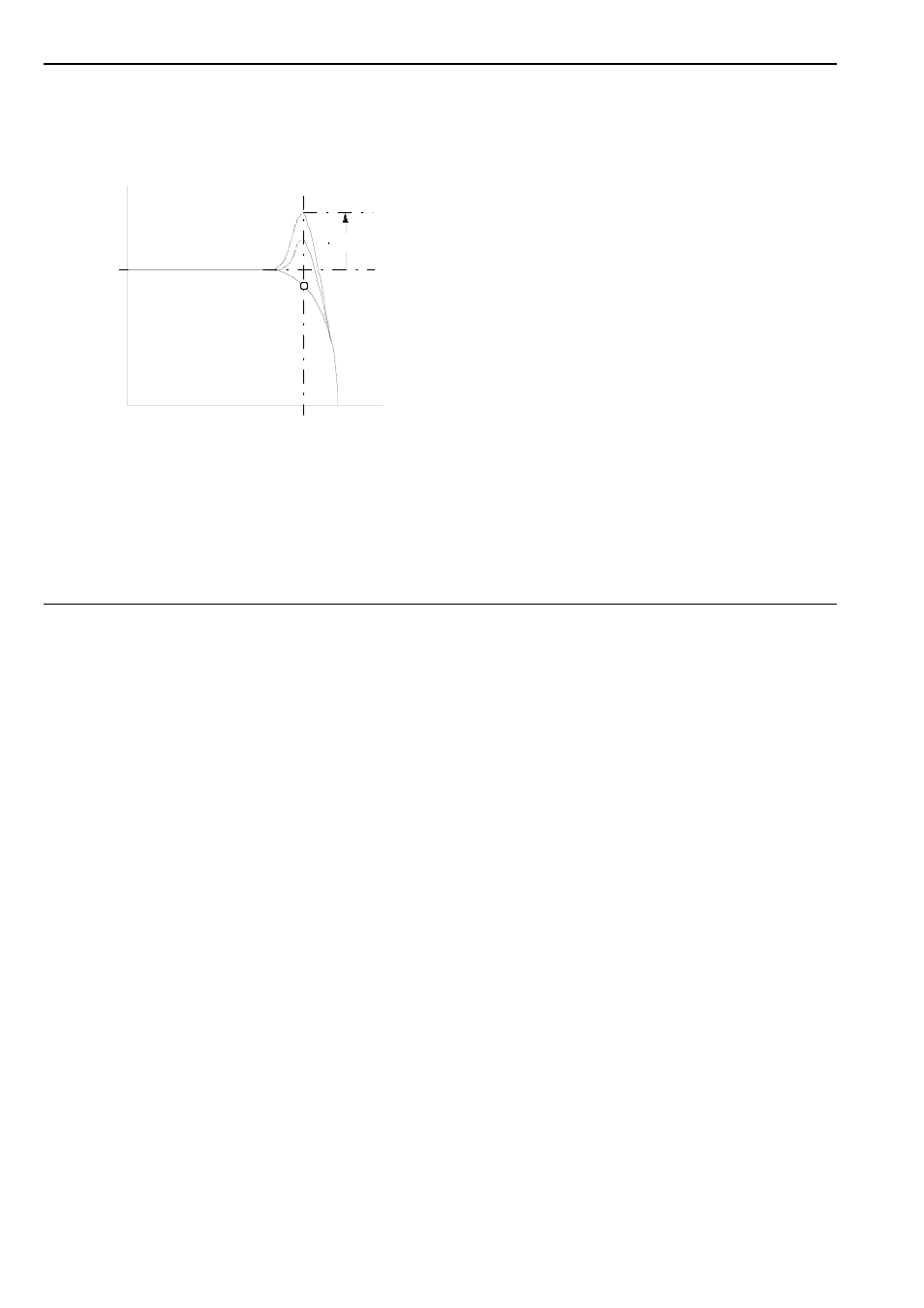

Fig. 2:

How resonance affects the behaviour of a
low pass filter.

4. In / Outputs

!

Audio In

This is the filter’s audio input socket, where you
patch in the output from any sound source.

"

FCV 1

Socket FCV 1 is a voltage control input for the filter.
It works on the 1V / octave rule, like the VCOs.

If you connect the output of a modulation source (eg
LFO, ADSR) to this input, the cut-off frequency of the
filter will be modulated by its voltage: ie, the sound
color changes according to the voltage put out by the
modulator.

P

If you use this VCF as a sine wave oscillator,
connect a pitch control voltage to this input.
Do the same if you want the filter’s cut-off
frequency to track exactly with the pitch of a
note.

§

FCV 2

Socket § is also a voltage-control input for the filter.
Unlike on socket ", though, you can adjust the level of
voltage by using the attenuator 3 , and thus control the
intensity of modulation effect on the filter.

f

c

re s onan ce

frequency

0 d b

am plit ude
