Doepfer MBP25 Midi Bass Pedal Electronics Kit User Manual
Page 7
User's Guide
page 7

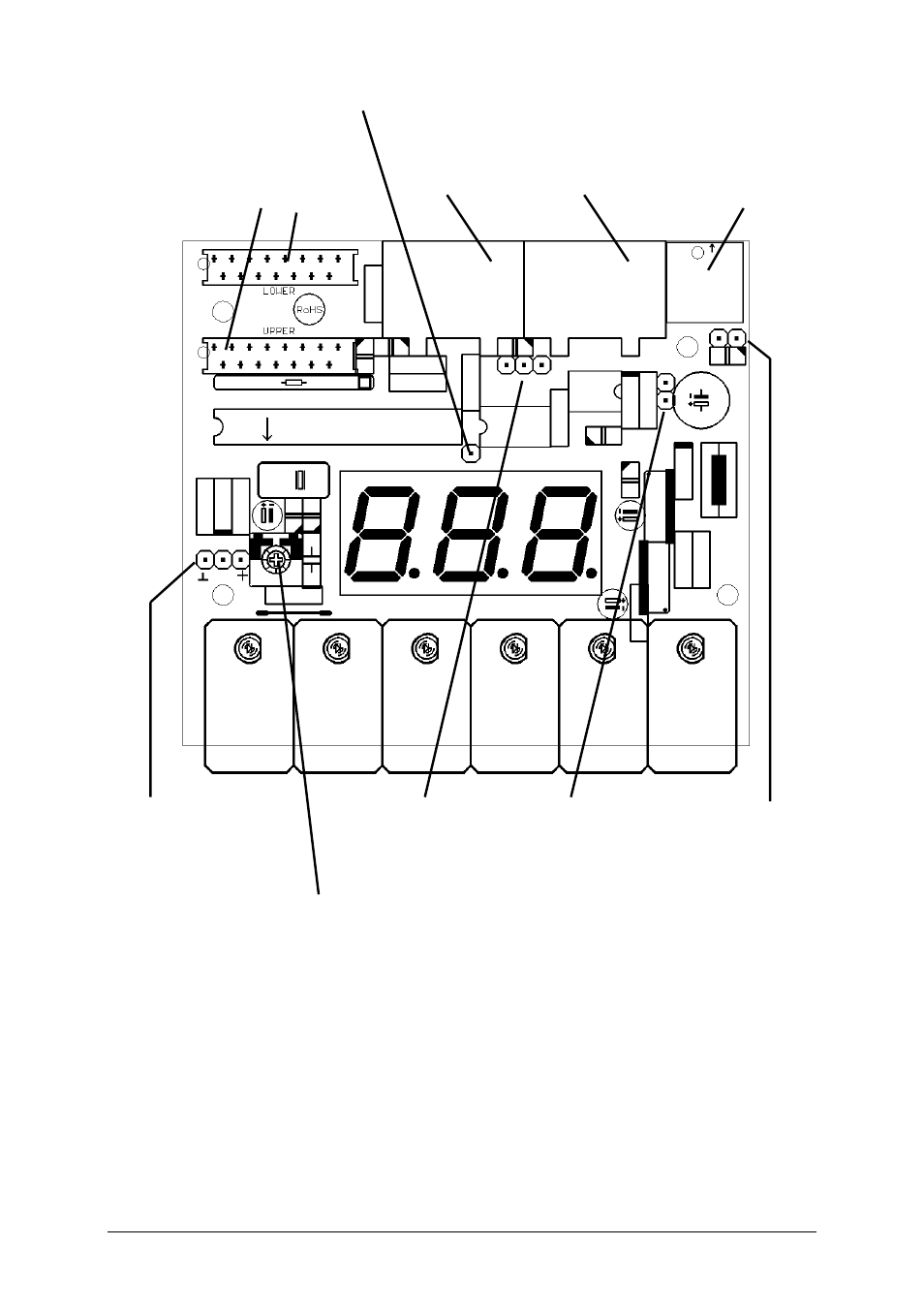

MBP25
(1)
power supply
7-12V/100mA
DC (BU3)
(2)
midi out
(BU1)
(3)
midi in
(BU2)
(5)
connector for
volume control
(ST3)
(4)
bass pedal connectors
ST1 (lower)
and ST2 (upper)
alternative
connector for midi
out socket
(JP4)
feedback terminal for
optional third pedal
(MK4)
alternative
connector for midi
in socket
(JP3)
alternative
connector for
power supply
(JP2)
trimming potentiometer for
voltage range adjustment
of the volume control
connected to ST3
