Doepfer, Musikelektronik – Doepfer MBP25 Midi Bass Pedal Electronics Kit User Manual
Page 16
MBP25
Page 16
User's Guide

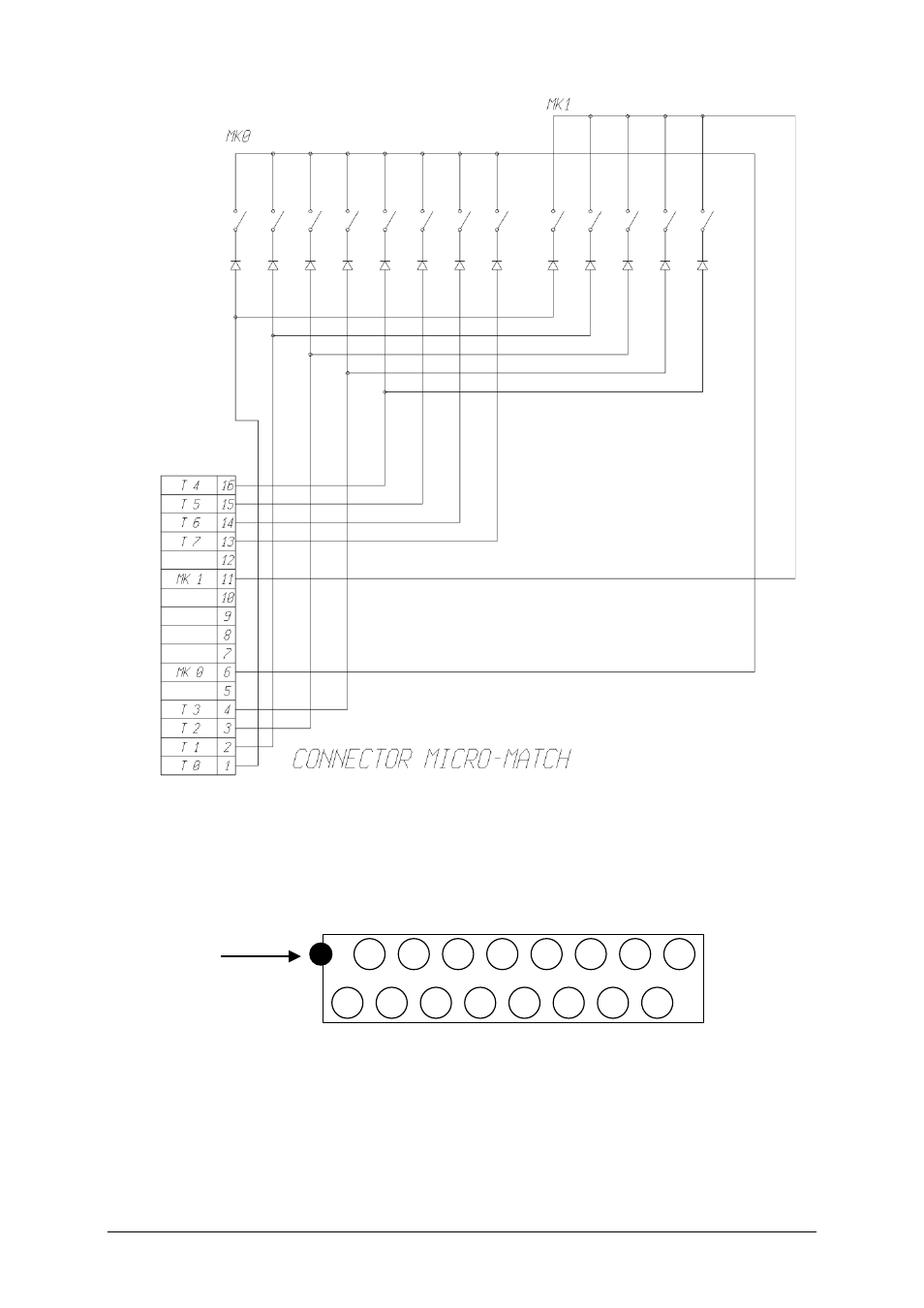

Schematics PD/3
If another bass pedal or single contacts/switches are connected to the MBP25 they have to
be wired identically to the PD/3.
This is the pin-out of the MBP25 connectors (ST1, ST2) for the bass pedals (top view):
Doepfer
Musikelektronik
www.doepfer.com
nc
nc
nc
MK0
T3
T2
T0
T1
nc
nc
nc
MK1
T7
T6
T4
T5
code hole
