Doepfer MBP25 Midi Bass Pedal Electronics Kit User Manual
Page 15
User's Guide
page 15
MBP25

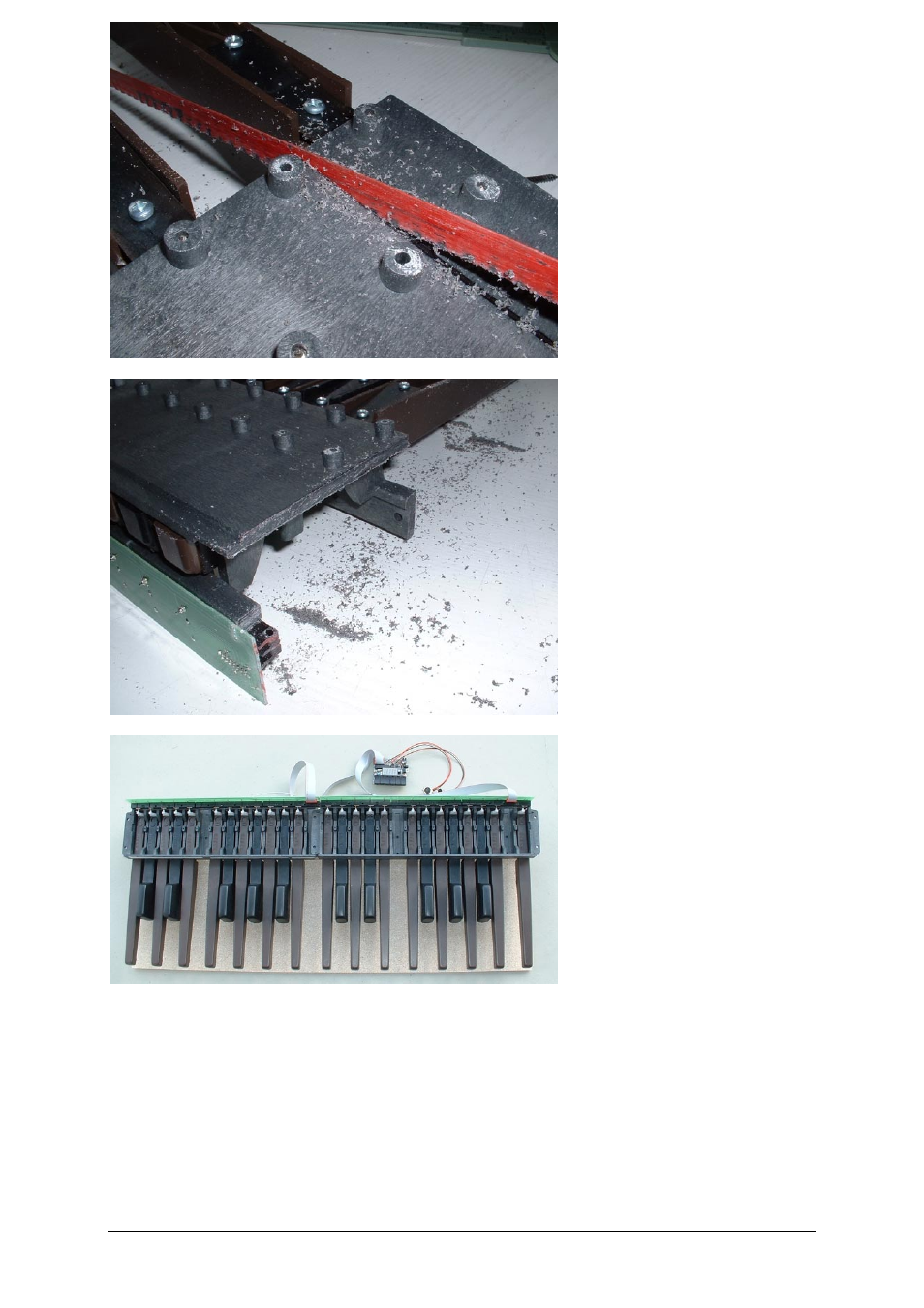

Cut off the pedal frame at this
line with a suitable saw.
View after the pedal frame is
cut off
The two bass pedals can be
mounted on a common base,
e.g. made of wood. On the left
side the bass pedal with the
removed upper key is
mounted. In the rear area the
pedals have to mounted about
8-10 mm higher to have
sufficient lift for the vertical
movement of the keys. For
this a small board (about 12
cm width and 10 mm
thickness) over the whole
lenght can be used (about
93,5 x 12 cm for two pedals).
