3.2. The Electric PTO clutch on Series 5000 compact
tractors is external, but requires some transaxle
disassembly to remove. See Figure 3.2.
• It is possible to set the clutch air-gap in-situ,
without removing the fenders.
• R&R instructions are contained in the 2004 Cub
Update material.

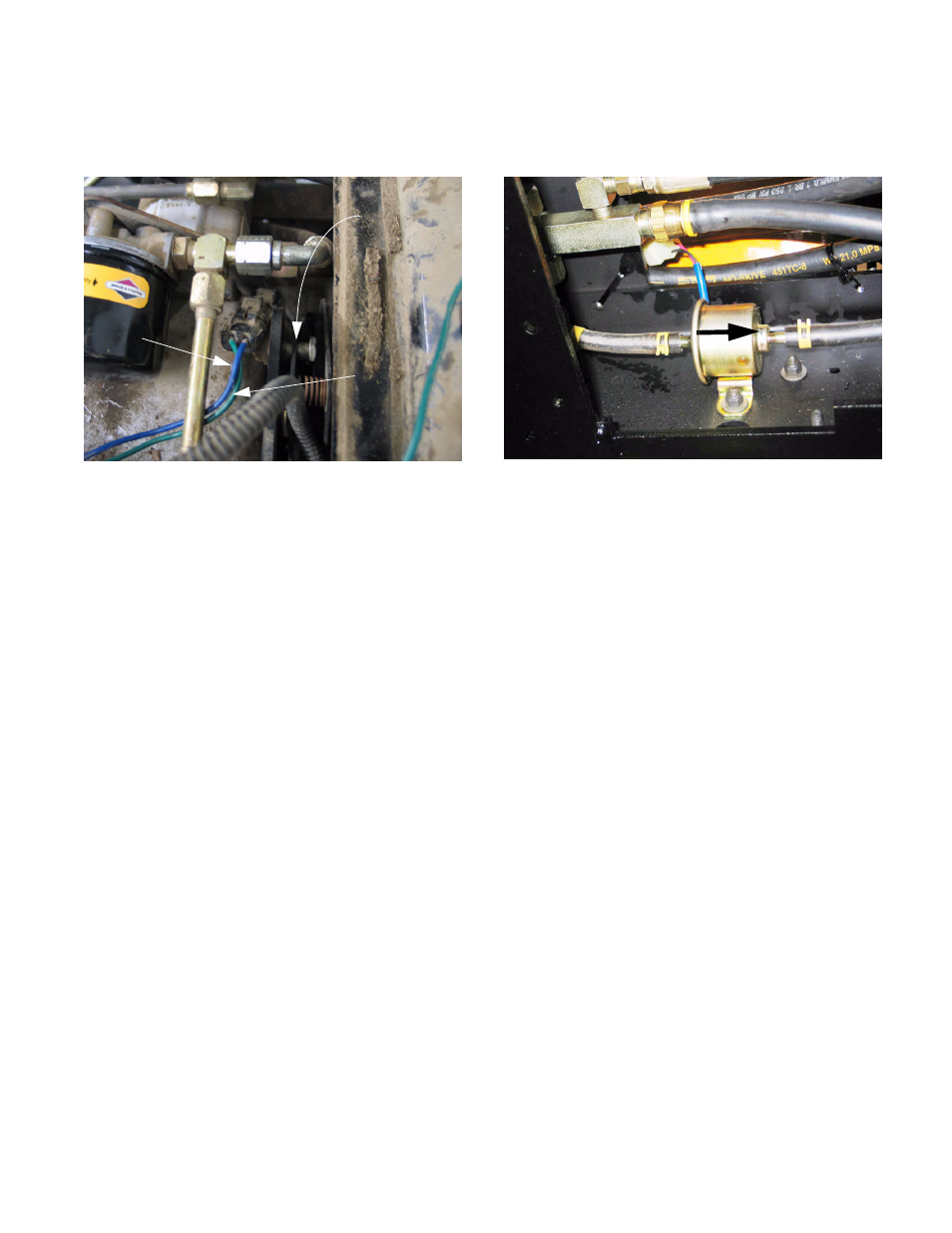

Figure 3.2
PTO clutch
PTO Ground
wire (green)
Power to PTO
(blue)
3.3. The electric fuel pump is mounted to the left
hand side frame channel on all gasoline pow-
ered domestic compact tractors. See Figure 3.3.
• Diesel powered tractors in the Series 5000,
6000, and domestic 7000 line do not have elec-
tric fuel pumps.
• Caterpillar engines have a mechanical lift pump
feeding the high-pressure injector pump, and
Briggs & Stratton Daihatsu pumps are able to
self-feed.
• The electric fuel pump is powered whenever the
key switch is ON. When they run there is an
audible clatter. The noise is louder when there
is air in the system, and quiets-down as the sys-
tem fills with gasoline. This may take 10-15 sec-
onds after the key switch is turned-on.
Figure 3.3
Flow
