Domestic Series 5000 MFD
59
9.90. Install the washers and nut. tighten them until
the match marks made previously align.

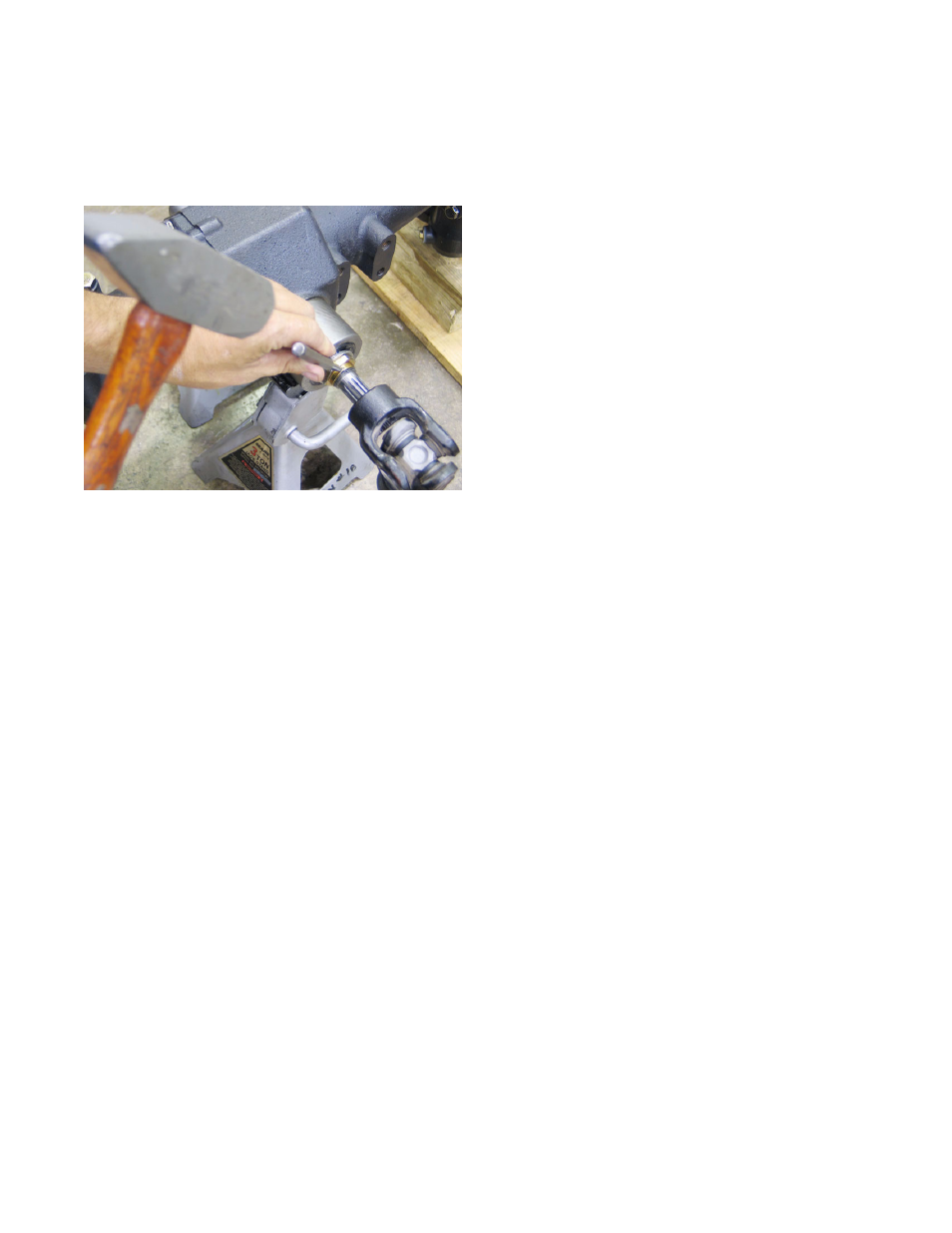

9.91. Stake the nut so that it does not loosen.
See Figure 9.91.
9.92. Install the tie rod.
• Use a 17 mm wrench to turn the tie rod end nuts,
and a 16 mm wrench to keep the studs from
turning in the tie rod ends.
• Tighten the nuts to a torque of and tighten the
nut to a torque of 264-312 in.-lbs (30-35 Nm)
using a 3/4” wrench.
NOTE: If the nylon locking ring on the tie-rod
end nuts is worn, replace the nuts or apply a
small amount of threadlocking compound such
as Loctite 242 (blue) before installation.
9.93. Install the MFD in the tractor as described in the
MFD INSTALLATION section of this manual.
Figure 9.91
