Domestic Compact Dash and Steering Pump

1.14. On Briggs & Stratton / Daihatsu engines, a Z-fit-

ting connects the cable to the pump. An 8mm
wrench will fit the screw on the cable clamp.
See Figure 1.14.

1.15. On gasoline powered tractors, the choke cable

must also be disconnected. Use an 8mm
wrench to loosen the cable clamps, then unhook
the z-fittings. See Figure 1.15.

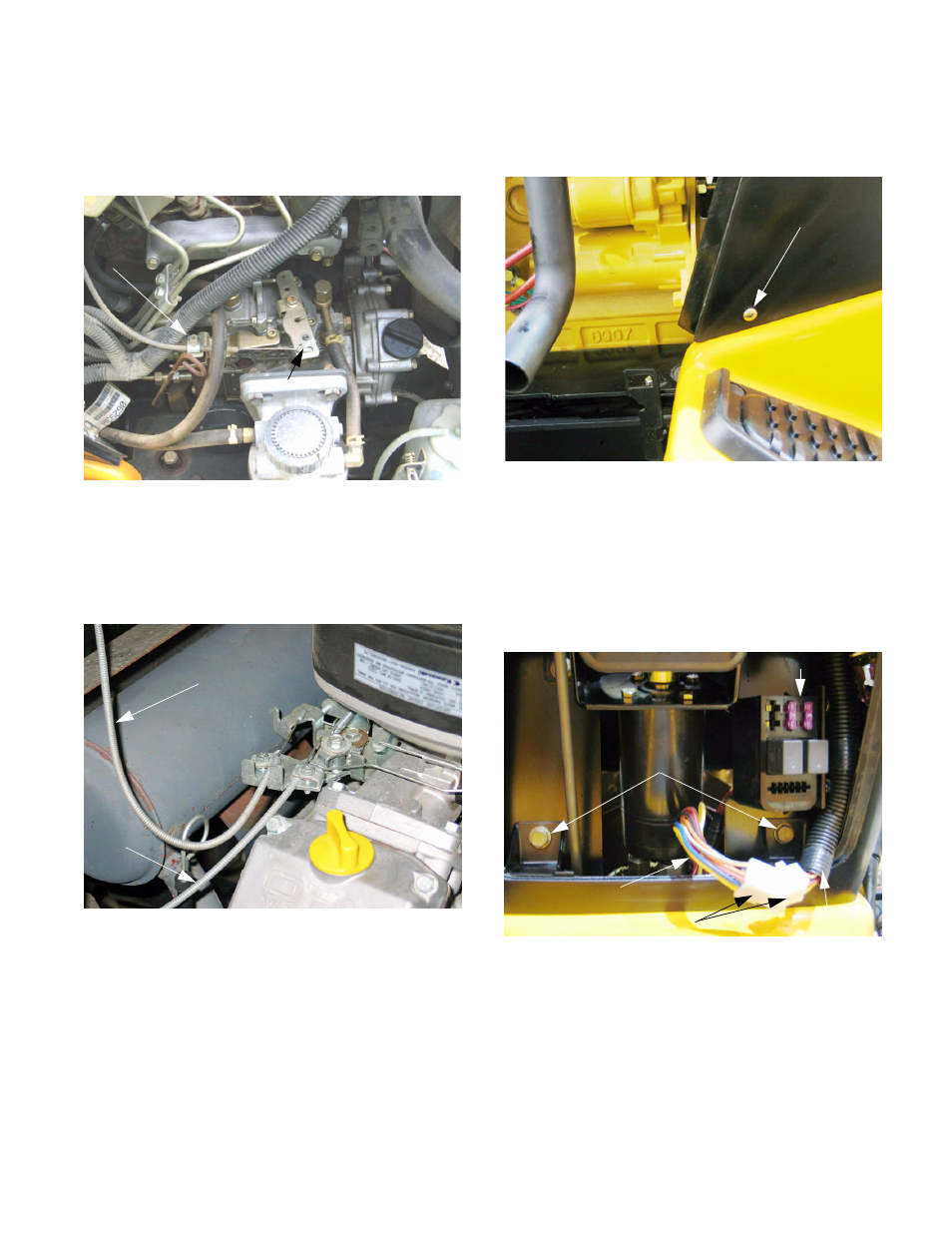

Figure 1.14

Cable
clamp

Z-fitting

Figure 1.15

Choke
cable

Throttle cable

1.16. Remove the two phillips head screws that

secure the lower rear corners of the dash panel.
See Figure 1.16.

1.17. Disconnect the dash wiring harness from the

main wiring harness by unplugging the connec-
tor that is near the fuse / relay center.

1.18. Use a 1/2” wrench to remove the two screws

holding the base of the dash panel to the pedes-
tal. See Figure 1.18.

1.19. Close the hood.

Figure 1.16

Screw

Figure 1.18

Screws

Main harness

Connector

harness

Dash

Fuse and relay
center
