3 Control Buttons, Keypad and Display
15
3 Control Buttons, Keypad and Display
3.1 Interactive Controls
3.1.1 Control Buttons
There are four Control Buttons on the front of the instrument (see Figure 6 ):
Table 3.... Control Buttons on NucleoCounter
On/Off Use this button to turn the instrument on and off
Run Use this button to start measuring
Esc Use this button only as instructed in this manual
Del Use this button only as instructed in this manual

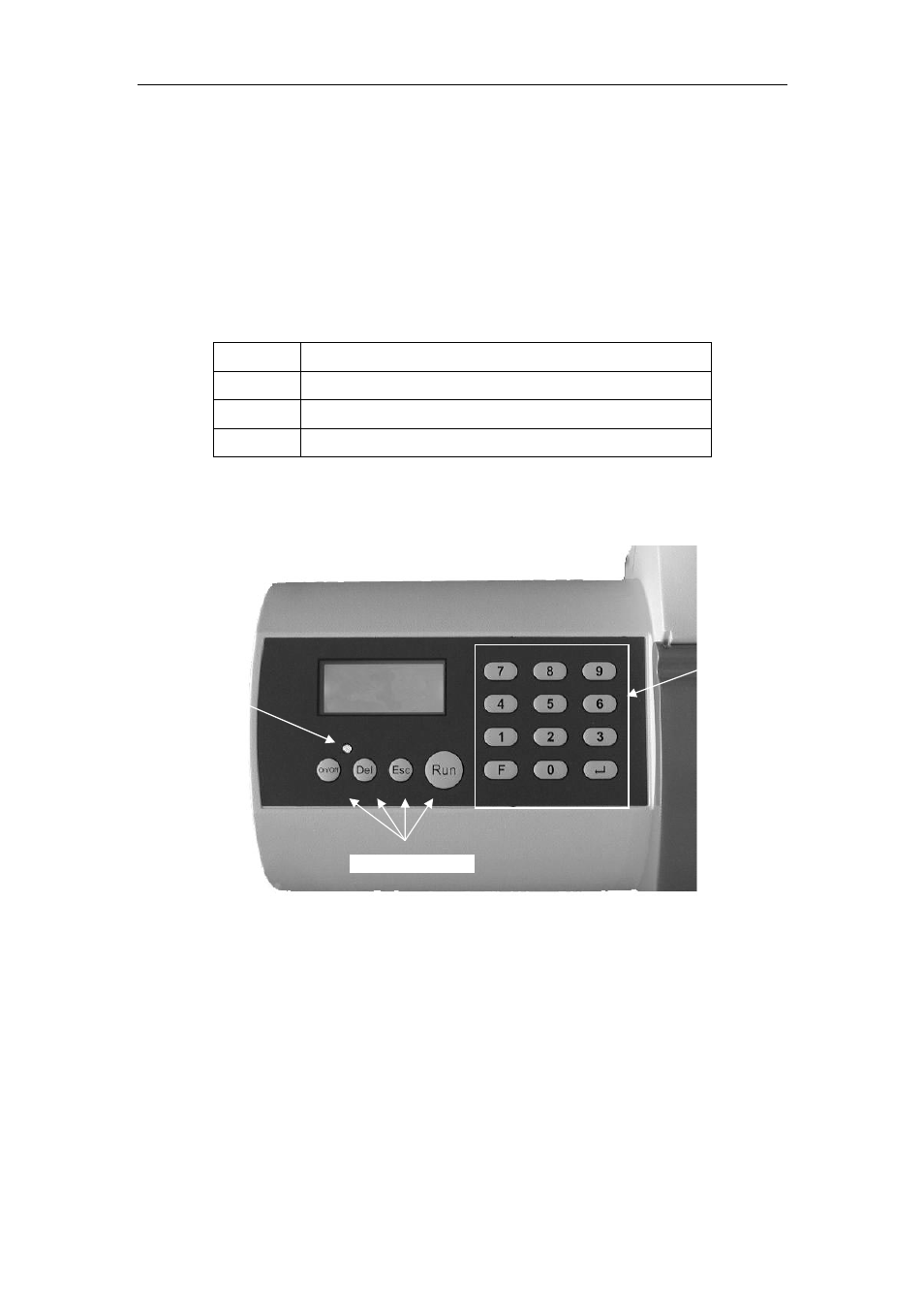

Figure Figure Figure Figure 6 66 6 .... Control Buttons, Keypad and Status Indicator of NucleoCounter instrument
3.1.2 Keypad
The Keypad is comprised of 12 keys (see Figure 6): “ 0-9”, “F” (function key) and “↵ ↵ ↵ ↵ ”
(Enter). The keypad is used for any entering of values used to alter the status of the
instrument.
Control Buttons
Status Indicator
Keypad
