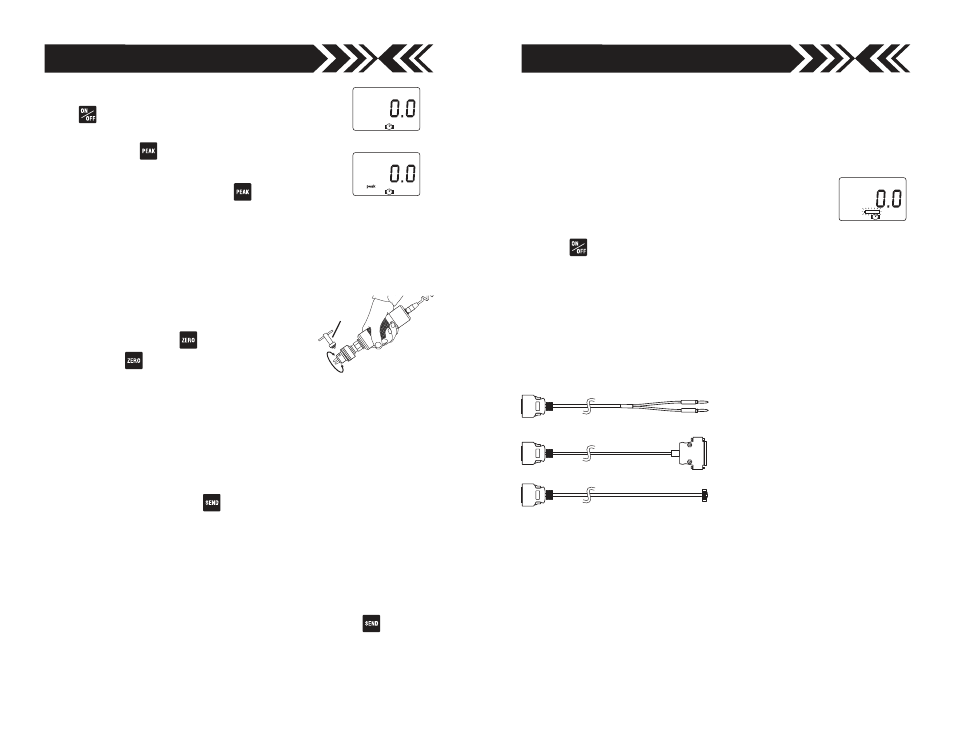

RECHARGING NI-MH BATTERY
1. To maximize the life of the battery, power is automatically shut
off after 10 minutes of non-use or user-defined interval.
Automatic shut off is bypassed during USB output or when
used with the AC adapter/charger.
2. Battery icon will flash when the gauge needs to be
recharged.
3. Push to turn off power. Only use the IMADA AC adapter/
charger provided, AD120 for 115VAC, AD230 for 230VAC. Plug
into the correct AC output. It takes 10 hours to charge fully.
4. When the gauge is turned off, make sure the AC adapter/charger
is disconnected to avoid overcharging.
OPTIONAL CABLES
10' Analog cable
CB-104
10' RS-232C cable, 9 pin female
CB-204
10' Digimatic Cable
CB-304
Storing Data into Memory
During measurement whether Peak or Real Time, press to store
and display up to 1000 torque values into memory. (If no data is
stored – – – – – is displayed then flashing CF9 with solid End).
Peak or Real time Measuring Mode
Press to turn on and the gauge automatically
enters real time measuring mode. For peak mea-
surement press . The “Peak icon” appears on
the display. Peak readings will not change until a
higher value is measured. Press again to
return to real time mode.
“Or PEAK“ is the factory default which measures peak CW torque
or peak CCW torque. “And PEAK“ measures both peak CW torque
and peak CCW torque during a test. Refer to the F2 function of
the Power-On programming table for the “And PEAK” function.
Tare
Clamp test sample firmly by tightening the
key. If necessary, press to tare before the
test. Pressing also clears the peak reading.
If High and Low setpoints have been programmed (see page 5),
for example, 5 lbf-in is set as Low and 10 lbf-in as High, the
ORANGE LED light for measurements less than 5 lbf-in (Low set-
point). GREEN lights between 5–10 lbf-in and RED lights over 10
lbf-in (High setpoint). Setpoint output is available through the
Communications port (see page 7).
After measuring, press the button to transmit data to:
RS-232 models: RS-232C or Digimatic devices
REAL TIME MODE DISPLAY
PEAK MODE DISPLAY
KEY
TURN MEASURING
CHUCK BY HAND
