INTRODUCTION
Model HTG2 is a highly sophisitcated, torque tester which offers
programmable high/low setpoints for go/no go testing. Store up
to 1,000 values into memory, which can be transmitted using
Digimatic or RS-232 formats. Use the Real Time mode to display
torque transients, or the Peak mode to capture the peak torque
achieved during a test. Select measuring units between lbf-in or
ozf, kgf-cm and N-cm.
PRECAUTIONS
HTG2 Torque Tester is a sensitive instrument. The torque sensor
can be damaged regardless of whether the unit is ON or OFF.
Follow these precautions to keep your HTG2 from being damaged.
1.
WARNING!!
Do not exceed unit’s capacity regardless if power
is on or off.
2. Only use the Imada AC adapter/charger, other brands may cause
serious damage.
3. Accuracy may be affected if unit is exposed to high humidity,
dust or extreme shock.
4. Do not disassemble unit. Disassembly voids warranty.
5. Recommended re-calibration cycle is one (1) year.

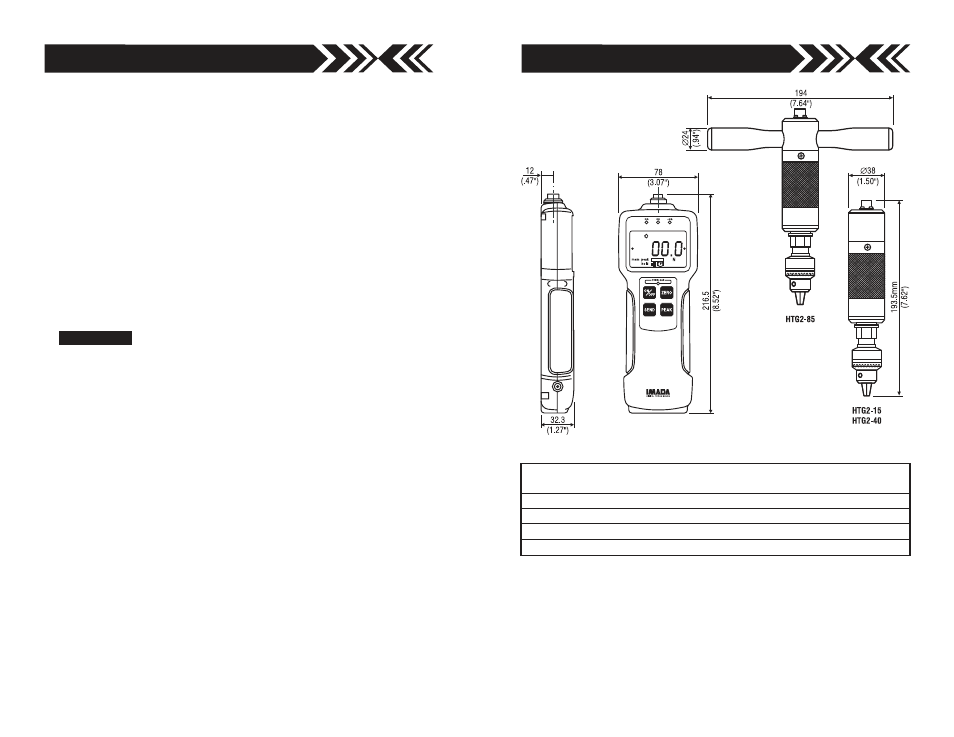

DIMENSIONS
Model
Capacity (Resolution)
lbf-in
kgf-cm
N-cm
HTG2-4
70.00 (0.01 ozf-in)
5.000 (0.001 kgf-cm)
50.00 (0.01 N-cm)
HTG2-15
15.00 (0.01 lbf-in)
20.00 (0.01 kgf-cm)
200.0 (0.1 N-cm)
HTG2-40
40.00 (0.01 lbf-in)
50.00 (0.01 kgf-cm)
500.0 (0.1 N-cm)
HTG2-85
85.0 (0.1 lbf-in)
100.0 (0.1 kgf-cm)
1000 (1 N-cm)
