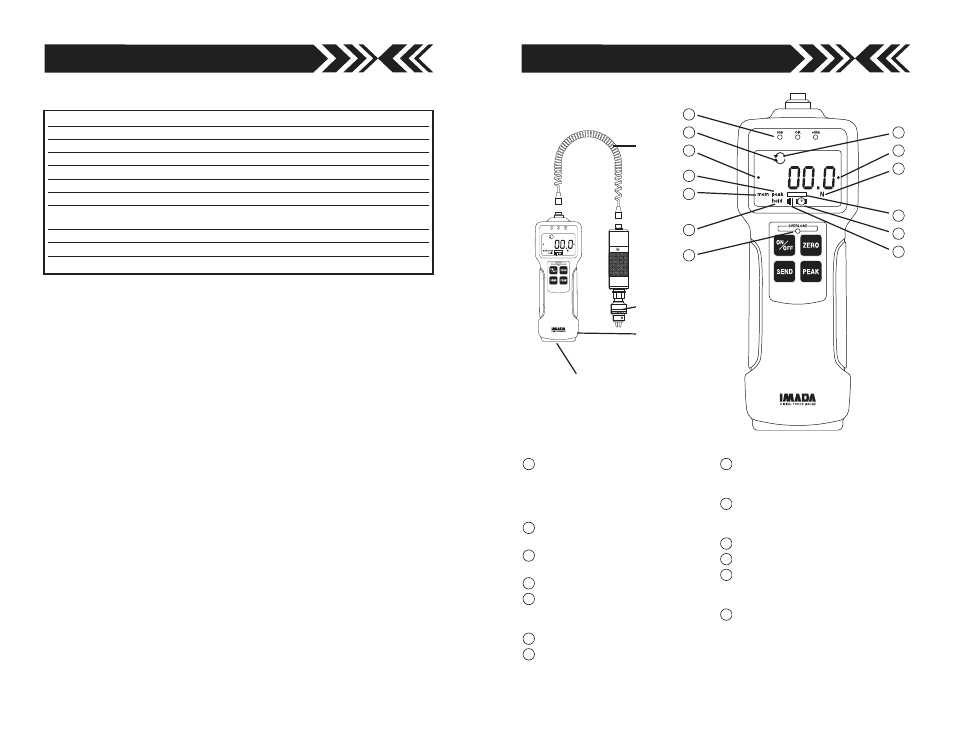

Programmable Setpoint LED’s
When high-low setpoints are set,
LED indicates below (-NG), within
(OK), or above set point value
(+NG).
CW icon
Indicates CW measurement.
CCW icon
Indicates CCW measurement.
Reverse +/– values
Auto Zero Reset icon
Programmable auto zero reset
duration
Auto Memory - Peak Reset icon
Battery icon
Flashes when Ni-MH cells need
charging.
PEAK icon
Displays continuously when peak
function is active.
HOLD icon
Displays when external hold signal
is active or SEND button is pressed.
Alarm Icon
Auto Power Off icon
Units icon
Displays selected measuring units.
(ozf-in, lbf-in, kgf-cm, N-cm)
Overload Indicator
Flashes at 110% of rated capacity.
13
12
11
10
9
8
7
6
5
4
3
2
1
13
1
2
3
4
5
6
7
8
9
10
11
12
MEASURING
CHUCK
DISPLAY
UNIT
CABLE
COMMUNICATION PORT
RS-232, DIGIMATIC &
±2VDC ANALOG
Accuracy
± 0.5% F.S. ± 1 LSD
Selectable Units
ozf-in or lbf-in, kgf-cm, and N-cm
Overload Capacity
200% of F.S. Overload indicator flashes beyond 110% of F.S.
Power
Rechargeable Ni-MH battery pack or Imada AD120/230 adapter
Battery Indicator
Icon flashes when battery is low
Battery Life
approx. 8 hours (recharge time approx. 10 hours)
Memory
Non-volatile, recall up to 1000 data
Setpoints
Programmable high/low setpoints with color-coded LED
indicators and output signal
Outputs
RS-232C, Digimatic and ± 2 VDC analog output
Auto Power Off
5, 10, 30, 60 minutes or OFF (selectable)
Operating Temp.
32° to 100°F (0° to 40°C)
Imada HTG2 Series Specifications
