Checkline TSFM500 - Manual (Page 3)

Series TSF
3 1 .5
[ 8 0 0 ]
#10-32 UNF-2B
X 0.360 DEEP
X25
7.9 [201]
0.500 [12.7]
TYP
9.4 [239]
2.800 [71.1]
MOUNTING PLATE
TOP VIEW
2.300 [58.4]
0.500 [12.7]
TYP
1 4 .7
[ 3 7 4 ]
M
A
X (
M
G
)
1 3 .5
[ 3 4 3 ]
M
A X
(
E G
/B
G
)
4.35 [110]
7 .5
0 0 [ 1 9 0 .5
]
7.300 [185.4]
BASE PLATE
BOTTOM VIEW
5/16-18 UNC-2B
X0.600 DEEP
X4

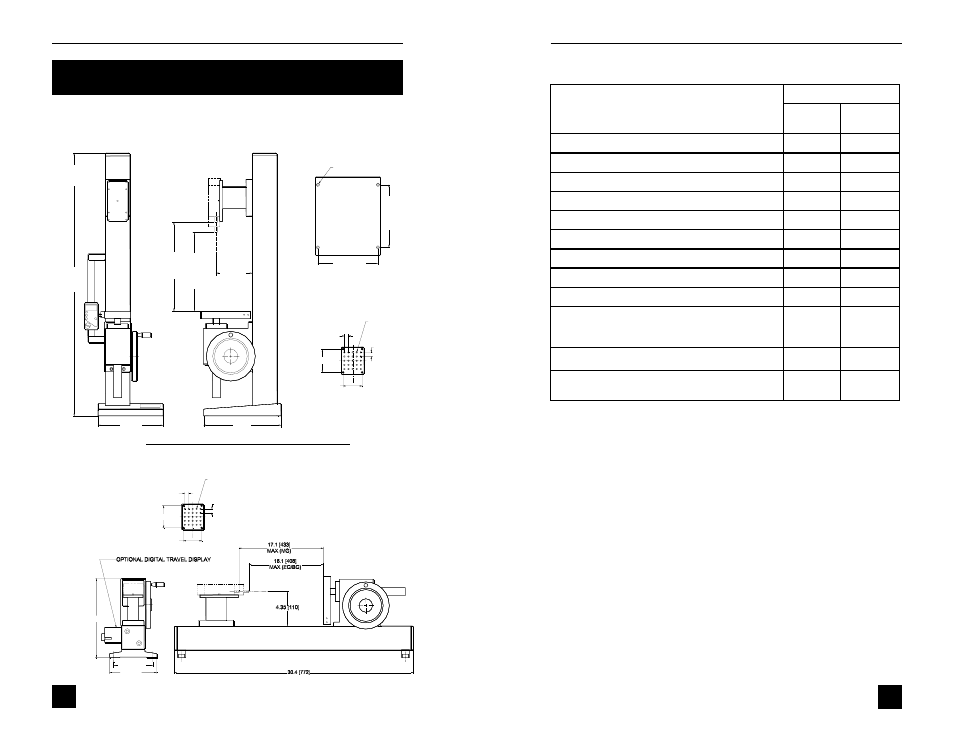

TSF / TSFH
DIMENSIONS
IN [MM]
TSF
0.50 [12.7]
TYP
#10-32 UNF-2B
X 0.36 DEEP
X25
10.0 [254]
6.0 [152]
5.00 [127.0]
MOUNTING PLATE
TOP VIEW
2.80 [71.1]
2.30 [58.4]
0.50 [12.7]
TYP
IN [MM]
TSFH
9
User’s Guide
Item
Quantity
TSF /
TSFM500
TSFH /
TSFM500H
Force measurement test stand 1 1
User’s guide (this booklet) 1 1
Base 1 -
Mounting leg - 2
Column cap 1 2
5/16-18 x 1” screw for base installation 4 -
1/4-20 x 3/4” screw for top cap installation 2 4
Thumb screw for gauge mounting 4 4
Mounting hole drill template 1 -
Attachment kit – includes three hooks (small, me-
dium, and large), 2” and 3” diameter compression
plates, and two couplers (#10-32 and 5/16-18)
1 1
Tool kit 1 1
Control unit with power cord (TSFM500 and
TSFM500H, only)
1 1
UNPACKING AND SETTING UP
1. Carefully unpack the test stand from the box and inspect for any
damage. Check the contents to ensure that you have received a
test stand complete with all accessories – see the list of included
items above.
2. Remove the foam from the middle portion of the test stand column
and remove the plywood caps by unscrewing the pair of screws at
each end. For models TSF and TSFM500, install the base with four
5/16-18 x 1” screws and the top cap with two 1/4-20 x 3/4” screws.
For models TSFH and TSFM500H, install the two column caps with
two 1/4-20 x 3/4” screws each. Store all packaging materials for
possible future use.
2. Place the stand on a firm, flat and level working surface free from
vibration to ensure accurate readings. It is recommended that the
test stand can be secured to a work bench – see your model’s
“Operation” section for further details.
LIST OF INCLUDED ITEMS
2
