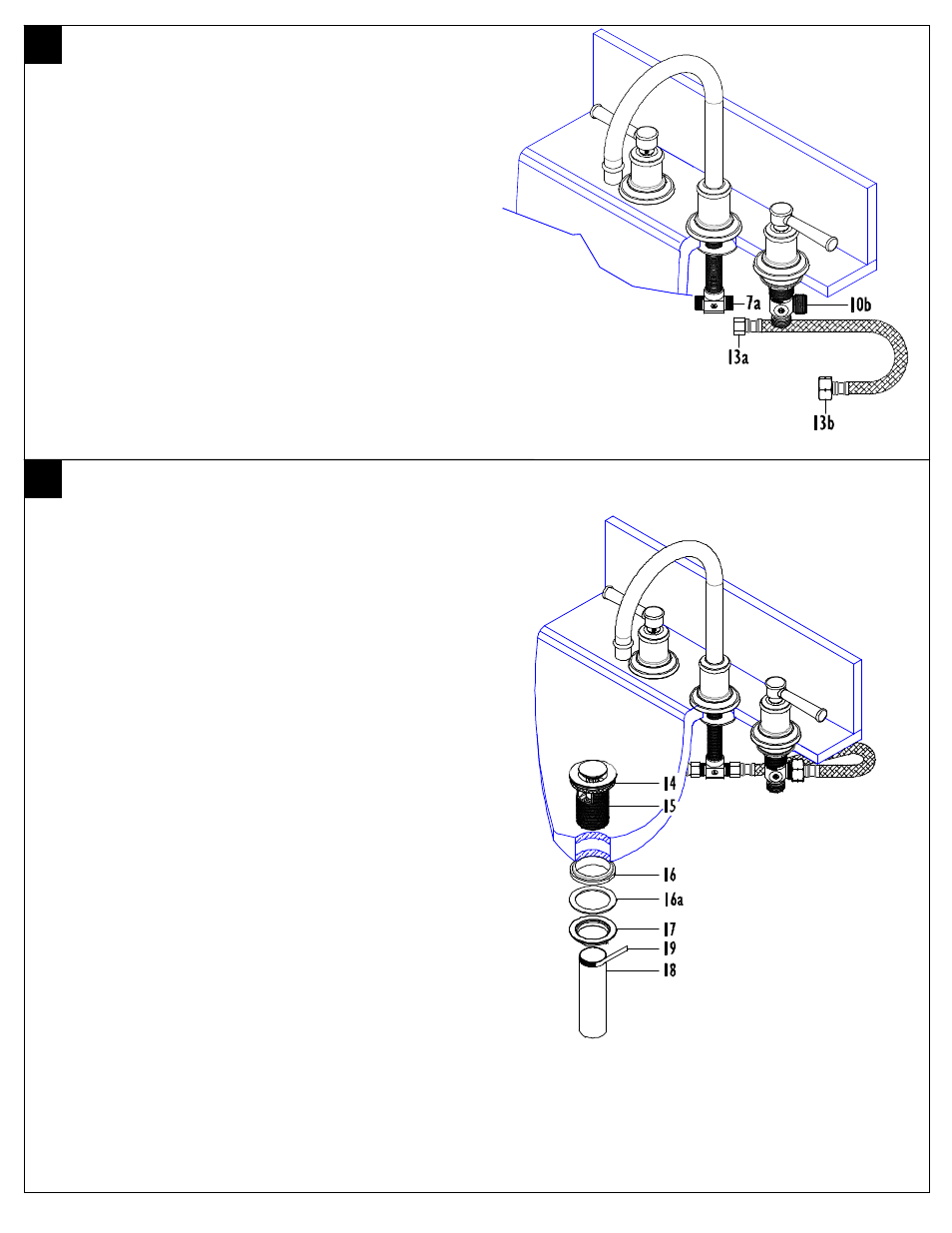

INSTALLING VALVE HOSES
• Attach small hose NUT (13a) to spout TEE (7a)
• Attach large hose NUT (13b) to valve side
OUTLET (10b)
• Repeat on other side valve
5
INSTALLING DRAIN
• Slide white foam WASHER (14) up under flange of
BODY (15)
- or -
• Apply thin film of Silicon
®
sealant (or equivalent –
DO NOT use petroleum-based sealant as this WILL
void finish warranty) to underside of flange on
BODY (15)
• Insert BODY (15) down through sink drain hole
• From underside, slide MACH-WASHER (16) and
FRICTION-WASHER (16a) up onto BODY (15)
• Secure BODY (15) into place with flange NUT
(17)
• Apply Teflon
®
tape (19) (not supplied) to threaded
portion of TAILPIECE (18) & tighten onto BODY
(15)
