4 Description of function
8
SpeedExtractor Record 1.0 Operation Manual, Version A
4
Description of function
This section will introduce all basic functions provided by the software and its structure.
4.1
Program window

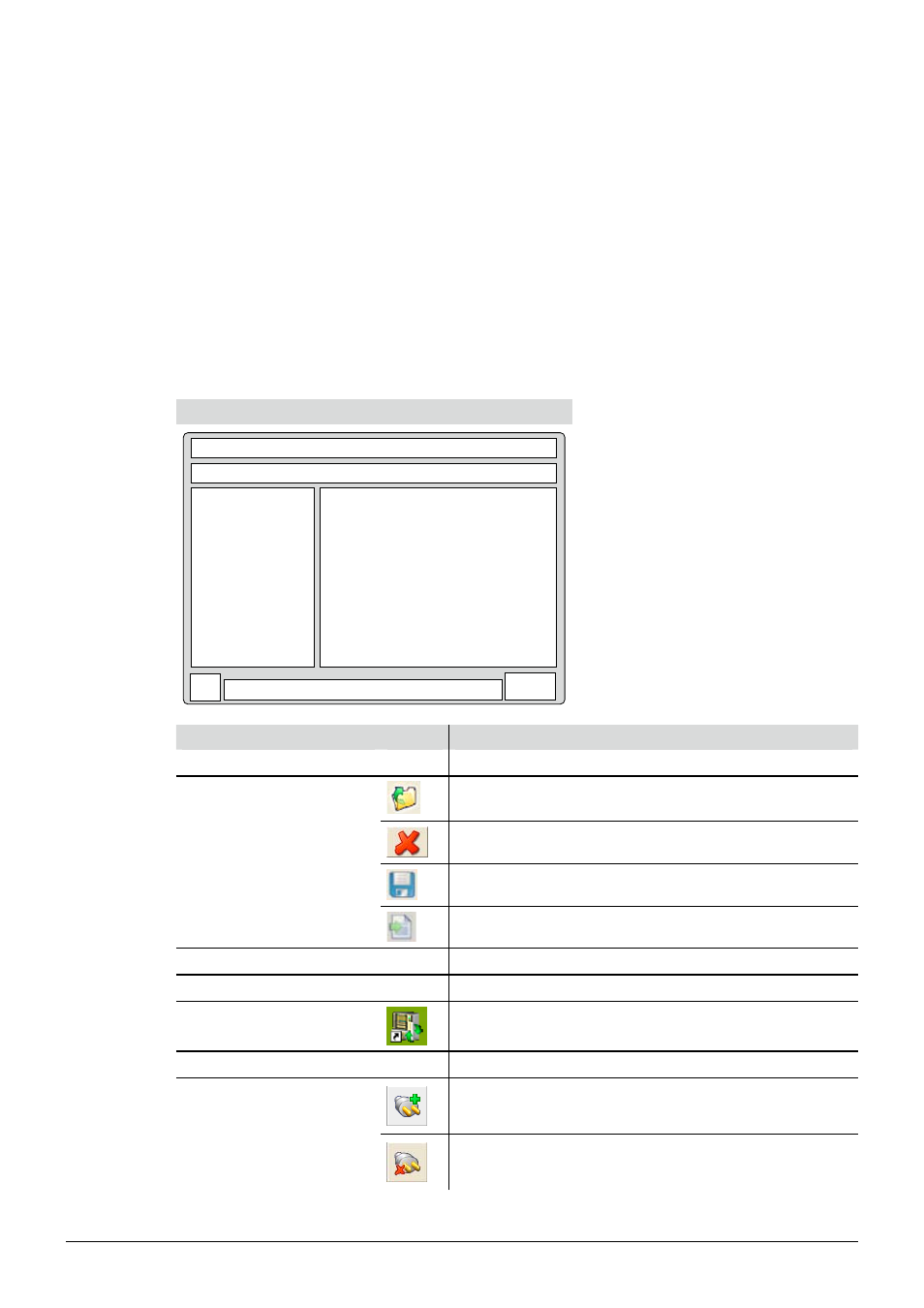

The concept drawing below displays the segmentation of the program window and the general icons.
The icon status depends on the actual program view:
Greyed-out icons are inactive and not operable
•
Colored icons are active and operable
•
Program window
Position
Icon
Actions behind buttons
Menu bar
none
Click on text, to activate drop down menus
Toolbar with icons
Click this icon to open an existing extraction report
Click this icon to delete items
Click this icon to safe items
Click this icon to export items in .csv format
Program tree view
none
To expand the tree-structure, click on the plus symbol
Main view
none
Displays program information and configuration screens
Program icon
Can be found on the desktop as a program shortcut
and in the program window
Progress bar
none
Displays system status progress
Program status indication
PC is connected to the SpeedExtractor and
serial number of connected device (communication established)
PC is not connected to the SpeedExtractor (communication failed)
