7 Workflow
29
SpeedExtractor Record 1.0 Operation Manual, Version A
Report details

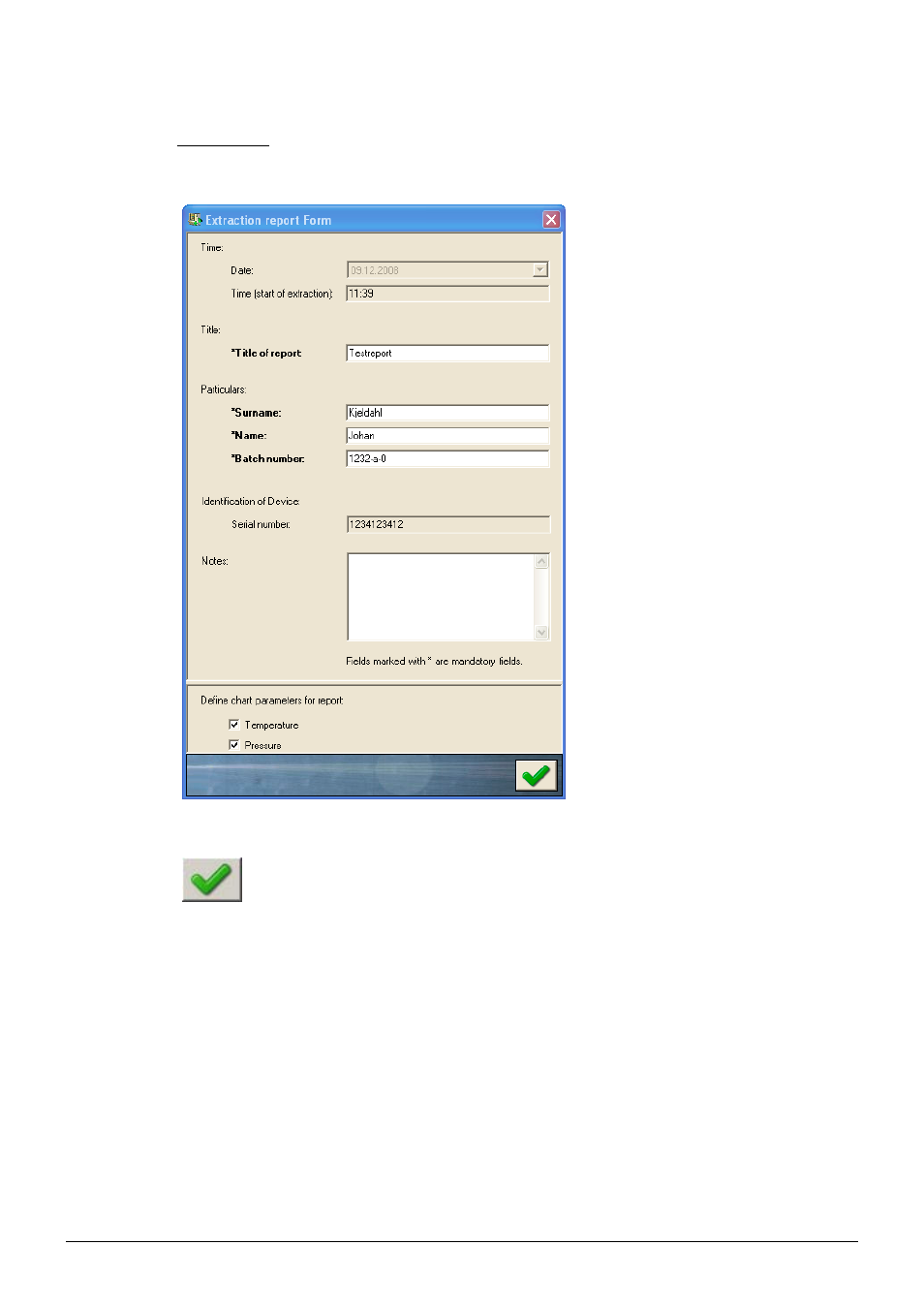

In the report queue, click on a red recording entry. This action brings up the ‘Extraction Report Form’
window (Fig. 7.3).
Date and Time are automatically set to the
computer timebase.
Fill in the users data here.
The ‘Batch Nr.’ is a probe identification number.
The device ‘Serial Number’ is set automatically.
Use the ‘Notes’ box for any kind of extraction
related information.
To hide or show temperature and pressure
curve of the report, use the checkboxes under
Define Sequence to show in Report.
Fig. 7.3: Extraction Report Form
Click on this icon to confirm the form data (this will create a report, which has a black entry in the
report queue). The report is not yet saved on the file system!
Note
All data-fields marked with an asterisk (*) are mandatory.
•
Save the report on the file system (see next section)!
•
