4 Description of function
19 Melting Point M-565 Operation Manual, Version D
4 .2 Controls and connections
a b
c d e
f
a Power switch; turns the instrument on/off
b Start; starts process
c Stop; stops process, starts/stops ventilation,
returns to idle screen
d 3 Select and Set buttons
e Rotary knob for navigation in the menu and
for select characters
f Display

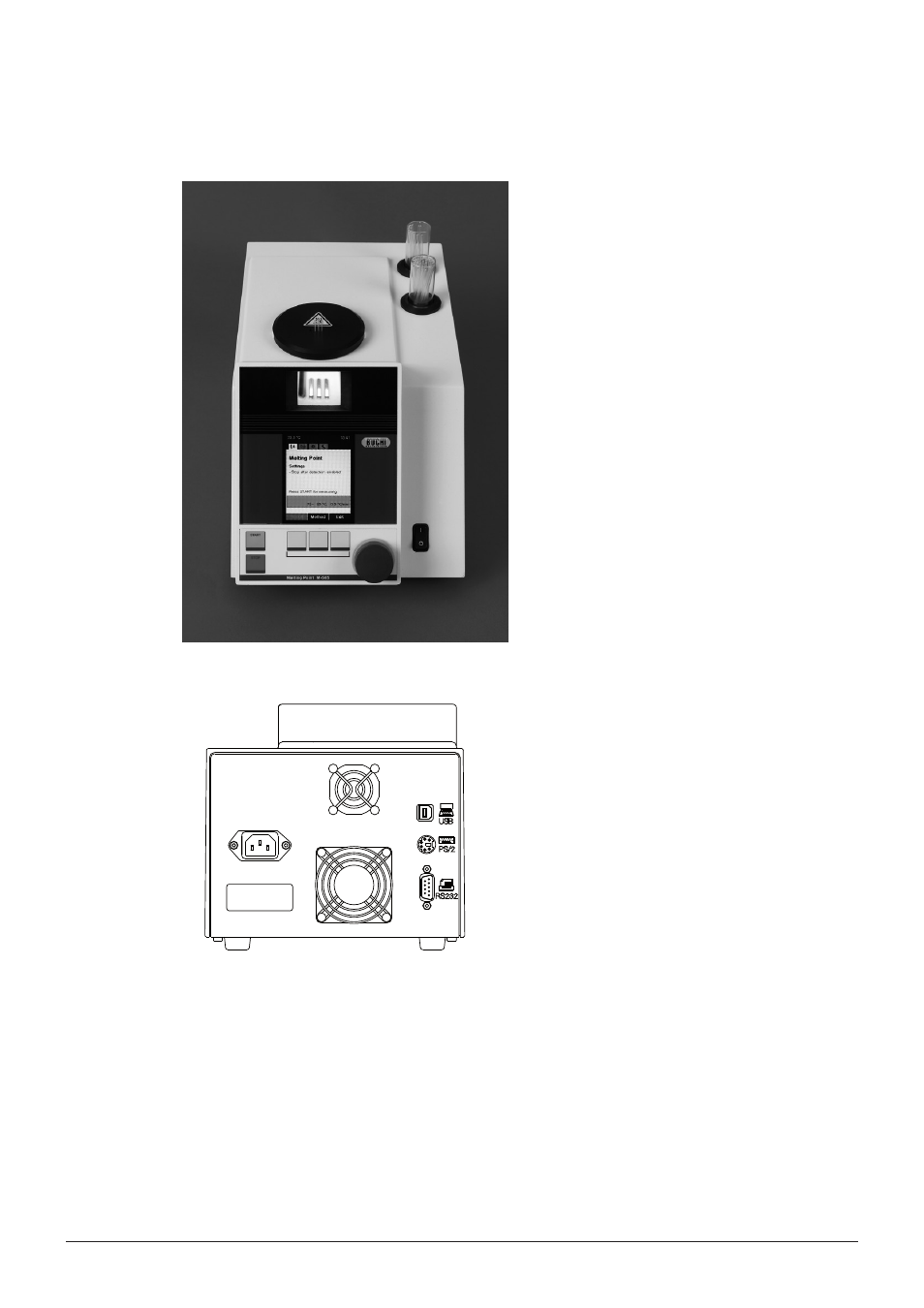

Fig. 4.4: Front view
RS232
PS/2
USB
b
c
d
e
a
f
a Mains plug
b PS/2 connection for keyboard
c RS 232 connection for serial printer
d USB connection to the PC if software Melting
Point Monitor is used, needed for service
e Housing cooling fan
f Heating block cooling fan
Fig. 4.5: Rear view
