22 AN-16/
o
o
utput
M
odule
u
ser
G
uide
16-Channel Send/Return System
The 16 x 16 configuration has sixteen inputs and sixteen outputs on each
side of the digital snake.
Using this configuration, each side of the digital snake has one AN‑16/i Input
Module and one AN‑16/o Output Module. Sixteen channels of audio move in
each direction over a single Cat‑5e cable.
AN-16/o AN-16/i
16 Channels In 16 Channels Out
AN-16/o AN-16/i
16 Channels Out 16 Channels In
A-Net
A-Net Expansion
Each side sends and receives 16 channels.
As in the previous example, the A‑Net Expansion jack is used to combine the
A‑Net data from two devices for transmission down one cable.
Front-of-house Stage
Channels 1-16
Channels 17-32

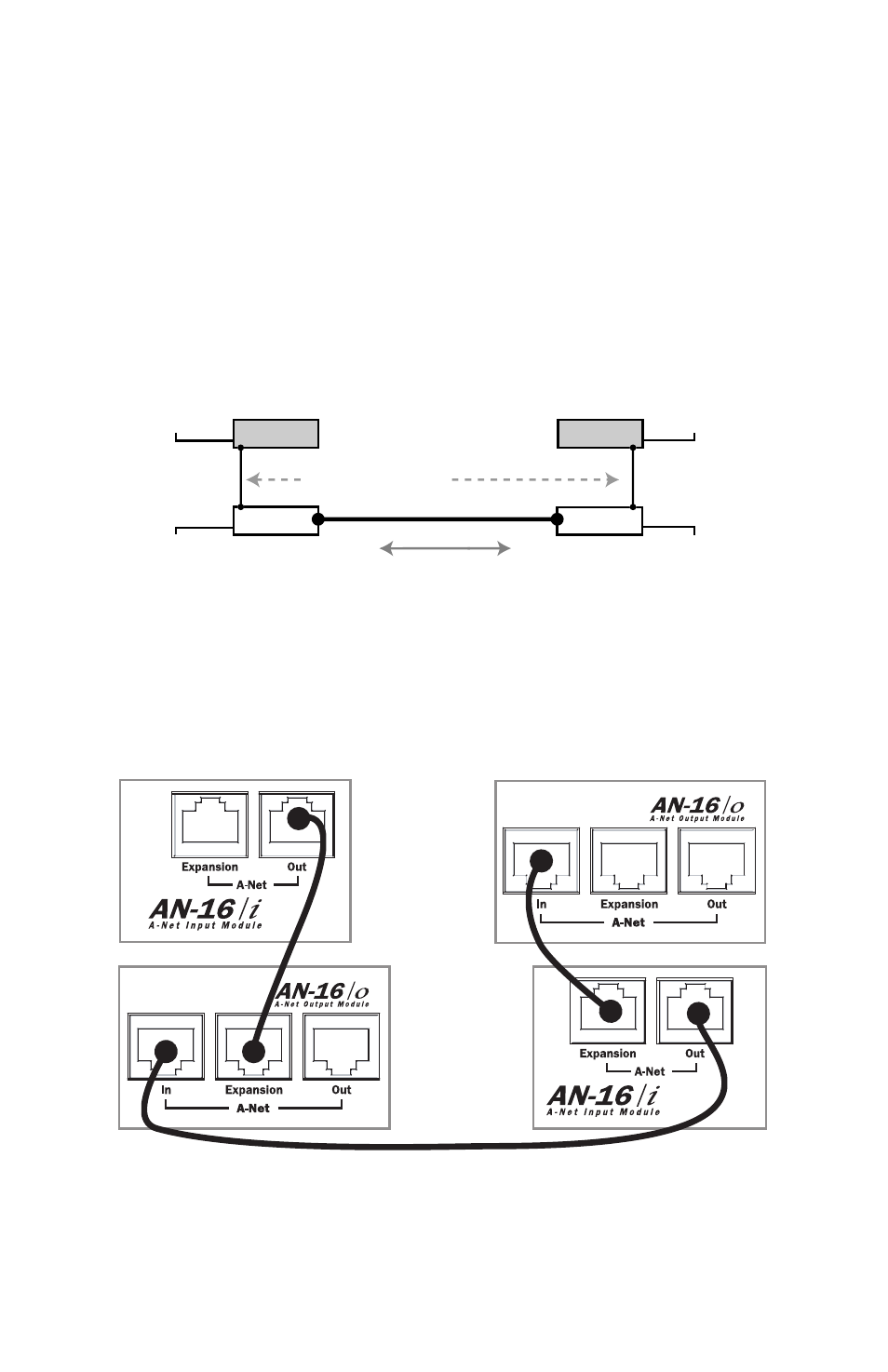

Cable connections for a 16 x 16 system; any version of the AN-16/o Output
Module can be substituted here.
