9
LEGEND
TXV — Thermostatic Expansion Valve
NOTES:
1. Dimensions in [ ] are in millimeters.
2. Direction of airflow.
3. Recommended clearance:
• Rear: 3 in. [914 mm] (2 ft, 6 in. [762 mm]
with electric heat accessory)
• Front: 2 ft, 6 in. [762 mm]
• Right Side: 2 ft, 6 in. [762 mm]
• Left Side: 2 ft, 6 in. [762 mm]
• Local codes or jurisdiction may prevail.
4. Liquid piping not supplied by Carrier.
5. Duct flange is factory supplied and field
installed.
UNIT
UNIT WEIGHT
lb (kg)
40RUA07 381 (173)
40RUA08 385 (175)
40RUA12 405 (184)
40RUQ07 385 (175)
40RUQ08 385 (175)
40RUQ12 427(194)
40RUS08 390 (177)
40RUS12 391 (177)
C10679

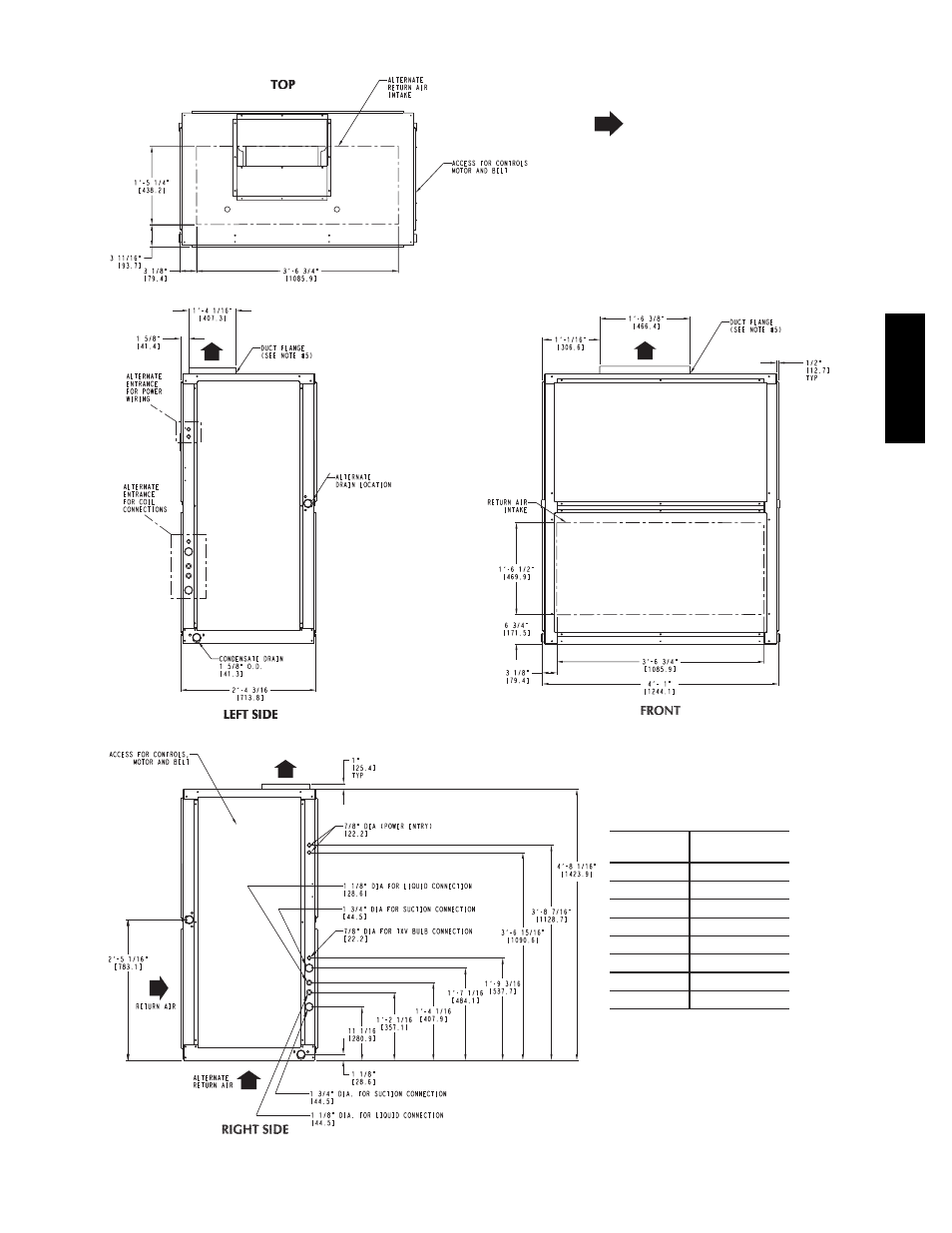

Fig. 1 -- Dimensions – Sizes 07 -- 12
40RU
