10
LEGEND
TXV — Thermostatic Expansion Valve
NOTES:
1. Dimensions in [ ] are in millimeters.
2. Direction of airflow.
3. Recommended clearance:
• Rear: 3 in. [914 mm] (2 ft, 6 in. [762 mm]
with electric heat accessory)
• Front: 2 ft, 6 in. [762 mm]
• Right Side: 2 ft, 6 in. [762 mm]
• Left Side: 2 ft, 6 in. [762 mm]
• Local codes or jurisdiction may prevail.
4. Liquid piping not supplied by Carrier.
5. Duct flange is factory supplied and field
installed.
713 (323)
661 (300)
UNIT
UNIT WEIGHT
lb (kg)
40RUA14
40RUA16
40RUQ16 670 (304)
685 (331)
40RUS16 677 (307)
40RUS14
C10680

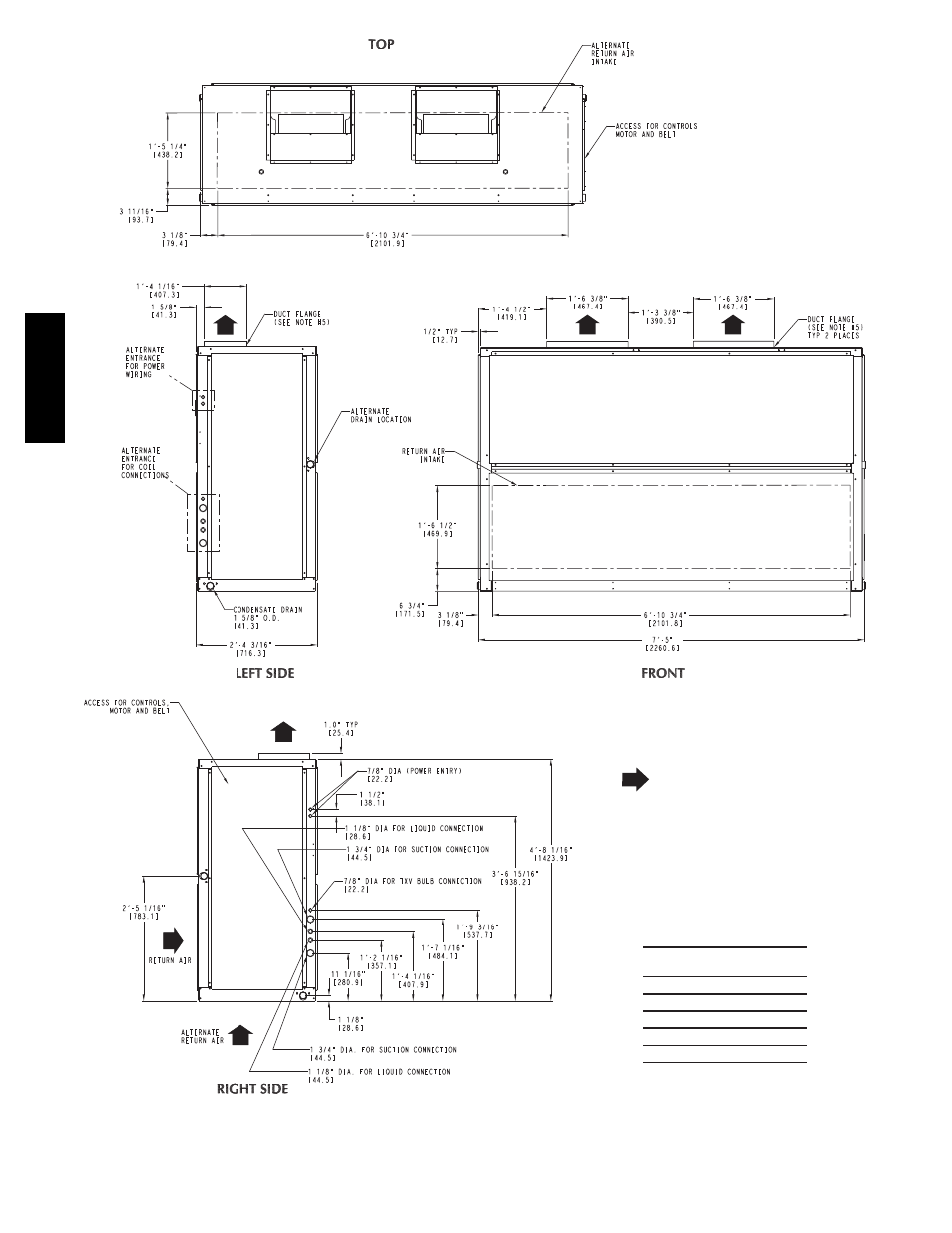

Fig. 2 -- Dimensions – Sizes 14 and 16
40RU
