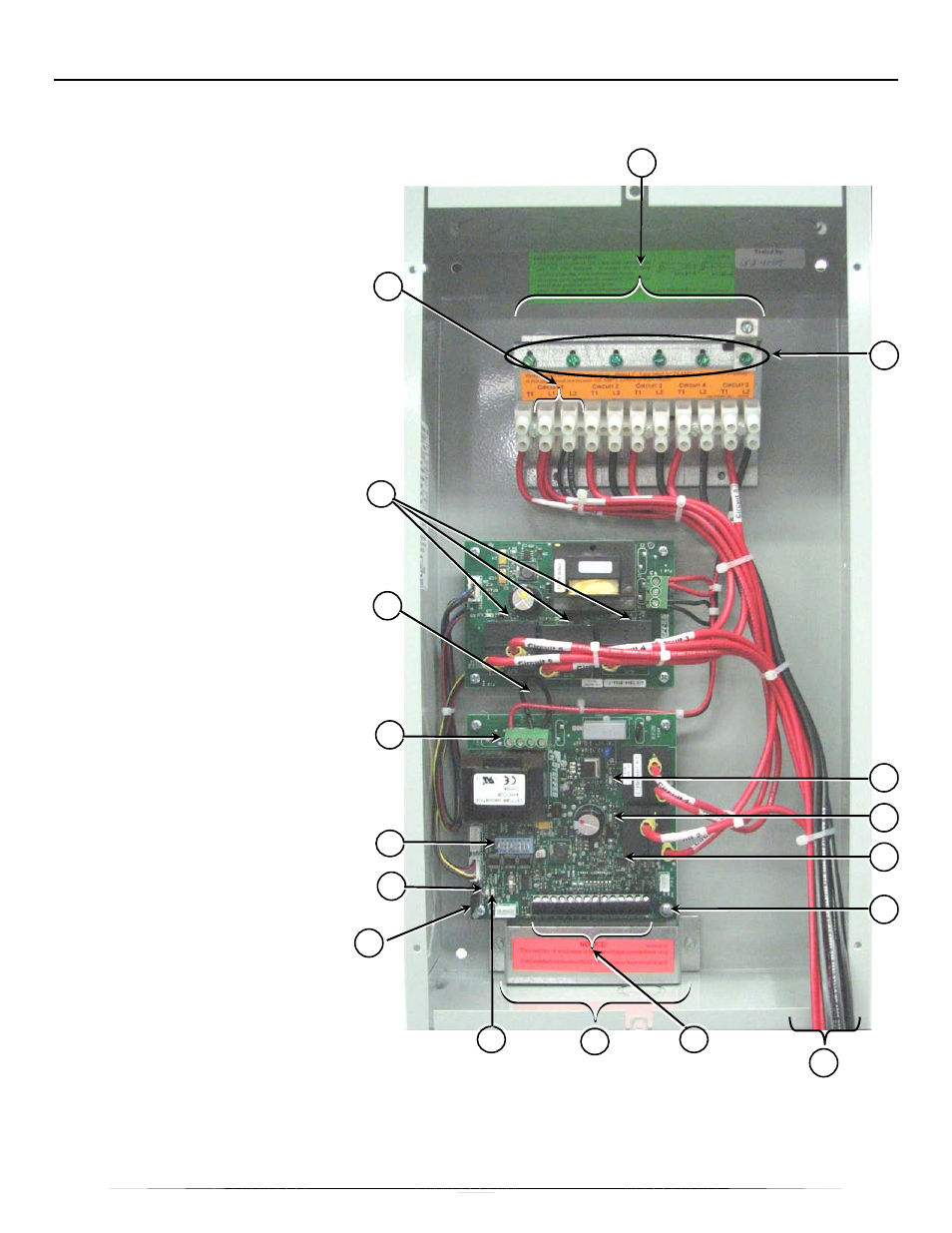

COMPONENT LOCATION 5-POLE INDOOR
Use this illustration to familiarize yourself with the location of parts you will use as the transceiver is installed,
set up, and its operation checked.
1 Line Voltage Select Jumper
[Page 11]
2 Relay #1 LED (marked "Relay 1")
[Page 17]
3 Relay #2 LED (marked "Relay 2")
[Page 17]
4 Load Connection Area [Page 11]
5 Transmit/Receive Jumper
("TR/RC") [Page 13]
6 SecureGround™ Ground Bond
Screw [Page 11]
7 Controlled Load Line Voltage
Conductors [Page 12]
8 PCB Line Voltage Conductor
“Control Circuit” [Page 11]
9 Low Voltage Ground Screw
10 Security Lockout/Seal Loop (N/A
on Indoor Enclosure)
11 Low Voltage Terminal Block
[Page 13]
12 Temperature Sensing
Thermistor (N/A on Indoor
Enclosure. Install outdoor
sensor if desired.) [Page 13]
13 Low Voltage Connection Area
[Page 13]
14 Outside Temperature Indicator
LED ("L3") [Page 17]
15 PLC Signal Indicator LED ("L4")
[Page 17]
16 DIP Switches [Page 14-15]
17 PCB Line Voltage Terminal
Block [Page 11]
18 Relay LED’s for expansion board
relays [Page 17]
19 THER Jumpers – Must be ON for
all Transceivers
