8

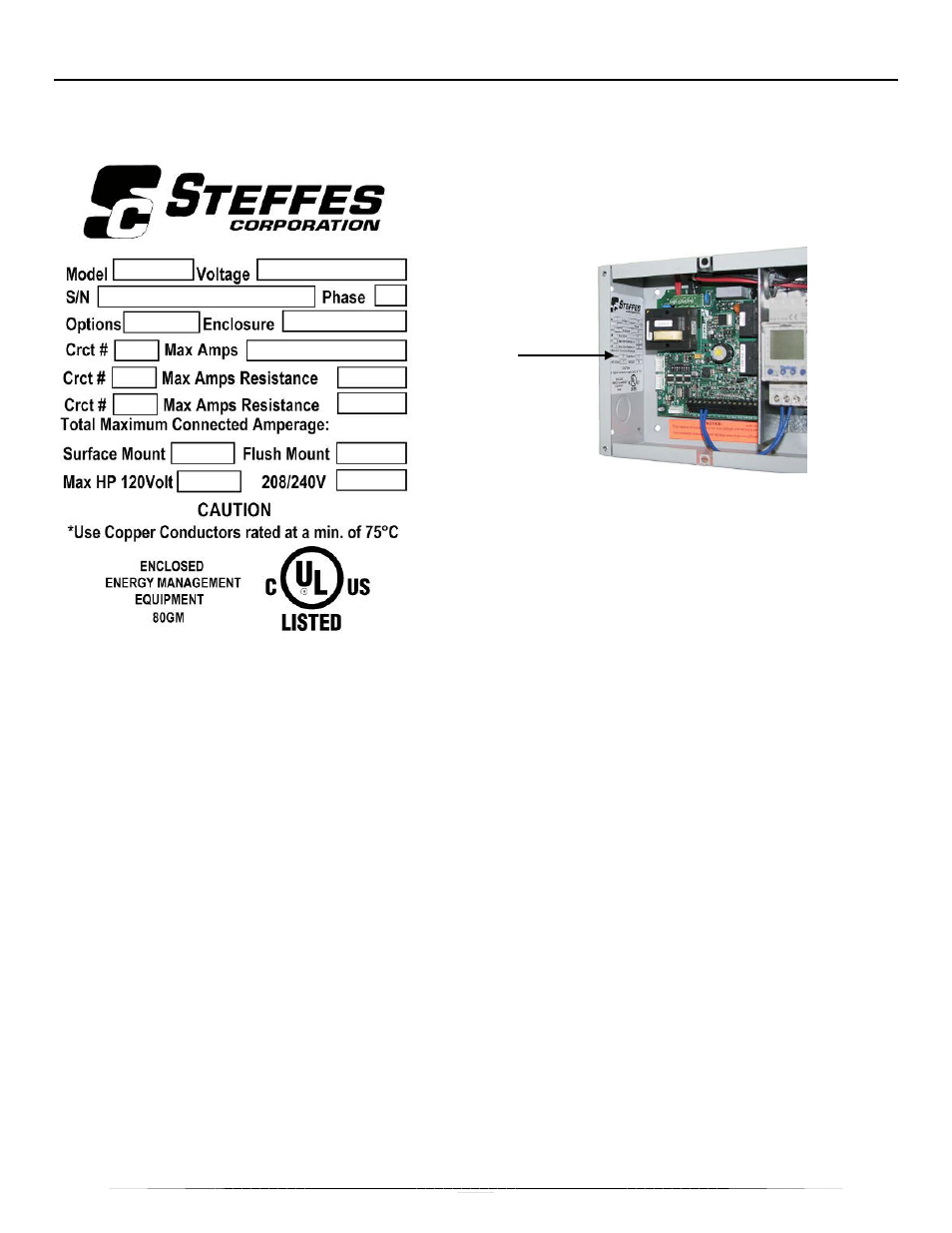

UNIT IDENTIFICATION LABEL
The unit identification label shown is a sample. The actual unit identification label is located inside the
transceiver and contains the following information:
1 Model Number (TR + Number of Relays)
2 Operation Voltage(s)
• “208/240”
• “120”
3 Serial Number
4 Electrical Phase
• 1
• 3
5 Options (Includes Software Version)
• T = Time Clock
• C = Current Transformer
• W = Pre-Wired
6 Enclosure Type
• I = Indoor
• R = Rainproof
7 Circuit # for Circuit Board
8 Maximum Amperage for Circuit Board:
• Power Input = 0.2
• Time Clock = N/A
9 Relay Circuit Number
10 Maximum Amperage Load for Relay
11 Maximum Connected Amperage for Surface
Mount Installation
12 Maximum Connected Amperage for Flush Mount
Installation (Indoor Enclosure Only)
13 Maximum Controlled Electric Motor Load when
powered with 120 VAC
14 Maximum Controlled Electric Motor Load when
powered with 208/240 VAC
Unit
Identification
Label
3
1
4
7
9
6
9
11
13 14
12
8
10
5
2
10
