ROOM SETTING
A green bar will illuminate next to ROOM SETTING on the MODE
digit when the room temperature set point is being adjusted. (See
Figure 5.) The set point can range from 45
o F (7.2 o C) through 85 o F
(29.4 o C).
STORAGE SETTING
This is only applicable when using manual charge control. A green
bar will illuminate next to STORAGE SETTING (on the MODE
digit) which indicates the storage level set point can be adjusted.
(See Figure 6.)
Left Indicator Light
Illuminates green whenever the heating elements are on.
Up Arrow Button
Increases room temperature set point. It is also used to scroll up-
ward when viewing or adjusting the heater's operational functions.
Down Arrow Button
Decreases room temperature set point. It is also used to scroll
downward when viewing or changing the heater's operational func-
tions.
Right Indicator Light
Illuminates green continuously if automatic brick core charge regula-
tion is being utilized.
TEMPERATURE
т с
M
STEFFES
ROOM
SETTING
STORAGE
SETTING
MODE
MODE TEMPERATURE
ROOM
SETTING

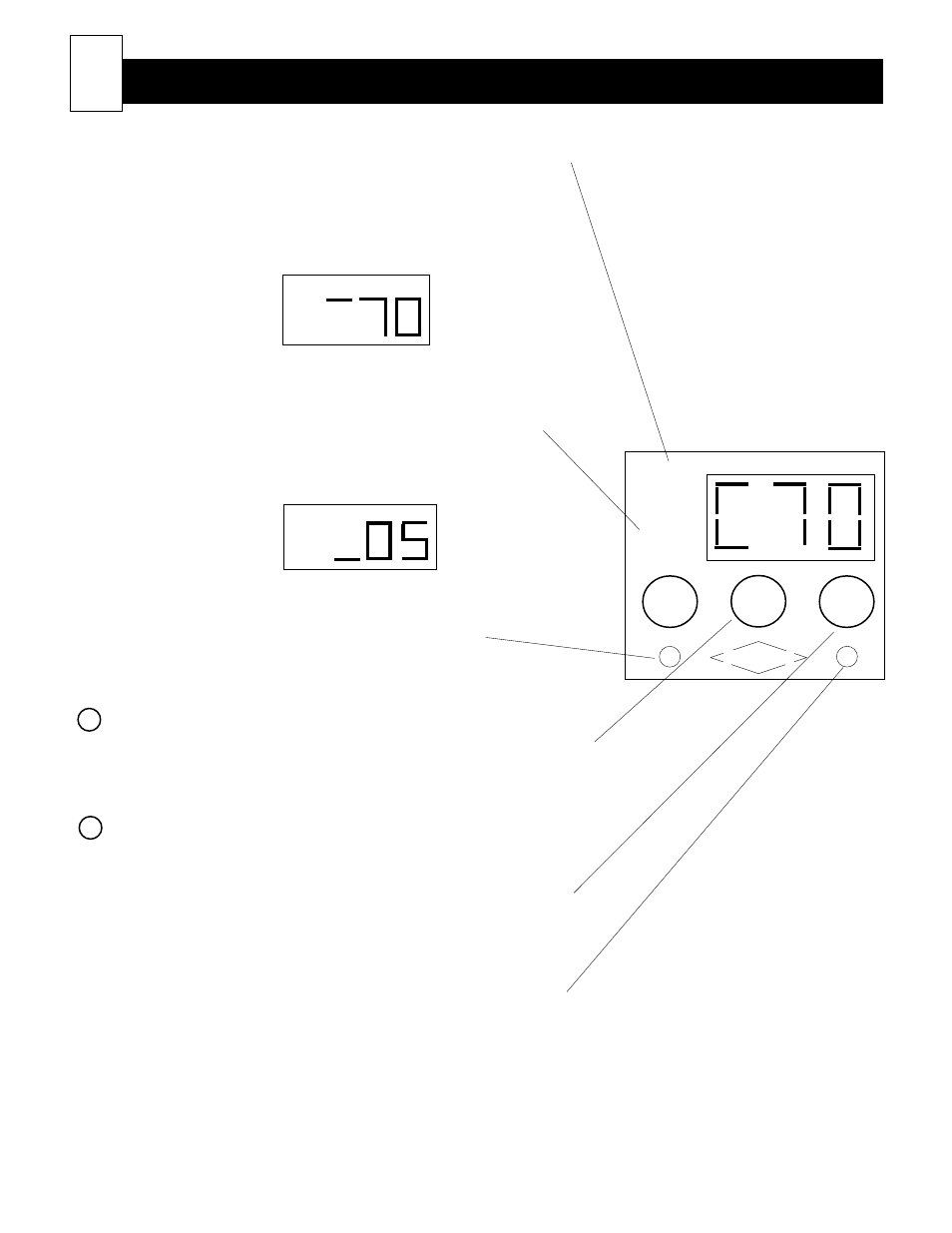

Figure 5
MODE TEMPERATURE
STORAGE
SETTING
Figure 6
