Steffes 1003 - Manual (Page 21)

Plug-in Direct-wired
Models 1002 1002 1003
Length -
inches
27.3 27.3 35.3
Height - inches 25.1 25.1 25.1
Depth - inches 8.4 8.4 8.4
Number of Bricks 8 8 12
Number of Brick Boxes 2 2 3
Weight of Heater - lbs 6 2 6 2 78
Weight of Bricks -
lbs
128 128 192
Installed Weight - lbs 190 190 270
*Element Input - Watts 1320 1800 2700
*Element Voltage 120 240 (standard) 240 (standard)
208 & 277 opt 208 & 277 opt
Storage Capacity
kWh 8.5 8.5 12.75
BTU 29002 29002 43503
TABLE 3
FIGURE 15
When ordering replacement parts, please include model number and serial number of the heater.
* Refer to Unit Identification Label on lower right side of room heating unit for data
specific to your heater. (See Figure 10.)

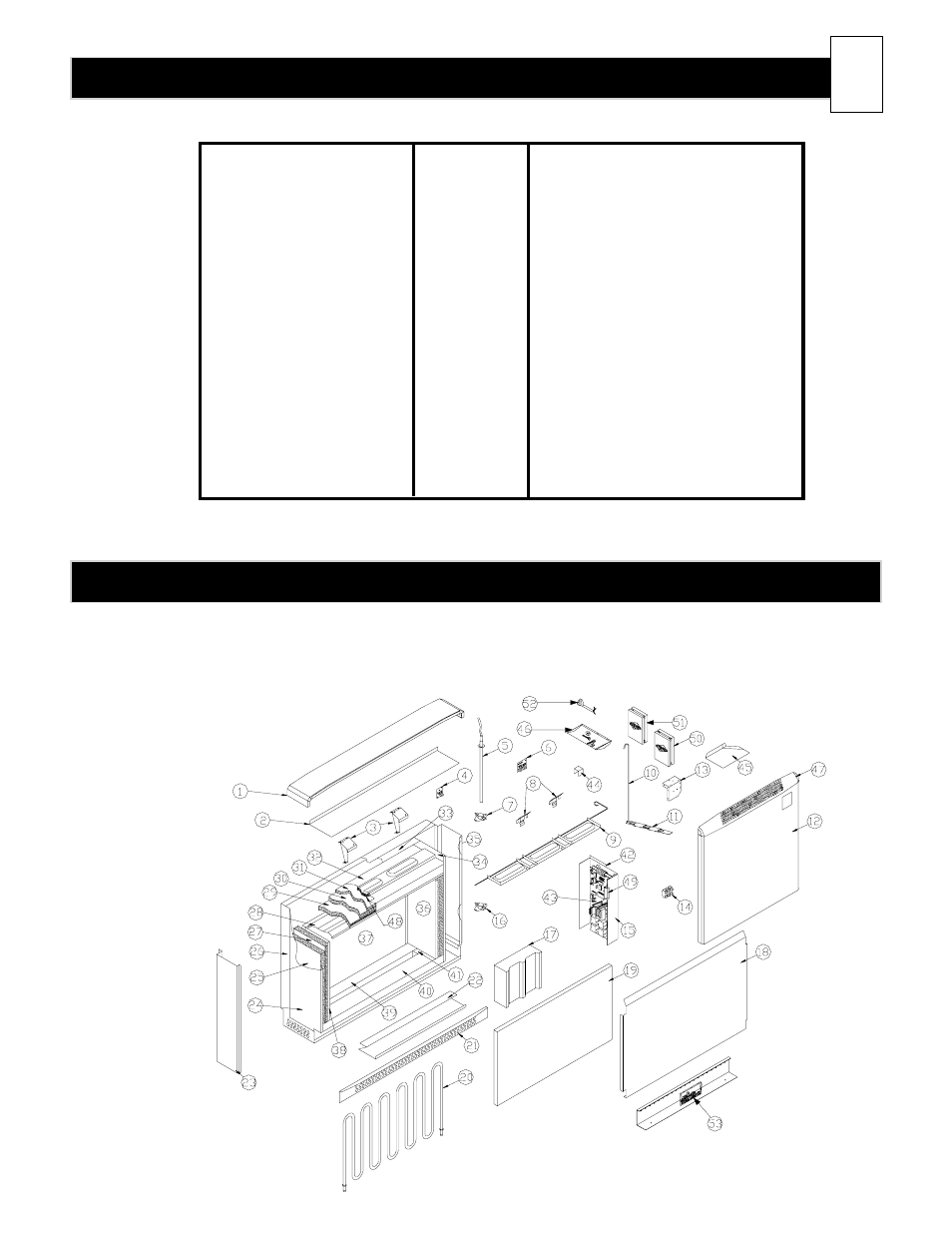

Exploded Exploded Exploded Exploded Exploded V V V V View Heater Diagram iew Heater Diagram iew Heater Diagram iew Heater Diagram iew Heater Diagram
Room Heating Unit Specifications Room Heating Unit Specifications Room Heating Unit Specifications Room Heating Unit Specifications Room Heating Unit Specifications
