ROOM SETTING

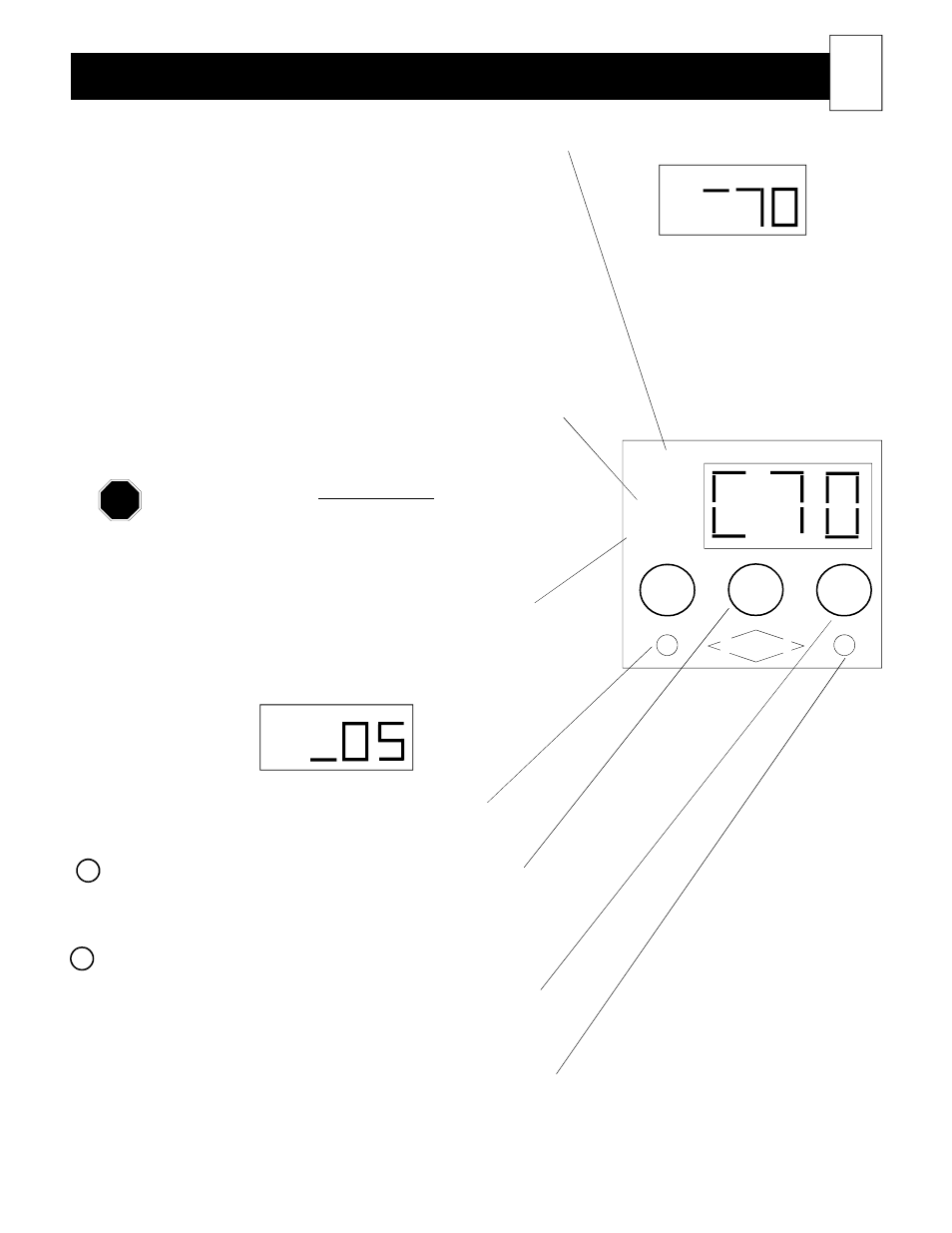

A green bar will illuminate next to ROOM SETTING on the MODE
digit when the room temperature set point is being adjusted. (See
Figure 5.) The set point can range from 45 o F (7.2 o C) through 85 o F
(29.4 o C).
SERVICE LIGHT
This is one of the many built-in safety devices on the heater. This
red light will illuminate whenever the core charging high limit switch
has interrupted power to the heating elements. This interruption may
be the result of not enough clearance between the heater and some
object; or, possibly, there is an operational difficulty within the
heater. If this light is illuminated, the heater will not store heat in
the brick core. It will automatically reset (turn off) when the core
charging high limit switch restores power to the elements. (Refer to
Table 1, Built-in Heater Safety Devices, for more information on the
light and the core charging high limit switch.)
If the light illuminates REPEATEDLY, notify a service
technician.
STORAGE SETTING
This is only applicable when using manual charge control. A green
bar will illuminate next to STORAGE SETTING (on the MODE
digit) which indicates the storage level set point can be adjusted.
(See Figure 6.)
Left Indicator Light
Illuminates green whenever the heating elements are on.
Up Arrow Button
Increases room temperature set point. It is also used to scroll
upward when viewing or adjusting the heater's operational functions.
Down Arrow Button
Decreases room temperature set point. It is also used to scroll
downward when viewing or changing the heater's operational func-
tions.
Right Indicator Light
Illuminates green continuously if automatic brick core charge regula-
tion is being utilized.
TEMPERATURE
  M
STEFFES
ROOM
SETTING
STORAGE
SETTING
SERVICE
MODE
MODE TEMPERATURE
ROOM
SETTING
Figure 5
MODE TEMPERATURE
STORAGE
SETTING
Figure 6


7
Describing The Heater's Display Panel
(cont'd)
NOTE
