INPUT WATTAGE VOLTAGE AMP DRAW
1.32 120 11.0
2.4 240 10.0
3.0 240 12.5
3.6 240 15.0
4.5 240 18.75
4.8 240 20.0
5.4 240 22.5
6.0 240 25.0
7.2 240 30.0
7.5 240 31.25
9.0 240 37.5
(AMP draw is calculated by taking the total input wattage divided by the input voltage.
Allow +/- 5% tolerance at nominal input voltage.)
____ 6. Make certain all fuses and/or circuit breakers are labeled in the distribution panel. Use the Steffes orange
panel label provided in the wall mounting bracket hardware package (53).
This label is important since the heater may be connected to more than one branch circuit.
____ 7. Check all other system controls for proper operation.
____ 8. De-energize the heater. Return the control circuit board (2) to its
original position. Install the painted front panel (18). To assist
in aligning the front panel with the top panel (19) and to make it
easier to install the front panel screws, lifting slots have been

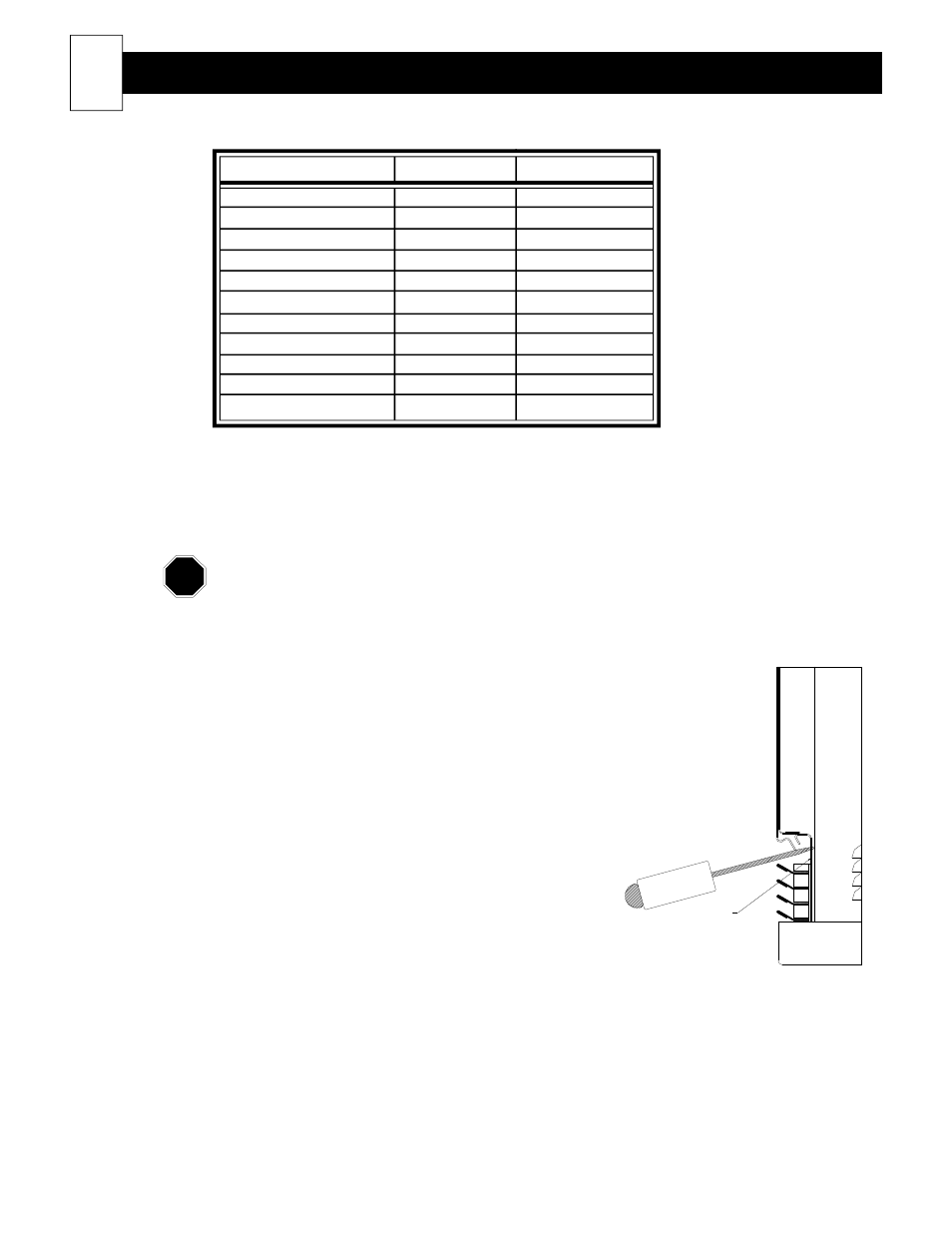

provided in the galvanized base tray (57), one at each end. Place
the tip of a screwdriver in one of these slots and lift upward. (See
Figure 10.) Install the screw. Do the same on the other end. Be
sure to use the plastic grill guard when installing the screws to
protect the grill (10) from being scratched. The grill guard
should be removed after the installation. Energize the system.
____9. Present owner with the manual and warranty information. The
owner's registration card must be completed and returned to
Steffes Corporation to ensure warranty coverage. The owner
should retain the top portion of the card for their records. The
installer should retain the Supplemental Guide.
____ 10. Take the time needed to instruct the owner on how to operate the system. Many service calls with new ETS
systems are a result of owner confusion on equipment operation. The time spent in training will greatly
reduce the chance of a call back.
Installing The Heater
(cont'd)
16
FIGURE 10
GALVINIZED
BASE TRAY
S
ID
E
V
IE
W
CHARGING CIRCUIT AMPERAGE DRAW
NOTE
