When reproducing a tape from a video camera;

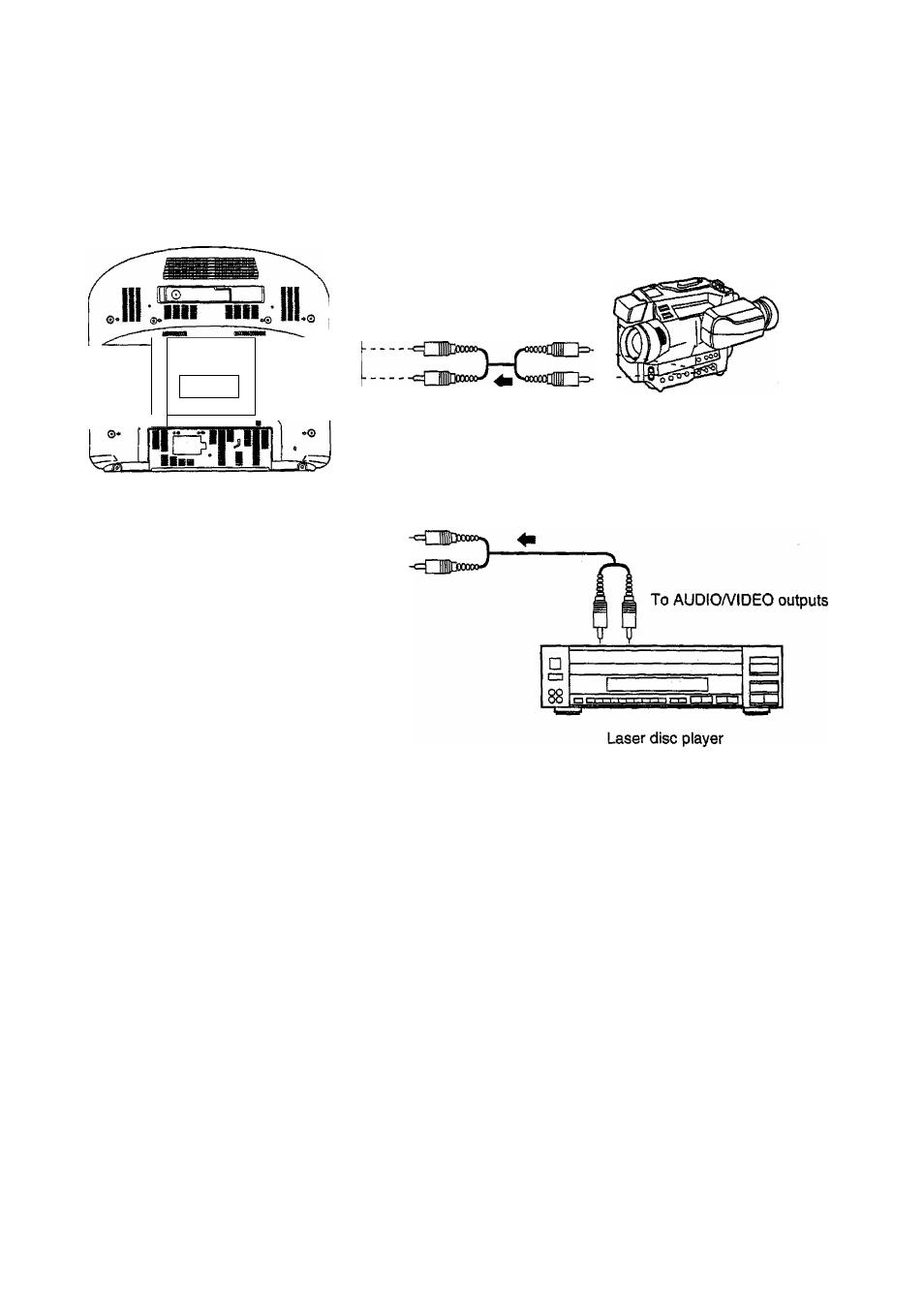

How to connect the “AV” (Video and Audio) input Terminals to other equipment.

iliiil

Jilll

Hill

illlll

lllllll
lllllll

AUDIO VIDEO

To AUDIO/VIDEO outputs

Video camera

When recording a tape from a laser disc player;

Note;
(1) When an AV mode is selected, and that AV mode has no input picture signal, the Background Colour of the TV

screen will change. (When the Blue-Back function is set to the ON condition; refer to pages 44 and 46 for
details.)

(2) Select AV Input by pushing the TV/AV button; refer to page 34.

(3) Refer to the Instruction Manual supplied with each item of other equipment to be connected, for specific

connection and operational details of that equipment.

Playback Operation

1. Select AV Mode.

2. Push the “PLAY” Button on the connected Playback Equipment.
