Installation Guide continued

□ Electrical Connection

• This system is be used only in a 12-volt DC battery system (car) with negative ground.
• Follow the wiring connection diagram. Failure to do so may result in damage to the unit.
• First, connect the extension cord О to the CD changer and then, connect the RCA pin connectors and

the extension cord 8p DIN connector to the CD/cassette receiver. Finally, connect the battery lead (yel

low) to a constant power supply.

• Please carefully read the operating and installation instructions of the respective equipment before con

necting it to this unit.

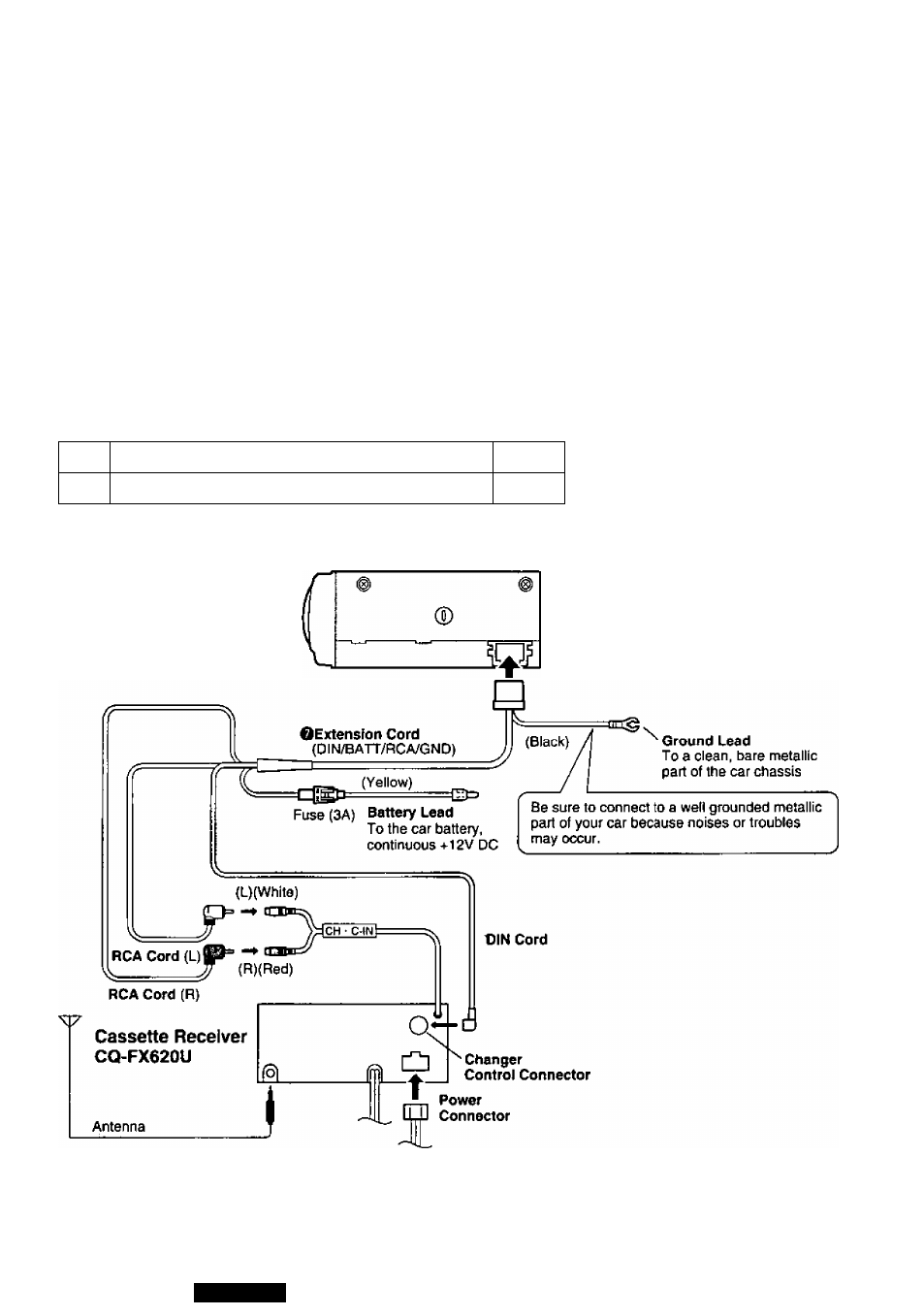

In combination with the cassette receiver (CQ-FX620U)

Wiring Accessory

Description

Q’ty

Extension Cord (DIN/BATT/RCA/GND)

CD Changer
CX-DP88U

CX-DP88U
