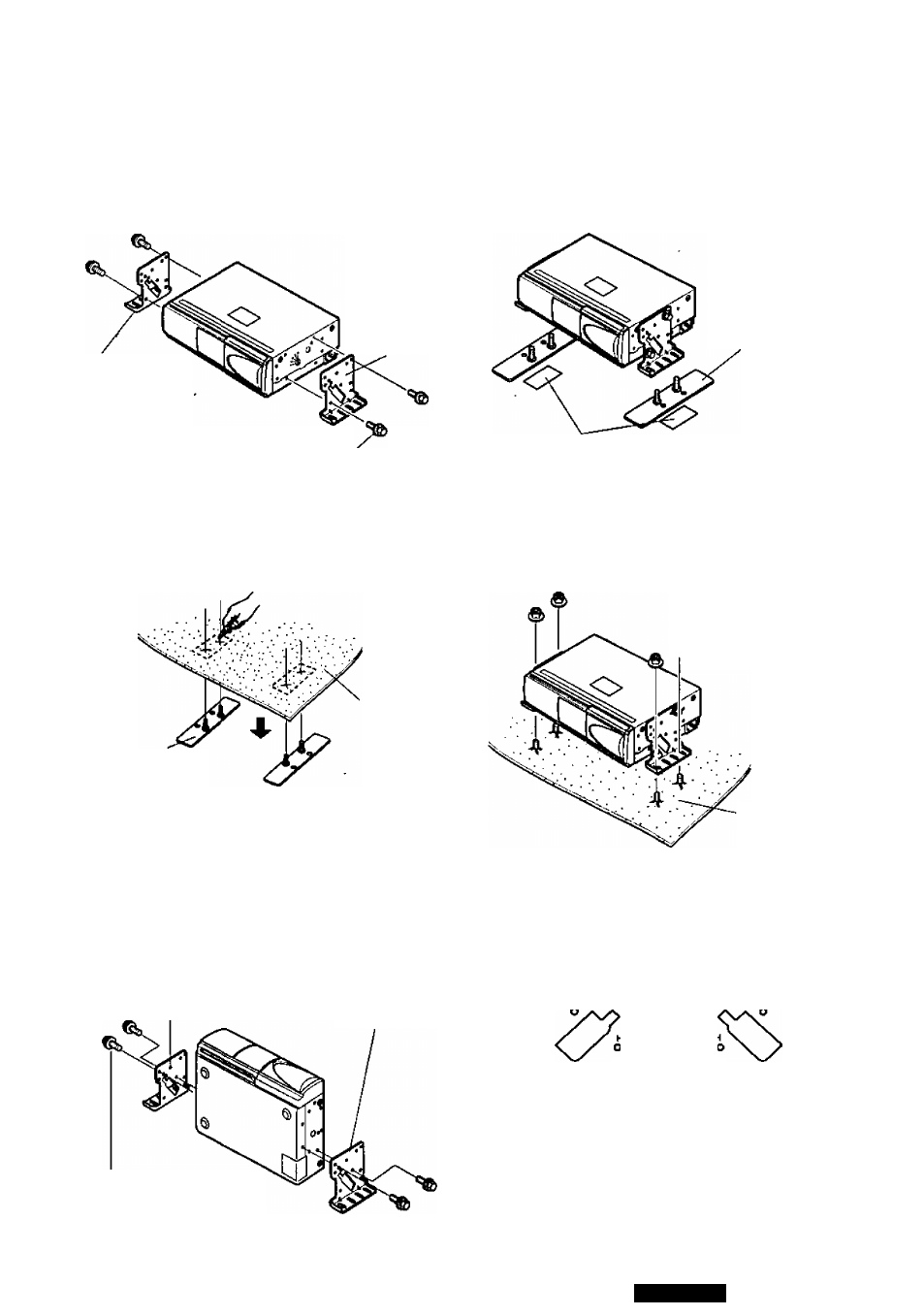

Typical horizontal installation
Mount a mounting bracket (L) or (R) on either
side of the main unit with a hex. bolt together
with double washers (M4 x 8 mm).
O Mounting
bracket (R)
O Mounting
bracket (L)
O Hex. bolt with double wash­
ers (M4 X 8 mm) x 4
Select a location where the unit should be
mounted. Fix the base brackets with a double-
faced adhesive tape.
O Base bracket x 2
@ Double-faced adhesive tape x 2
Use a cutter to cut a small cross in the carpet
in accordance with the locations of the M5
bolts of the base brackets. Mount the unit on the carpet with four hex.
nuts (M5).
O Hex. nut (MS) X 4
Carpet
O
Base bracket x 2
Fix both the base brackets and the double-faced
adhesive tape to a mounting surface below the
carpet.
Carpet
Typical vertical installation
Mount the unit with the mounting bracket on either
side with a hex. bolt with double washers (M4 x 8).
O Mounting bracket (L) O Mounting
bracket (R)
O Hex. bolt with doubie
washers (M4 x 8 mm) x 4
Relationship between
mounting holes and angles
i
Vo S R
Mounting bracket (L) Mounting bracket (R)
The relationship between mounting holes and
angles of the mounting brackets (L and R) is illus­
trated above. Symbols corresponding to the mount­
ing angles are marked near the respective holes.
Select the correct holes in accordance with the
mounting angles to be used.
