Figure 2 – Connect Tech BLUESTORM UNIVERSAL PCI CTIM-00015 User Manual

Page 9

background image

BlueStorm Installation Guide, Connect Tech Inc.

Revision 0.08

9

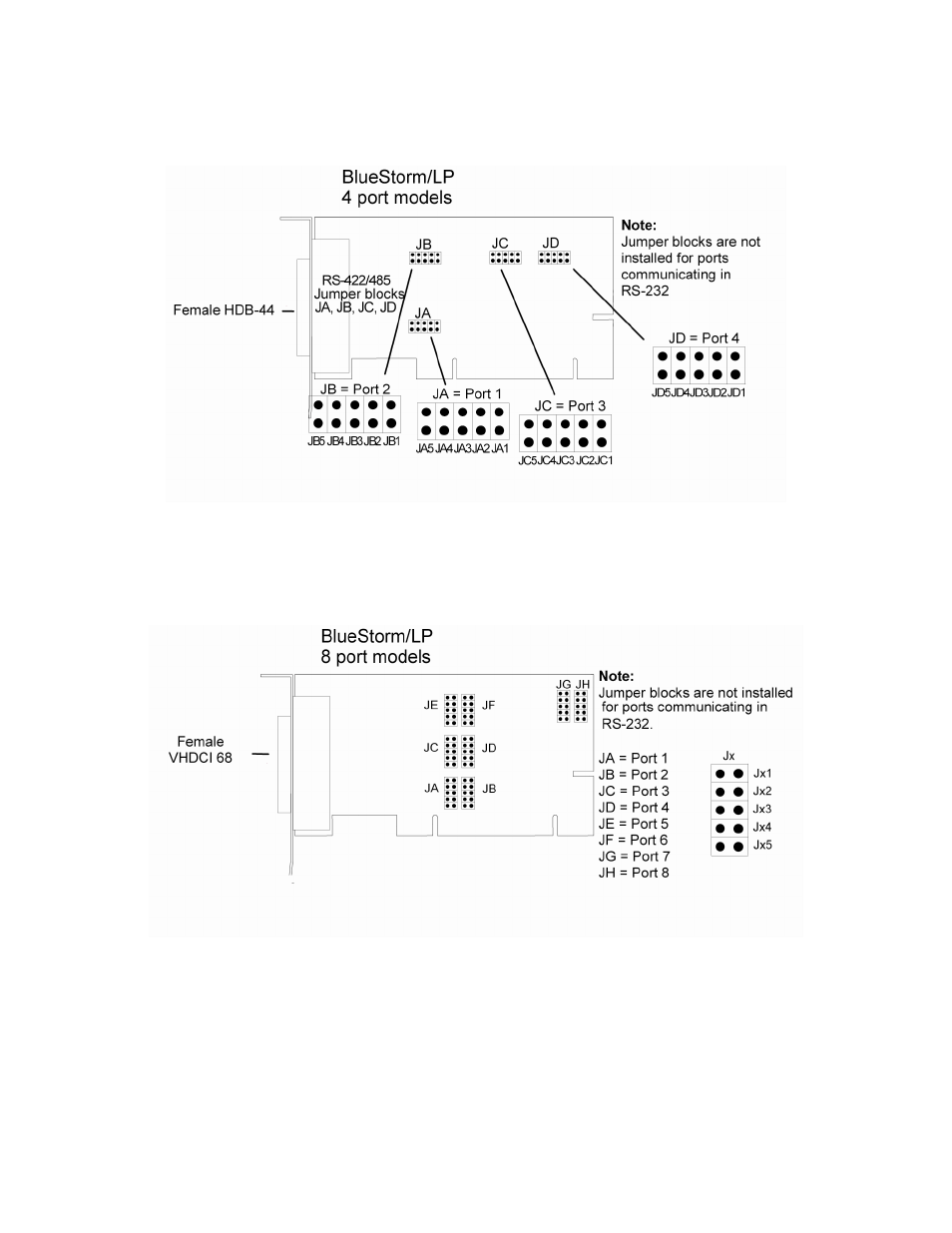

Figure 2: BlueStorm/LP jumper block locations, 4 port models

Figure 3: BlueStorm/LP jumper block locations, 8 port models
