Connect Tech BLUESTORM UNIVERSAL PCI CTIM-00015 User Manual
Page 19
BlueStorm Installation Guide, Connect Tech Inc.
Revision 0.08
19

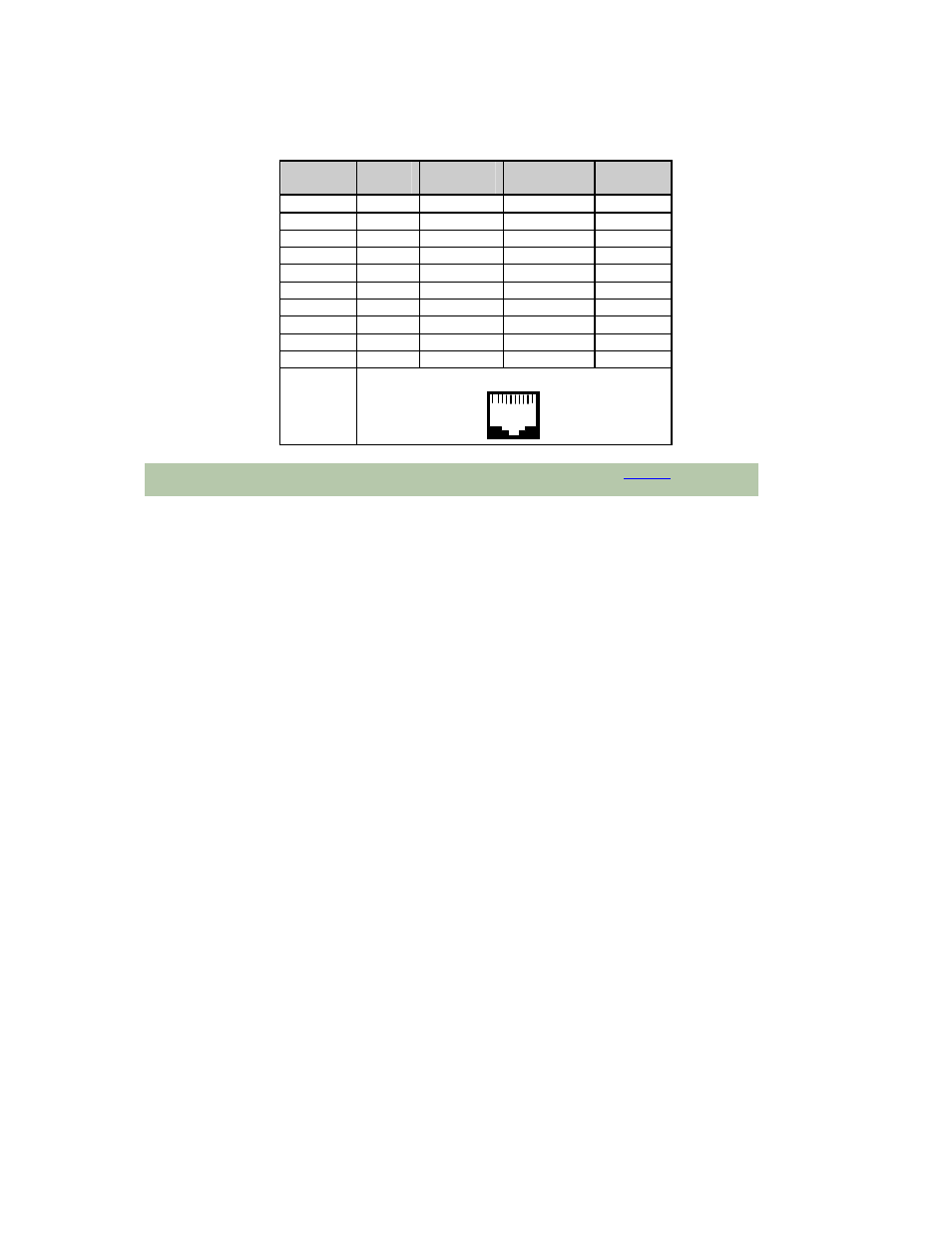

Table 5: RJ-45 Pinouts for BlueStorm/SP Opto (4 port connector)
Pin No.
RS-232
Signal
Direction
RS-422/485
Signal
Direction
1
N/C
no connect
RTS (-)
output
2
N/C
input
RxD (+)
input
3
RTS
output
RTS (+)
output
4
SG
signal gnd
SR
signal ref.
5
TxD
output
TxD (+)
output
6
RxD
input
RxD (-)
input
7
Gnd
ground
Gnd.
ground
8
CTS
input
CTS (+)
input
9
N/C
no connect
TxD (-)
output
10
N/C
no connect
CTS (-)
input
RJ-45 connector
1
10
Cable CAGRJ4509 will send the signals to eight DB-9 male connectors. See
pinouts
