BlueStorm Installation Guide, Connect Tech Inc.
10 Revision 0.08

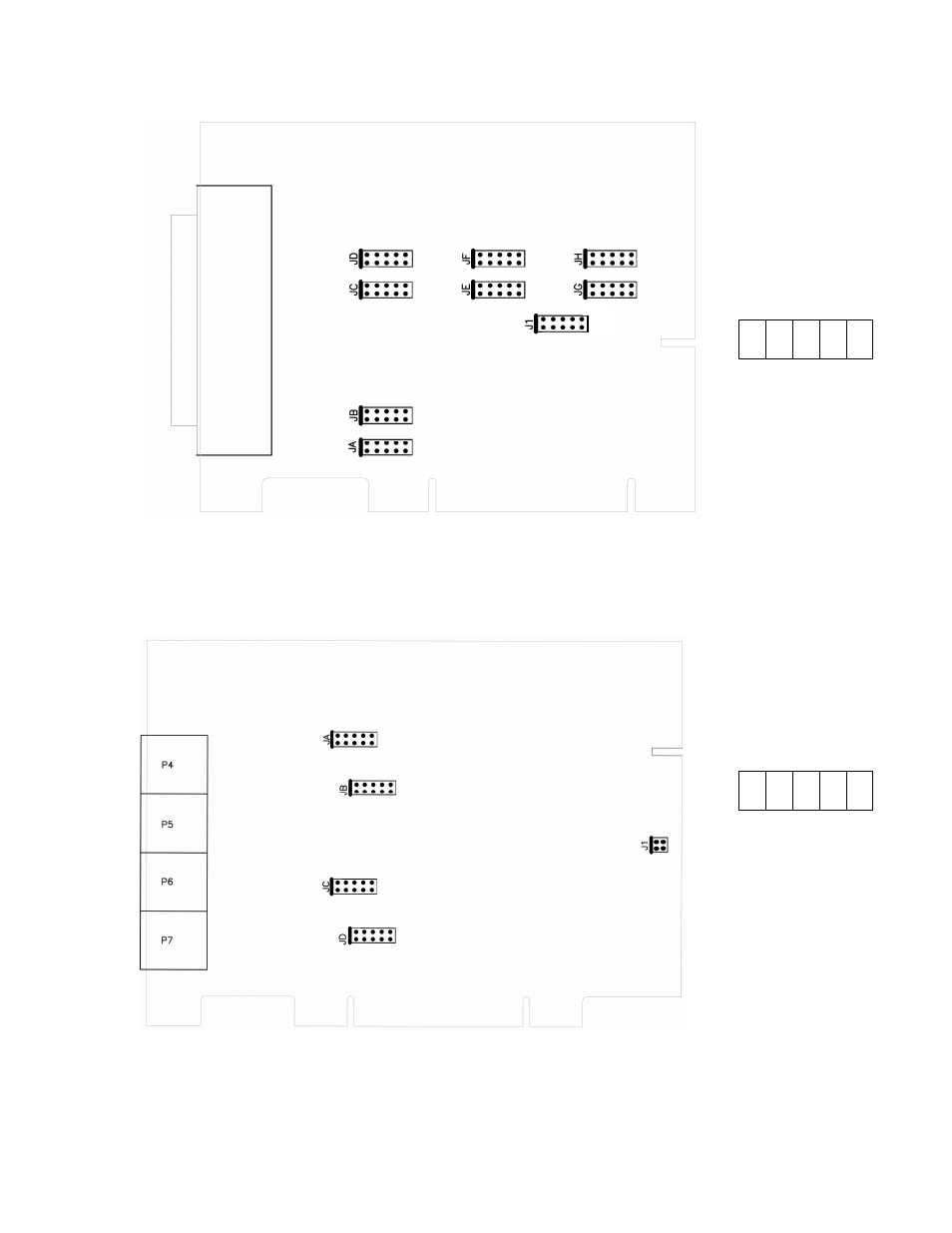

Figure 4: BlueStorm/SP jumper block locations, 8 port models
Figure 5: BlueStorm/SP Opto jumper block locations, 4 port models
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Female
HDB-78
4 x RJ-45
Jx
Jx1 Jx2 Jx3 Jx4 Jx5
JA = Port 1
JB = Port 2
JC = Port 3
JD = Port 4
JE = Port 5
JF = Port 6
JG = Port 7
JH = Port 8
Jx
Jx1 Jx2 Jx3 Jx4 Jx5
JA = Port 1
JB = Port 2
JC = Port 3
JD = Port 4
JE = Port 5
JF = Port 6
JG = Port 7
JH = Port 8
Note:
Jumper blocks are not installed
for ports communicating in
RS-232.
Note:
Jumper blocks are not installed
for ports communicating in
RS-232.
